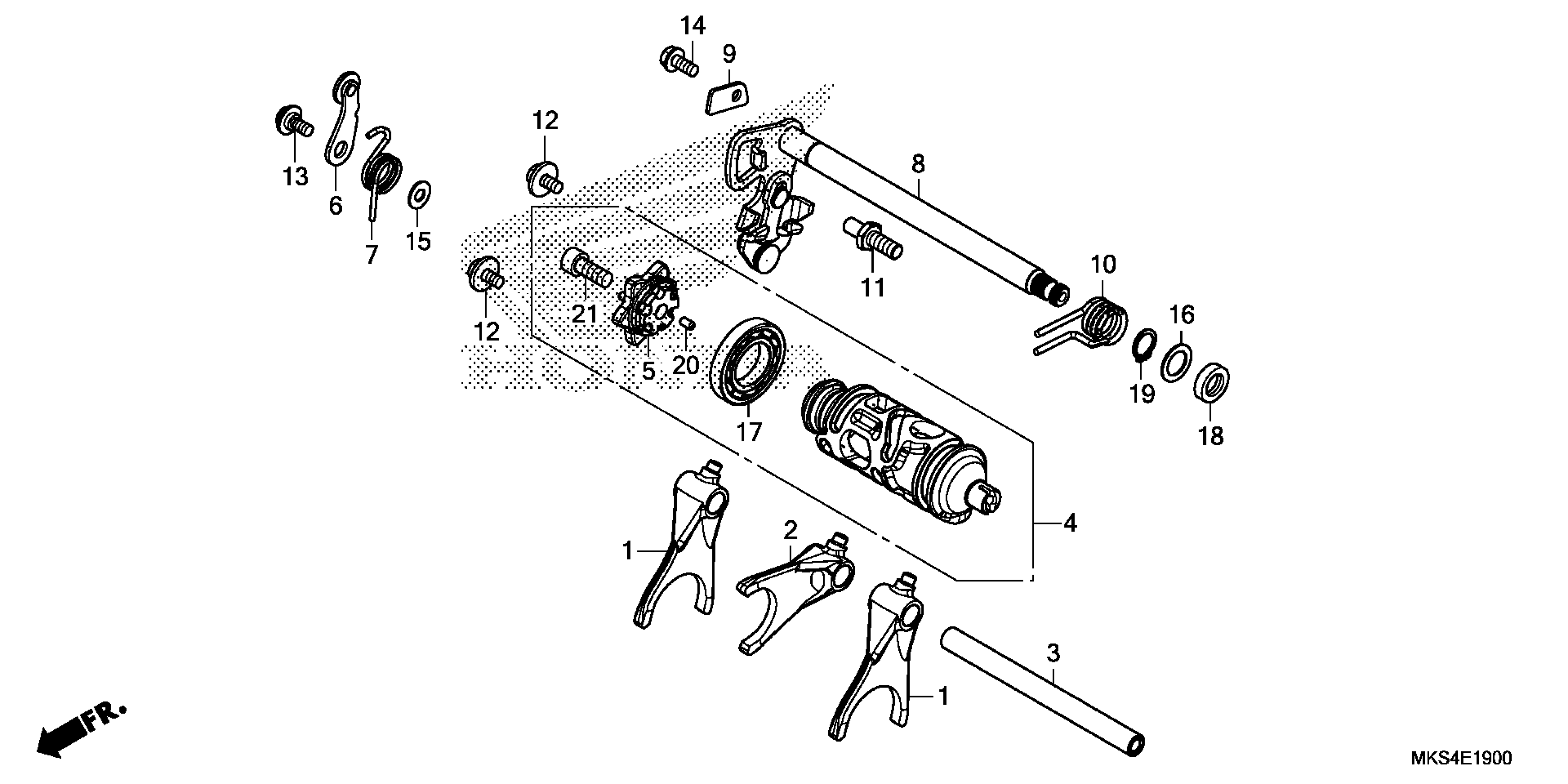

Honda CRF1100A3AC (21) MOTORCYCLE, JPN, VIN# JH2SD101-MK100001 GEARSHIFT DRUM (1) Diagram

FORK, GEARSHIFT

24211-MJP-G50

$54.39

FORK, CENTER GEARSHIFT

24212-MJP-G50

$60.65

SHAFT, GEARSHIFT FORK

24213-MKS-E00

$16.41

DRUM, GEARSHIFT

24310-MKK-D01

$234.97

CENTER, SHIFT DRUM

24315-MGZ-J00

$33.12

STOPPER, GEARSHIFT DRUM

24430-MKK-D00

$24.13

SPRING, GEARSHIFT DRUM STOPPER

24435-MJP-G50

$3.43

SPINDLE, GEARSHIFT

24610-MKS-E00

$87.96

PLATE, SPINDLE SETTING

24613-MJP-G50

$2.59

SPRING, GEARSHIFT RETURN

24651-KR3-000

$4.94

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$7.64

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$4.76

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-MR5-670

$2.12

BOLT, FLANGE (6X14)

90030-GHB-630

$2.03

WASHER, DRUM STOPPER

90417-360-000

$1.58

WASHER (14MM)

90451-155-000

$3.52

BEARING, RADIAL BALL (25X47X8)

91007-MGS-D21

$15.75

BEARING, RADIAL BALL (25X47X8) This part replaces 91007-MGS-D31.

91007-MGS-D21

$15.75

OIL SEAL (14X22X5)

91203-KK3-830

$3.55

CIRCLIP (OUTER) (14MM)

94510-14000

$0.93

ROLLER (4X8)

96220-40080

$0.46

BOLT, SOCKET (8X20)

96600-08020-10

$1.94
