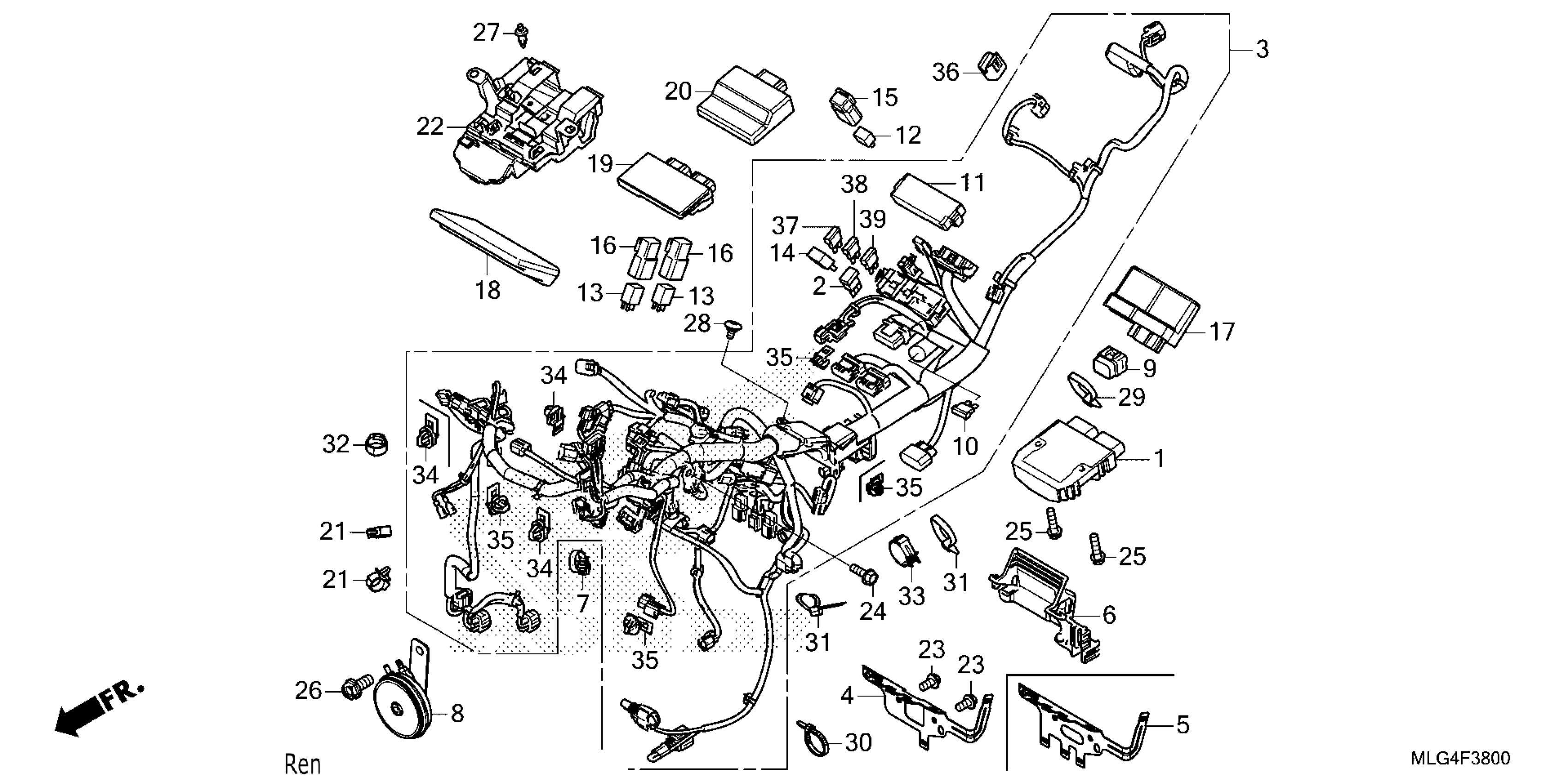

Honda CRF1100A2AC (23) MOTORCYCLE, JPN, VIN# JH2SD101-PK300001 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$194.27

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MLG-A40

$1,450.51

STAY, HARNESS CLIP

32155-MKK-D00

$14.51

COVER, CONNECTOR

32159-MJP-G50

$5.98

BAND, WIRE HARNESS

32161-GFL-J41

$1.85

HORN ASSY. (HIGH)

38110-MBV-712

$85.21

COVER ASSY., FUSE (7.5A)

38216-ZY3-801

Unavailable

FUSE, BLADE (3A)

38230-ML8-000

Unavailable

COVER (UPPER)

38255-MKS-E00

$12.86

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.80

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.86

PGM-FI UNIT This part replaces 38770-MLG-A41.

38770-MLG-A43

$1.00

CONTROL UNIT, BODY

38950-MKS-A02

$389.56

TRAY, BODY CONTROL UNIT

80109-MKS-E00

$26.74

BOLT, FLANGE (6X12)

90025-GHB-620

$2.23

BOLT, FLANGE (6X14)

90030-GHB-630

$2.23

BOLT, FLANGE (6X22)

90030-GHB-670

$2.18

BOLT, FLANGE (8X14)

90036-GHB-630

$2.23

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.48

BAND, WIRE HARNESS

90620-SB2-003

$24.63

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

CLIP, CABLE (30MM)

90690-GHB-681

$2.92

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$23.15

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

FUSE, MINI (20A)

98200-42000

$1.49
