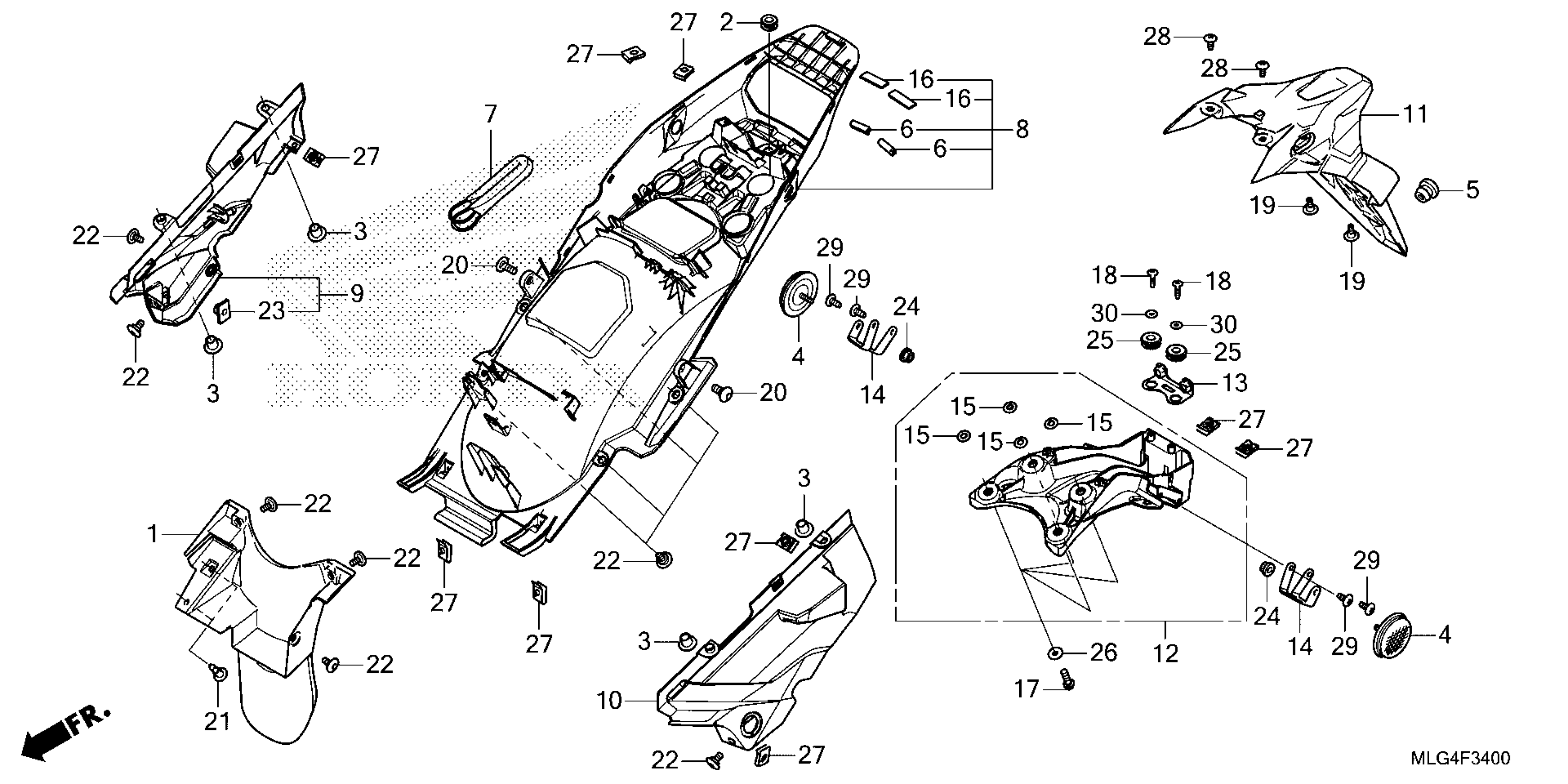

Honda CRF1100A2AC (23) MOTORCYCLE, JPN, VIN# JH2SD101-PK300001 REAR FENDER (1) Diagram

#

Description
Price

1

SPLASH GUARD

17218-MKS-E00

$51.88

2

RUBBER, MOUNTING

19639-GBC-000

$1.28

3

COLLAR, TAILLIGHT

33712-GC6-000

$2.80

4

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

5

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.77

6

PROTECTOR, RUBBER

77212-MFJ-D00

$1.58

7

WIRE, HELMET SET

77236-KAZ-780

$7.89

8

FENDER B, RR.

80105-MKS-E00

$83.72

9

COVER, R. FENDER B

80106-MKS-E00

$22.33

10

COVER, L. FENDER B

80107-MKS-E00

$20.42

11

FENDER A, RR.

80110-MKS-C00

$63.72

12

STAY, FENDER A

80115-MKS-E00

$85.23

13

BRACKET, LICENSE LIGHT

80116-MKS-E00

$6.59

14

STAY, RR. REFLECTOR

80117-MKS-A00

$11.19

15

COLLAR, FENDER

80118-MFJ-D00

$3.86

16

RUBBER, RR. FRAME

80129-MEG-000

$1.30

17

BOLT, FLANGE (6X20)

90020-GHB-660

$2.12

18

SCREW, TAPPING (4X16)

90112-MKA-D80

$2.12

19

SCREW, SPECIAL (5X14)

90113-MGP-D00

$1.86

20

SCREW, SPECIAL (6X14)

90115-MGZ-J00

Unavailable

21

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

22

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.26

23

NUT, SPECIAL (6X7)

90303-HA0-680

$3.57

24

NUT U, FLANGE (6MM)

90305-MKC-A01

$2.41

25

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$2.85

26

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.67

27

NUT, CLIP (5MM)

90677-KAN-961

$3.79

28

SCREW, TAPPING (5X12)

93903-25280

$1.23

29

SCREW, TAPPING (5X12)

93903-35280

$0.75

30

WASHER, PLAIN (4MM)

94103-04700

$0.86
