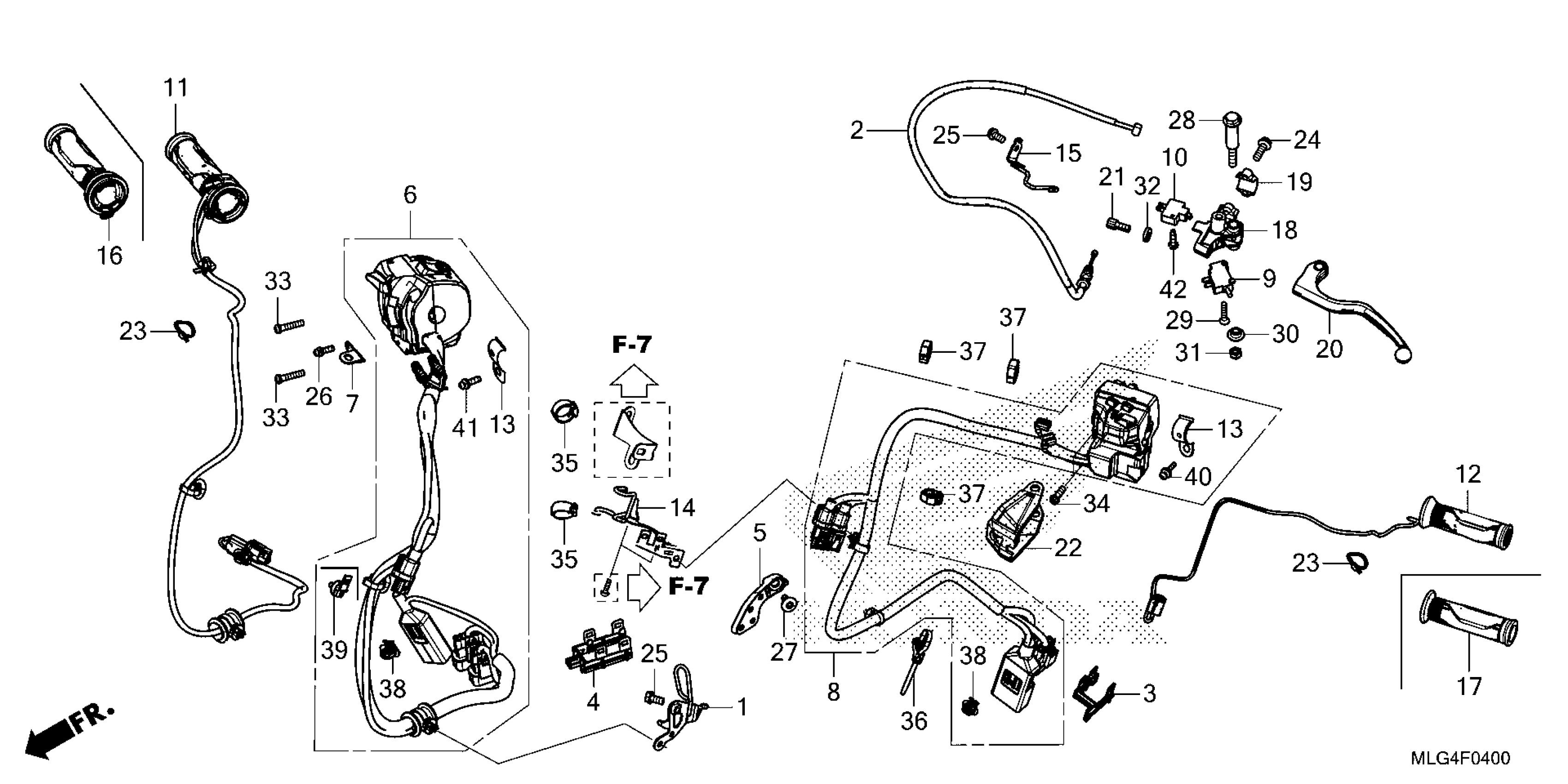

Honda CRF1100A2AC (23) MOTORCYCLE, JPN, VIN# JH2SD101-PK300001 HANDLE LEVER@SWITCH@CABLE (MT) Diagram

GUIDE, CABLE

17925-MKS-E00

$12.41

CABLE, CLUTCH

22870-MKK-D21

$26.16

HOLDER, CONNECTOR

32121-MKK-D00

$4.77

HOLDER, R. CONNECTOR HANDLE

32121-MKS-E01

$5.82

STAY, CLIP

32151-MKK-D00

$8.54

SW UNIT

35135-MLG-E01

$317.05

SWITCH ASSY., TURN SIGNAL

35200-MKS-A01

$289.69

SWITCH ASSY., CLUTCH

35330-MCJ-751

$8.25

SWITCH ASSY., CLUTCH

35330-MK5-003

$17.76

PLATE A, SETTING

37971-MKS-E01

$4.06

CLAMP, CABLE

53111-MKS-E00

$15.34

GUIDE, CLUTCH CABLE

53112-MJP-G50

$10.80

GRIP ASSY., THROTTLE

53140-MKS-E01

$33.84

GRIP, L. HANDLE

53166-MGE-000

$17.74

BRACKET, L. HANDLE LEVER

53172-MKS-E00

$61.72

HOLDER, L. LEVER BRACKET

53174-KA3-730

$23.53

LEVER, L. HANDLEBAR

53178-MKS-E00

$37.88

BOLT, CABLE ADJUSTING

53192-MCJ-000

$8.18

HOLDER, L. KNUCKLE

53196-MKS-E00

$11.37

BOLT, FLANGE (6X22)

90021-GHB-670

$2.18

BOLT, FLANGE (6X12)

90030-GHB-620

$2.13

SCREW-WASHER (4X8)

90110-MKS-E20

$1.49

BOLT, SPECIAL (6X15)

90114-MGE-D00

$2.05

BOLT, L. HANDLE LEVER

90117-MJP-G50

$7.02

SCREW, FLAT (3X16)

90124-MCJ-752

$1.49

COLLAR (6X4)

90127-KF0-770

$3.42

NUT, U (6MM)

90301-782-000

$1.62

NUT, FIXING

90321-MCJ-000

$3.20

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

SCREW-WASHER (5X16)

90508-MGS-D30

$1.87

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.18

CLAMP, HARNESS

90690-MEF-800

$1.49

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.49

SCREW-WASHER (5X10)

93892-05010-08

$1.49

SCREW-WASHER (5X25)

93892-05025-08

$1.49

SCREW, TAPPING (3X12)

93901-32320

$1.49
