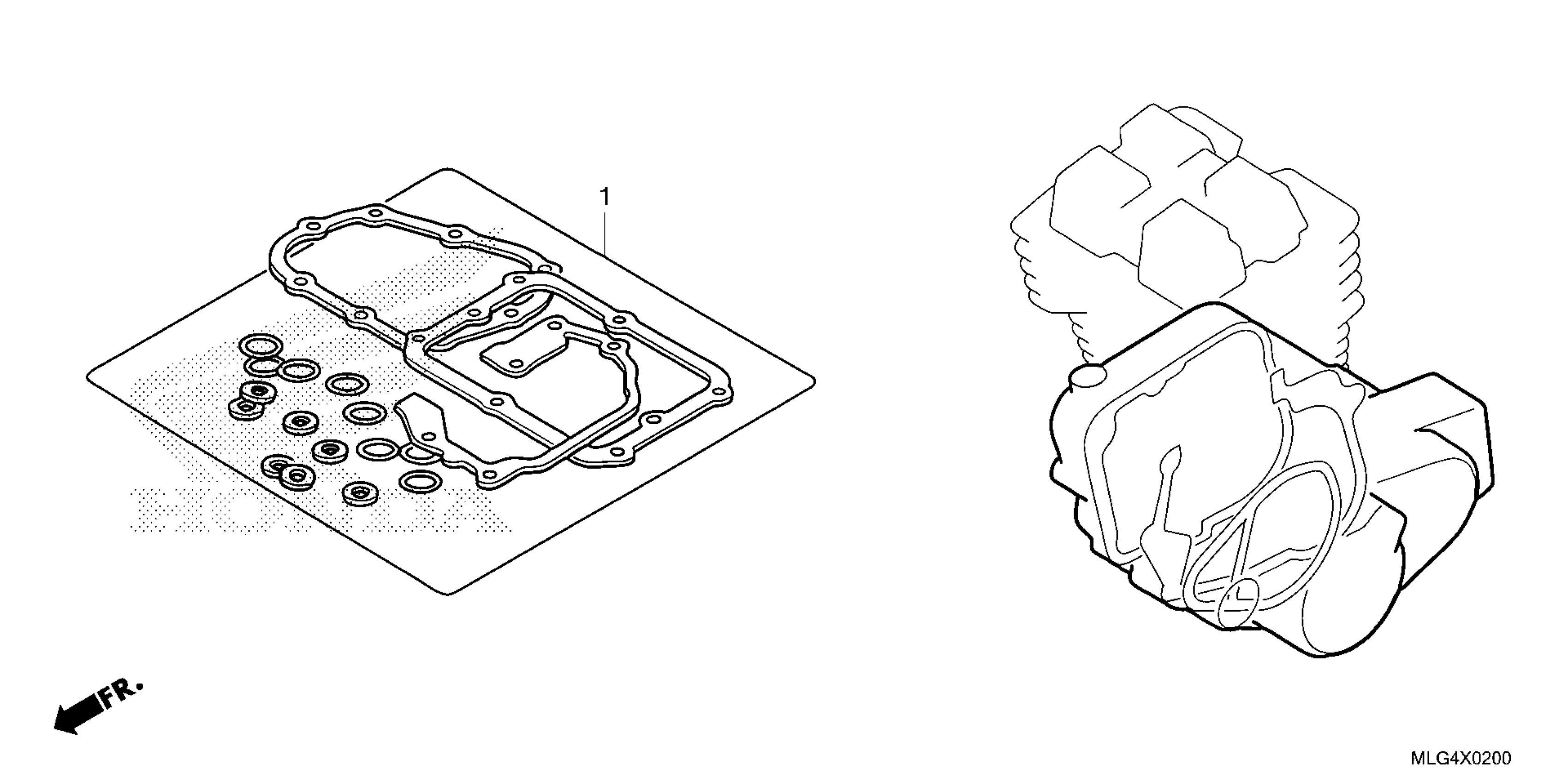

Honda CRF1100A2AC (23) MOTORCYCLE, JPN, VIN# JH2SD101-PK300001 GASKET KIT B Diagram

GASKET KIT B

06112-MKS-E00

$151.59

WASHER, NEUTRAL

90443-MJ6-000

$1.75

WASHER, SEALING (6MM)

90488-425-000

$2.07

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.61

O-RING (16.5X2.5)

91310-MGE-D01

$4.38

GASKET, R. CRANKCASE COVER

11394-MJP-G51

$43.41

GASKET, OIL PAN

11395-MJP-G51

$44.17

GASKET, OIL STRAINER

15154-MAT-000

$5.73

GASKET, WATER PUMP BODY

19226-MJP-G50

$9.59

WASHER, SEALING (8MM)

90442-028-000

$1.61

O-RING (6.5X2.2) (ARAI)

91303-MJ0-003

$3.77

O-RING (13.8X2.5)

91303-377-000

$3.18

O-RING (17.4X2.9)

91304-HN8-003

$1.96

O-RING (3.2X1.1)

91305-MCJ-751

$1.97

O-RING (18X3)

91307-035-000

$2.71

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

Unavailable

SEAL, WATER PIPE

91315-MJP-G51

$2.19

O-RING

91333-PNC-006

$3.00

O-RING (21.5X2.9)

91352-MGE-003

$1.77

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.80

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12
