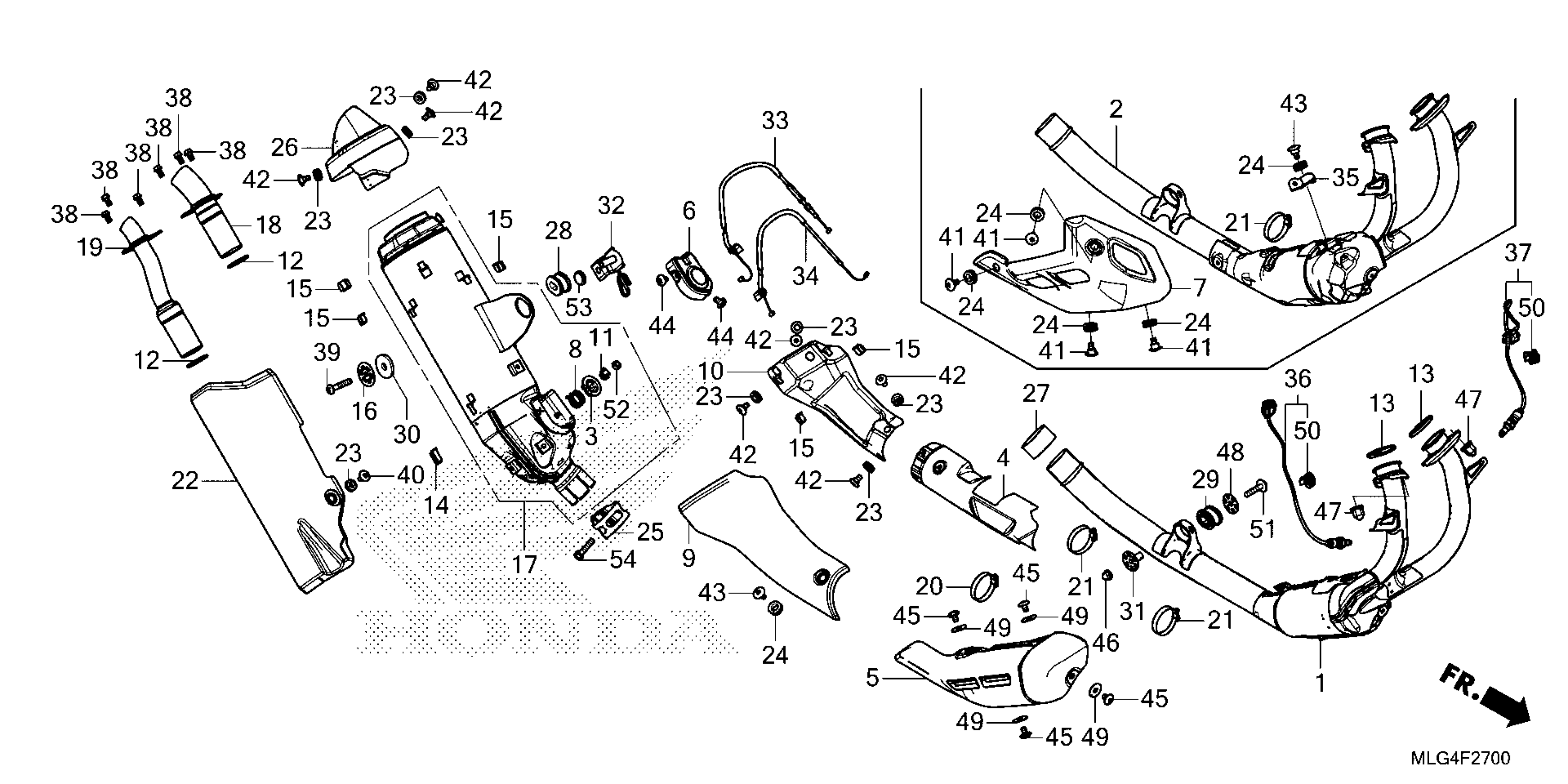

Honda CRF1100A2AC (23) MOTORCYCLE, JPN, VIN# JH2SD101-PK300001 EXHAUST MUFFLER Diagram

#

Description
Price

1

COVER, EX.

18100-MKS-A00

$1,693.26

3

GUIDE, VALVE CABLE

18170-MKS-E20

$20.79

4

COVER A, EX. PIPE

18180-MKS-E20

$126.97

5

COVER, R. CATALYST

18182-MKS-E00

$159.21

6

COVER, VALVE GUIDE

18184-MKS-E20

$28.46

8

SPRING, RETURN

18186-MKF-D41

$6.49

9

COVER, EX. (OUTER)

18186-MKS-E20

$22.90

10

COVER C, EX. PIPE

18190-MKS-E20

$36.02

11

WASHER B, LOCK

18195-MFJ-D00

$3.36

12

GASKET, EX. PIPE

18291-MEB-670

$4.92

13

GASKET, EX. PIPE

18291-MM8-880

$7.16

14

RUBBER, PROTECTOR GASKET

18293-MJP-G50

$3.80

15

RUBBER, PROTECTOR

18293-MN0-000

$2.13

16

WASHER (8.5X43)

18309-MJP-G50

$3.26

17

MUFFLER

18310-MKS-AT0

$1,300.95

18

ARRESTER A, SPARK

18317-MKS-AT0

$64.72

19

ARRESTER B, SPARK

18318-MKS-AT0

$99.49

20

BAND, EX. PROTECTOR

18329-MKS-E00

$16.93

21

BAND, EX. PROTECTOR

18329-MKS-E20

$16.21

22

COVER, MUFFLER

18340-MKS-E20

$192.75

23

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

24

RUBBER, PROTECTOR MOUNTING

18345-MKS-E20

$2.93

25

BAND, MUFFLER

18371-MKS-E20

$26.62

26

COVER, TAIL CAP

18380-MKS-E20

$69.43

27

GASKET, MUFFLER

18391-ML0-003

$29.28

28

RUBBER, MUFFLER MOUNTING

18421-MJP-G50

$6.21

29

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$18.48

30

WASHER, RUBBER

18422-MJP-G50

$3.66

31

COLLAR, EX. PIPE MOUNTING

18423-MGC-N20

$6.38

32

COLLAR, MUFFLER MOUNTING

18423-MKS-E20

$28.21

33

CABLE A, EX. VALVE

18910-MKS-E20

$68.26

34

CABLE B, EX. VALVE

18920-MKS-E20

$47.54

36

SENSOR, R. AIR FUEL RATIO

36533-MKS-E01

$225.69

37

SENSOR, L. AIR FUEL RATIO

36534-MKS-E01

$225.69

38

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

38

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

39

BOLT, SOCKET (8X45)

90109-MBT-611

$3.79

40

SCREW, PAN (6X12)

90113-GFP-B00

$3.58

42

SCREW, PAN (6X12)

90114-MKS-E20

$2.03

43

SCREW, PAN (6X14)

90115-MKS-E20

$2.20

44

BOLT, SPECIAL (5X8)

90116-MKS-E20

$4.07

45

SCREW, PAN (6X10)

90190-MLG-E00

$2.25

46

NUT, FLANGE CAP (8MM)

90301-MKS-E20

$3.20

47

NUT, CAP (8MM)

90304-ME1-670

$5.94

48

WASHER (8.5X38)

90501-MGC-N20

$3.25

49

WASHER, PLAIN (6MM)

90502-MKS-E00

$3.13

50

CLIP, HARNESS BAND (164.5MM) (DARK BLUE)

91542-SNA-003

$1.49

51

BOLT-WASHER (8X40)

93404-08040-04

$1.49

52

NUT, HEX. (6MM)

94001-06020-0S

$1.49

53

RUBBER C, STAND STOPPER

95011-63000

$3.90

54

BOLT, FLANGE (8X35)

96400-08035-04

$1.49
