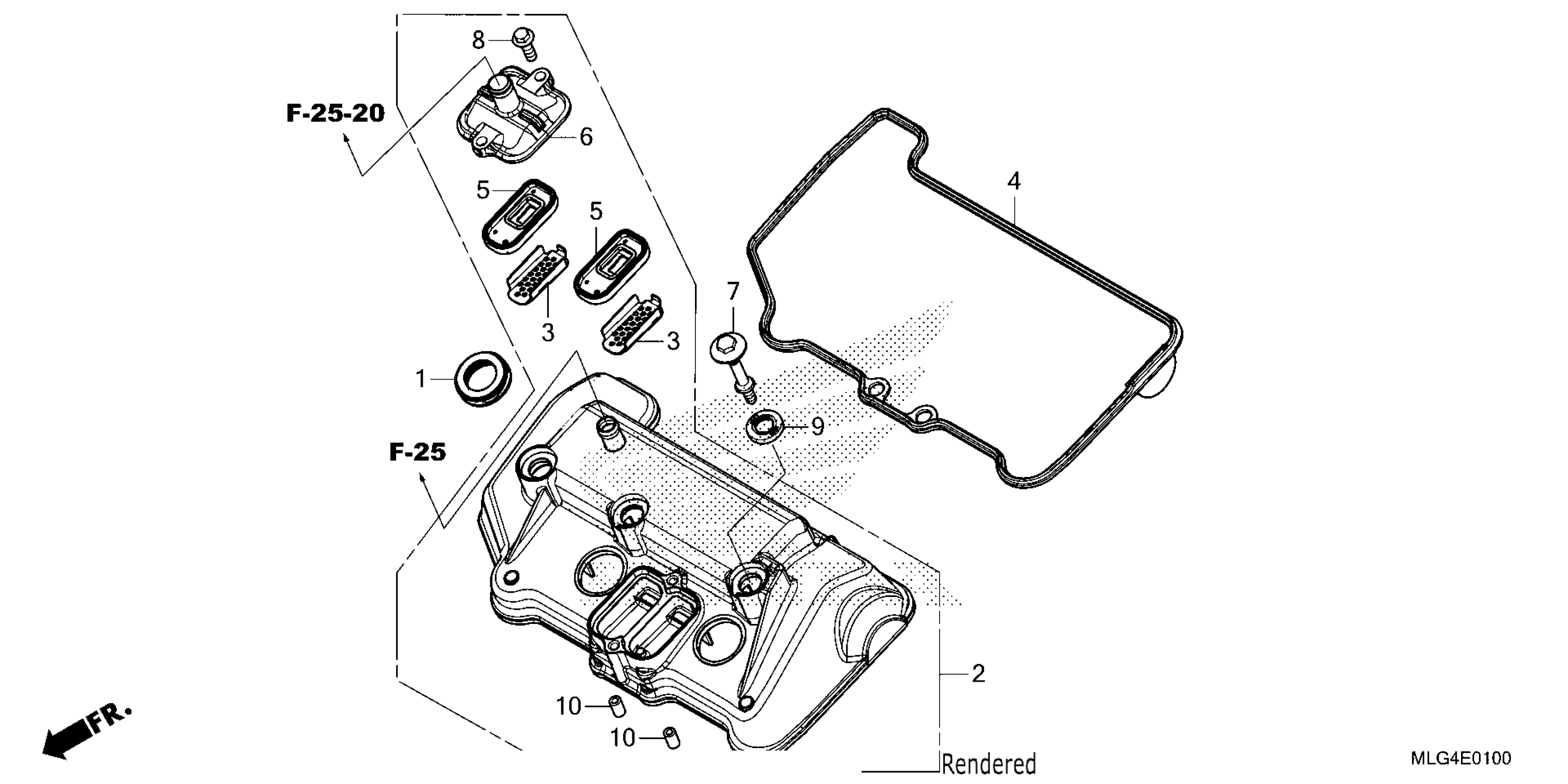

Honda CRF1100A2AC (23) MOTORCYCLE, JPN, VIN# JH2SD101-PK300001 CYLINDER HEAD COVER Diagram

SEAL, PLUG TUBE

12229-HL4-000

$8.00

COVER, CYLINDER HEAD This part replaces 12300-MKS-E00.

12300-MKS-E01

$294.66

PLATE, PORT (AI)

12341-MAT-750

$13.98

GASKET, HEAD COVER

12391-HL4-000

$26.18

VALVE, REED (ARAI)

18601-KEA-741

$18.89

COVER, REED VALVE

18612-MKK-D00

$38.93

BOLT, HEAD COVER

90017-MAL-600

$13.93

BOLT, FLANGE (6X18)

90025-GHB-650

$2.15

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.94

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28
