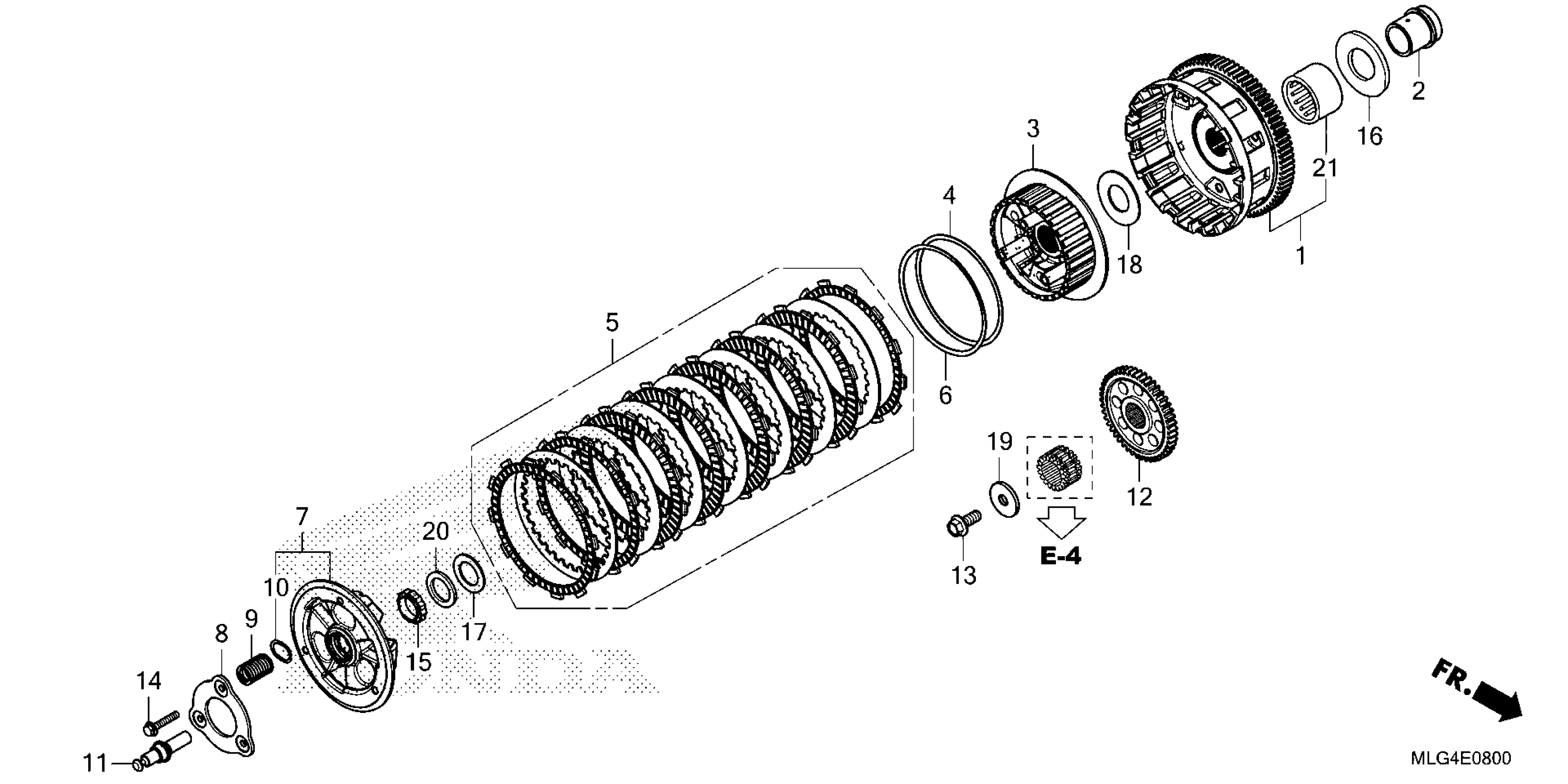

Honda CRF1100A2AC (23) MOTORCYCLE, JPN, VIN# JH2SD101-PK300001 CLUTCH (1) Diagram

CLUTCH OUTER (79T)

22100-MKS-E01

$384.64

GUIDE, CLUTCH (OUTER)

22116-MJP-G50

$17.49

CENTER, CLUTCH

22121-MKS-E01

$99.39

SEAT, JUDDER SPRING

22125-MKS-E01

$5.80

DISK SET, CLUTCH

22210-MKS-305

$143.33

SPRING, JUDDER

22325-MKS-E01

$41.28

PLATE, CLUTCH PRESSURE

22350-MKS-E02

$85.65

PLATE, SETTING

22361-MKS-E01

$17.72

SPRING, CLUTCH

22401-MKS-E01

$5.25

SEAT, CLUTCH SPRING

22425-MJP-G51

$10.54

PIN, CLUTCH LIFTER

22847-MKS-E00

$36.75

GEAR, PRIMARY DRIVE (46T)

23103-MKS-E00

$106.20

BOLT, SPECIAL (10X25)

90013-MJP-G50

$3.88

BOLT, FLANGE (6X35)

90050-MJP-G51

$1.87

NUT, LOCK (25MM)

90231-MS2-610

$16.86

WASHER (35X50X3.2)

90401-MEA-670

$4.90

WASHER (25.2X38X2)

90401-MKS-E00

$4.41

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$14.45

WASHER (10.5X36X4)

90414-MGE-D00

$2.42

WASHER, SPRING (25MM) (CHUO HATSUJO)

90432-MM8-003

$7.16

BEARING, NEEDLE (35X42X23)

91026-MV9-671

$81.87
