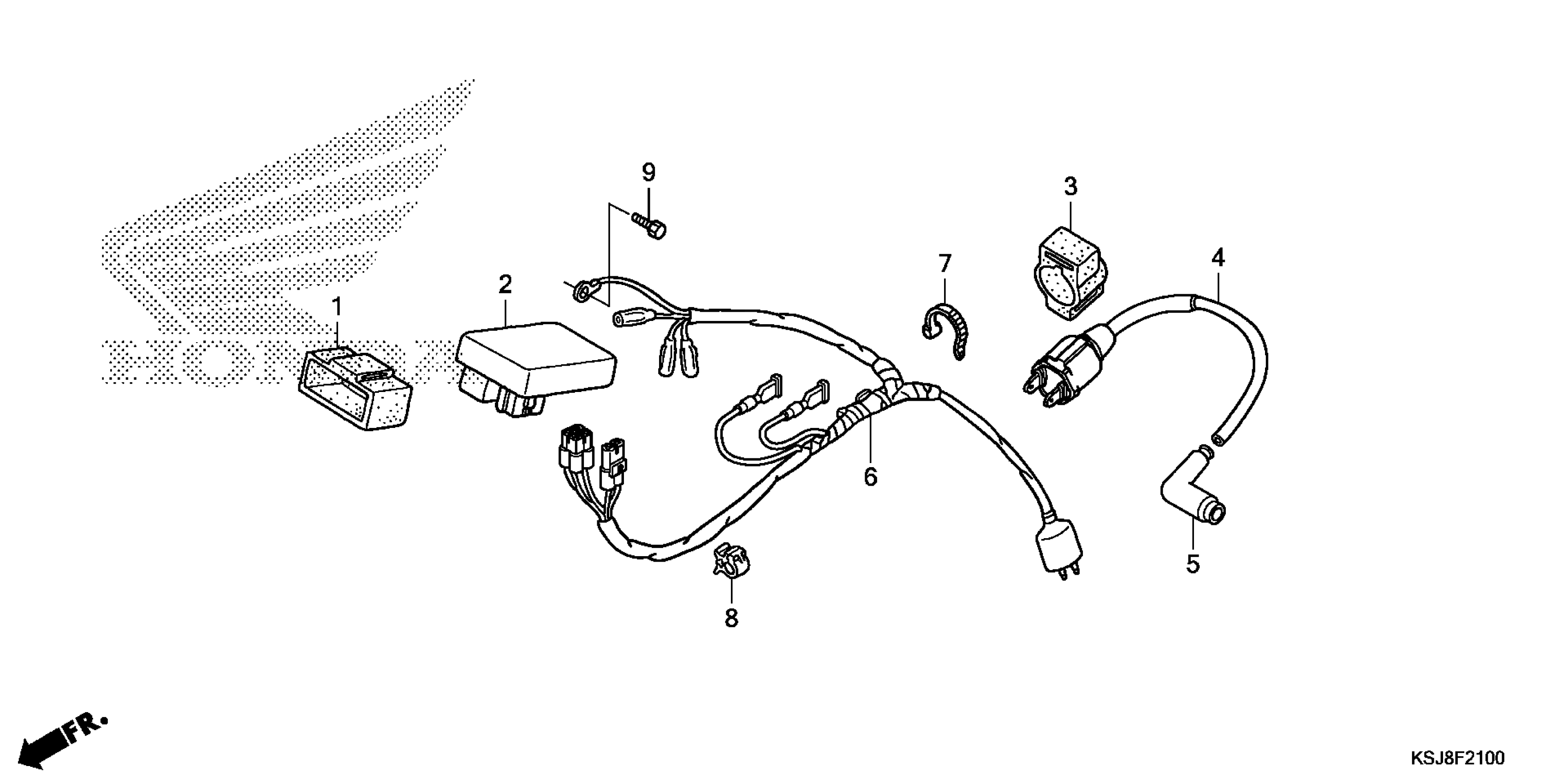

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 WIRE HARNESS Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-KK0-770.

30401-KT1-670

$5.04

2

MODULE, IGNITION CONTROL (CDI)

30410-GT9-000

$204.31

3

SUSPENSION, IGNITION COIL

30506-KV3-771

$10.91

4

COIL, IGNITION This part replaces 30510-KN4-850.

30510-KT0-405

$70.98

4

COIL, IGNITION

30510-KT0-405

$70.98

5

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$21.87

6

WIRE HARNESS

32100-KSJ-A30

$63.53

7

BAND, WIRE HARNESS

90650-MA6-720

$4.65

8

CLIP, CABLE (10MM)

90690-GHB-641

$2.01

9

BOLT, HEX. (5X10)

92101-05010-0A

$0.81
