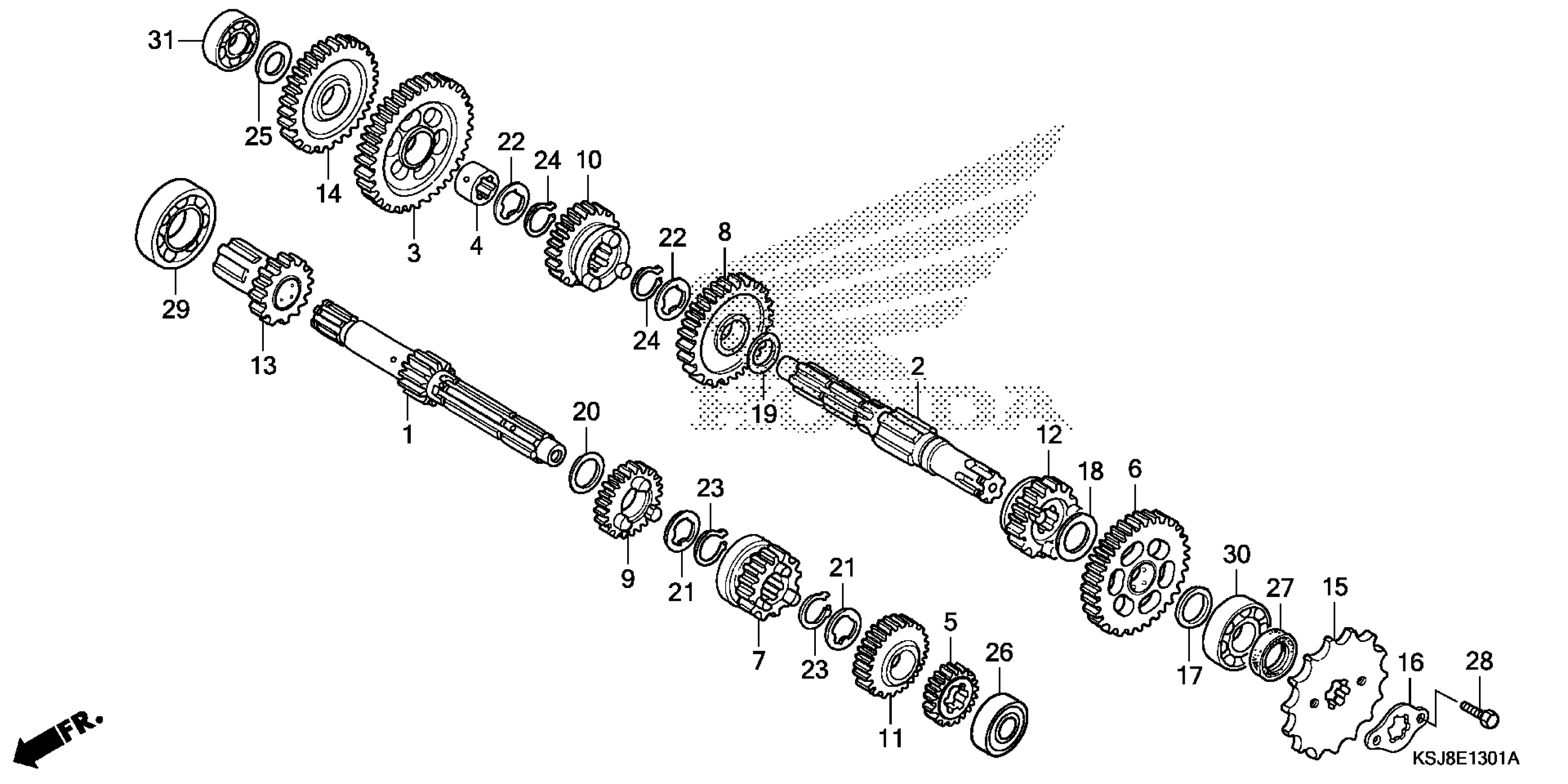

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 TRANSMISSION (CRF100F) Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T)

23211-KN4-A60

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-436-000

$118.70

3

GEAR, COUNTERSHAFT LOW (37T)

23426-436-000

$97.57

4

COLLAR, COUNTERSHAFT LOW GEAR

23427-436-000

Unavailable

5

GEAR, MAINSHAFT SECOND (17T)

23441-115-010

$43.03

6

GEAR, COUNTERSHAFT SECOND (32T)

23450-436-000

Unavailable

7

GEAR, MAINSHAFT THIRD (20T)

23461-115-010

Unavailable

8

GEAR, COUNTERSHAFT THIRD (28T)

23471-436-000

Unavailable

9

GEAR, MAINSHAFT FOURTH (23T)

23481-115-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (26T)

23491-436-000

Unavailable

11

GEAR, MAINSHAFT TOP (26T)

23501-436-010

$62.77

12

GEAR, COUNTERSHAFT TOP (24T)

23511-115-010

$69.56

13

GEAR, PRIMARY STARTER (19T)

23520-436-000

$109.41

14

GEAR, IDLE STARTER (29T)

23531-436-000

$68.76

15

SPROCKET, DRIVE (14T)

23800-168-000

$34.31

16

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

17

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

18

WASHER, THRUST (19.5MM)

90451-436-000

$2.83

19

WASHER, THRUST (18MM)

90452-436-000

$3.98

20

WASHER B, THRUST (17MM)

90453-115-000

$2.28

21

WASHER, SPLINE (17MM)

90461-115-000

$2.66

22

WASHER, SPLINE (18MM)

90461-436-000

$3.98

23

CIRCLIP, OUTER (17MM)

90601-001-000

$1.49

24

CIRCLIP (18MM)

90601-030-000

$1.77

25

WASHER (12MM)

90608-072-000

$3.80

26

BEARING, RADIAL BALL (6201U) This part replaces 91002-436-004.

96140-62010-00

$9.63

26

BEARING, RADIAL BALL (6201U)

96140-62010-00

$9.63

27

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

28

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

29

BEARING, RADIAL BALL (6005)

96100-60050-00

$11.25

30

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

31

BEARING, RADIAL BALL (6201U)

96140-62010-00

$9.63
