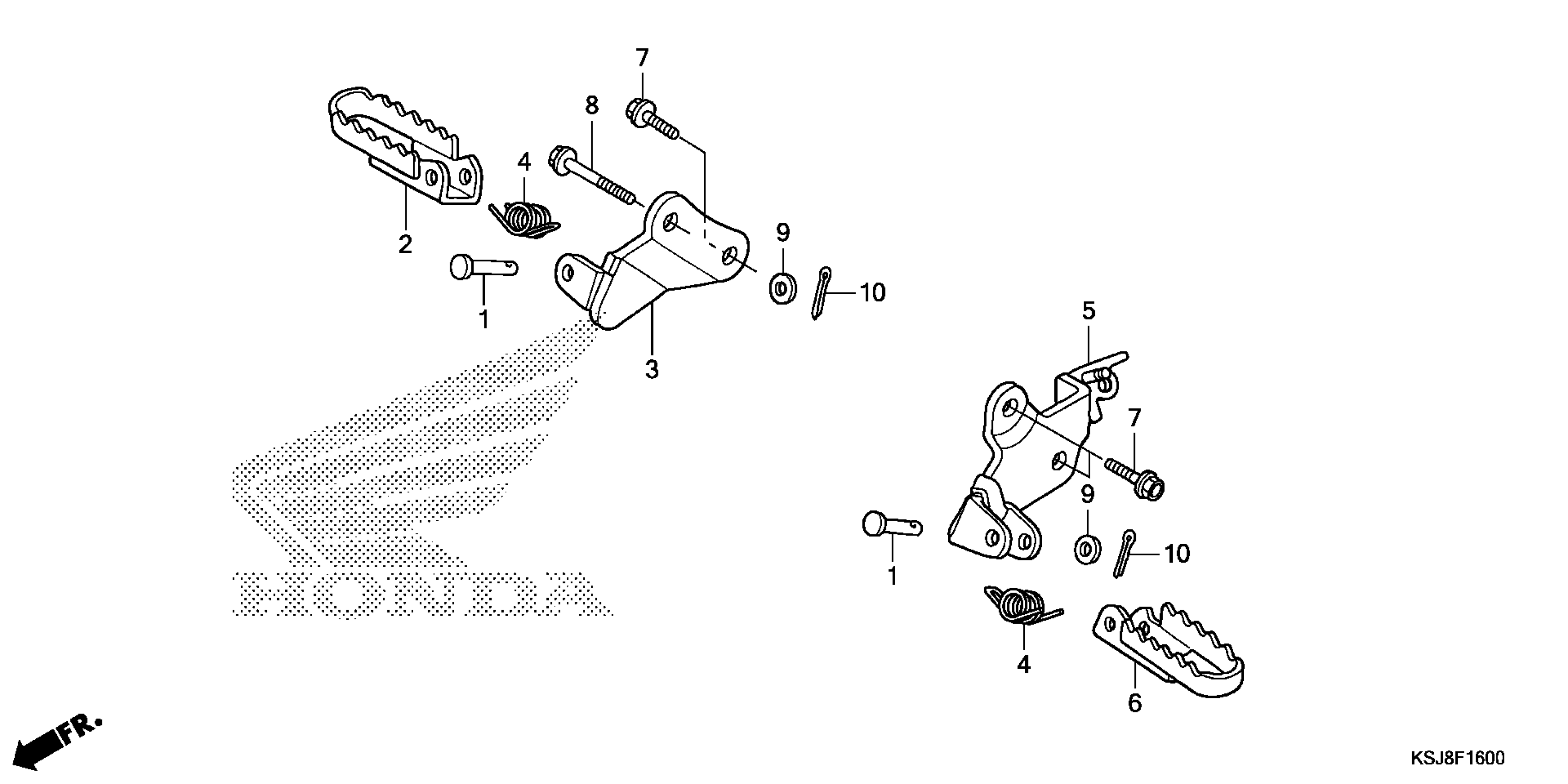

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 STEP Diagram

PIN, STEP BAR JOINT

50603-033-010

$2.98

STEP, R. (COO)

50612-KSJ-305

$19.59

BRACKET, R. STEP *NH146M* (ACCURATE SILVER METALLIC) | Extreme red R292R;

50615-GN1-000ZC

$17.29

SPRING, FOOTPEG RETURN

50617-MA0-770

$5.41

SPRING, FOOTPEG RETURN This part replaces 50617-466-000.

50617-MA0-770

$5.41

BRACKET, L. STEP *NH146M* (ACCURATE SILVER METALLIC) | Extreme red R292R;

50624-GN1-000ZC

$24.34

STEP, L. (COO)

50642-KSJ-305

$17.94

BOLT, FLANGE (10X25)

90105-GN1-000

$5.09

BOLT, SPECIAL (10X55)

90106-GN1-000

$5.09

WASHER, PLAIN (8MM)

94101-08000

$0.75

PIN, SPLIT (2.0X15)

94201-20150

$0.94
