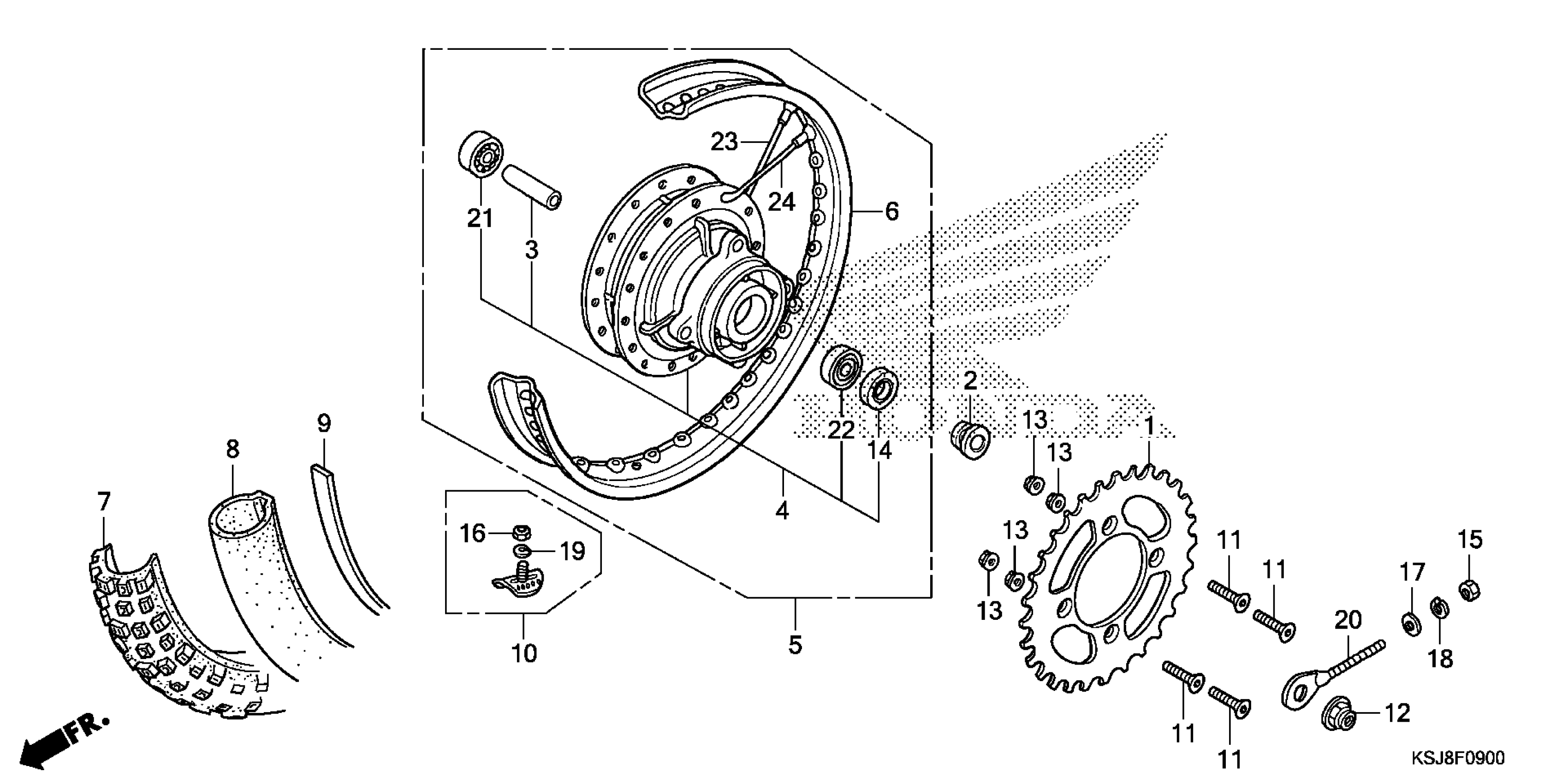

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (50T)

41201-KN4-000

$45.94

2

COLLAR, RR. WHEEL SIDE

42311-GC4-000

$13.29

3

COLLAR, RR. AXLE DISTANCE

42620-GC4-000

$13.25

4

HUB SUB-ASSY., RR.

42635-KSJ-000

$204.19

5

WHEEL SUB-ASSY., RR. This part replaces 42650-KSJ-305.

42650-KSJ-020

$377.42

6

RIM, RR. WHEEL This part replaces 42701-KN4-013.

42701-KN4-023

$50.13

7

TIRE, RR. (90/100-16) (M/C 51M T/T) (CHENG SHIN)

42711-KSJ-007

$83.03

8

TUBE, TIRE (90/100-16) (CHENG SHIN)

42712-KSJ-007

$21.22

9

FLAP, TIRE (CHENG SHIN)

42713-KSJ-007

$5.04

10

STOPPER, BEAD (1.60)

44715-MA0-770

$33.03

11

SCREW, FLAT (8X31)

90125-KA4-000

$2.87

12

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

Unavailable

13

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

13

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

14

DUST SEAL (21X37X5.5) (ARAI)

90755-GC4-003

$4.70

14

DUST SEAL (21X37X5.5) (ARAI) This part replaces 90755-GC4-005.

90755-GC4-003

$4.70

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

15

NUT, HEX. (6MM)

94001-06200-0S

$1.19

16

NUT, HEX. (8MM)

94001-08000-0S

$1.19

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM)

94101-06800

Unavailable

18

WASHER, SPRING (6MM)

94111-06000

$0.86

19

WASHER, SPRING (8MM)

94111-08000

$0.90

20

ADJUSTER S, R. CHAIN (L. SIDE)

95014-10010

$4.03

21

BEARING, RADIAL BALL (6201U)

96140-62010-10

$9.22

22

BEARING, RADIAL BALL (6301U)

96140-63010-10

$13.32

23

SPOKE SET B (10X148.5) (INSIDE)

97338-42137-K0

$3.42

24

SPOKE SET B (10X148.0) (OUTSIDE)

97488-42136-K0

$3.42
