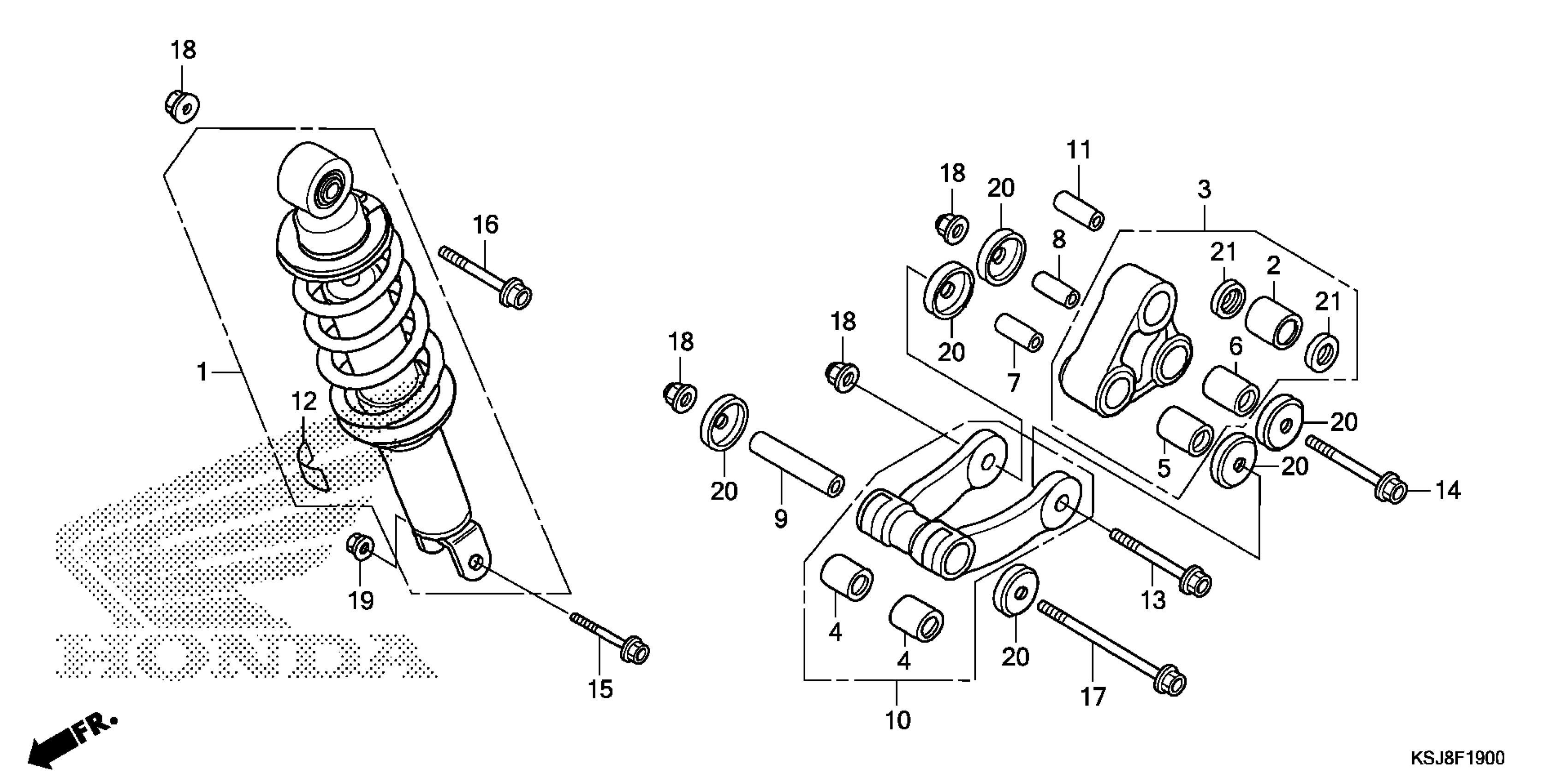

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR. (COO) (SHOWA)

52400-KSJ-305

$485.64

2

BUSH, DAMPER (LOWER)

52452-GN1-000

$10.98

3

ARM SUB-ASSY., CUSHION

52465-KSJ-000

$153.20

4

BUSH, CUSHION CONNECTING ROD

52472-GJ1-003

$21.97

5

BUSH, CUSHION ARM

52472-GN1-000

$21.97

6

BUSH, CUSHION ARM

52472-KN4-A60

$18.33

7

COLLAR, CONNECTING ROD PIVOT

52473-GE2-000

$16.56

8

COLLAR, CUSHION ARM

52464-GW6-000

$7.17

9

COLLAR, CONNECTING ROD

52473-GN1-000

$14.51

10

ROD SUB-ASSY., CUSHION CONNECTING

52475-KTK-000

$166.16

11

COLLAR, DAMPER (LOWER)

52486-GN1-000

$8.37

12

LABEL, RR. DAMPER (ENGLISH)

87516-KV6-610

$4.49

13

BOLT, FLANGE (10X61)

90128-GN1-000

$6.37

14

BOLT, FLANGE (10X70)

90128-GC5-000

$13.04

15

BOLT, FLANGE (8X47)

90150-GN1-000

$5.14

16

BOLT, FLANGE (10X55) This part replaces 90152-GN1-000.

95801-10055-00

$1.28

17

BOLT, FLANGE (10X98)

90130-KA3-730

$17.77

18

NUT, U FLANGE (10MM)

90304-KN4-A61

$2.59

19

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

19

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

20

CAP, DUST SEAL

91262-KN4-A61

$6.45

21

SEAL, DAMPER (LOWER)

91263-GN1-003

$4.43
