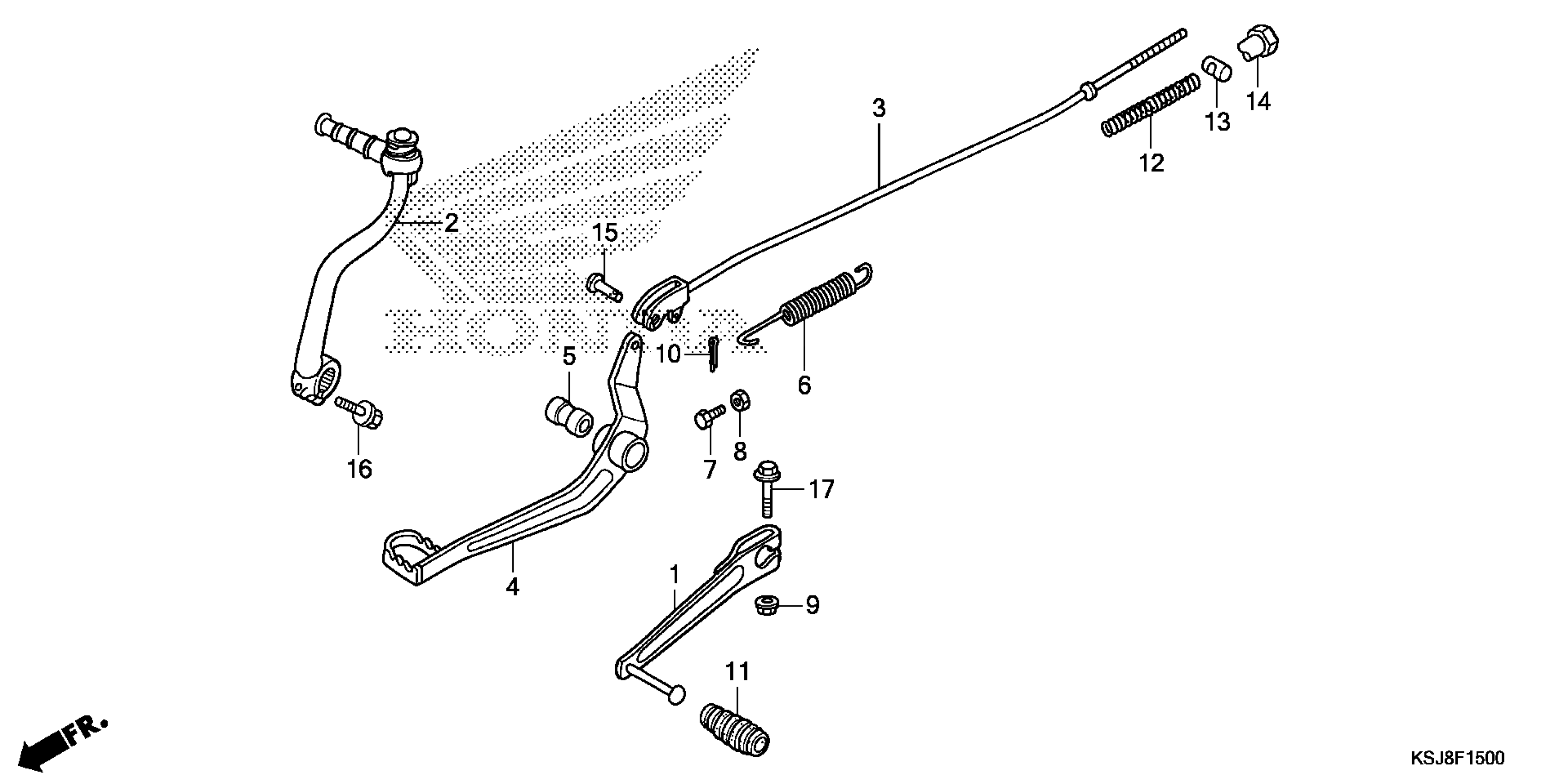

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 PEDAL Diagram

PEDAL, GEARSHIFT This part replaces 24701-KSJ-305.

24701-KN4-A60

$37.20

ARM ASSY., KICK STARTER (COO)

28300-KSJ-305

$60.51

ROD, RR. BRAKE

43451-KSJ-000

$13.10

PEDAL, BRAKE This part replaces 46500-KSJ-305.

46500-KSJ-670

$47.99

SLEEVE, RR. BRAKE PIVOT

46506-GN1-000

$7.53

SPRING, BRAKE PEDAL

46514-MB0-000

$8.64

BOLT, HEX. (6X16)

92101-06016-0A

$1.35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

NUT, HEX. (6MM)

94001-06200-0S

$1.21

NUT, FLANGE (6MM)

94050-06000

$0.60

PIN, SPLIT (2.0X12)

94201-20120

$0.96

RUBBER, CHANGE PEDAL

95011-40000

$1.16

SPRING A, BRAKE ROD

95014-73100

$1.19

JOINT B, BRAKE ARM

95015-32001

$0.87

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.78

PIN C, JOINT

95015-53000

$2.92

BOLT, FLANGE (6X25)

96300-06025-00

$1.35

BOLT, FLANGE (6X28)

96300-06028-00

$1.37
