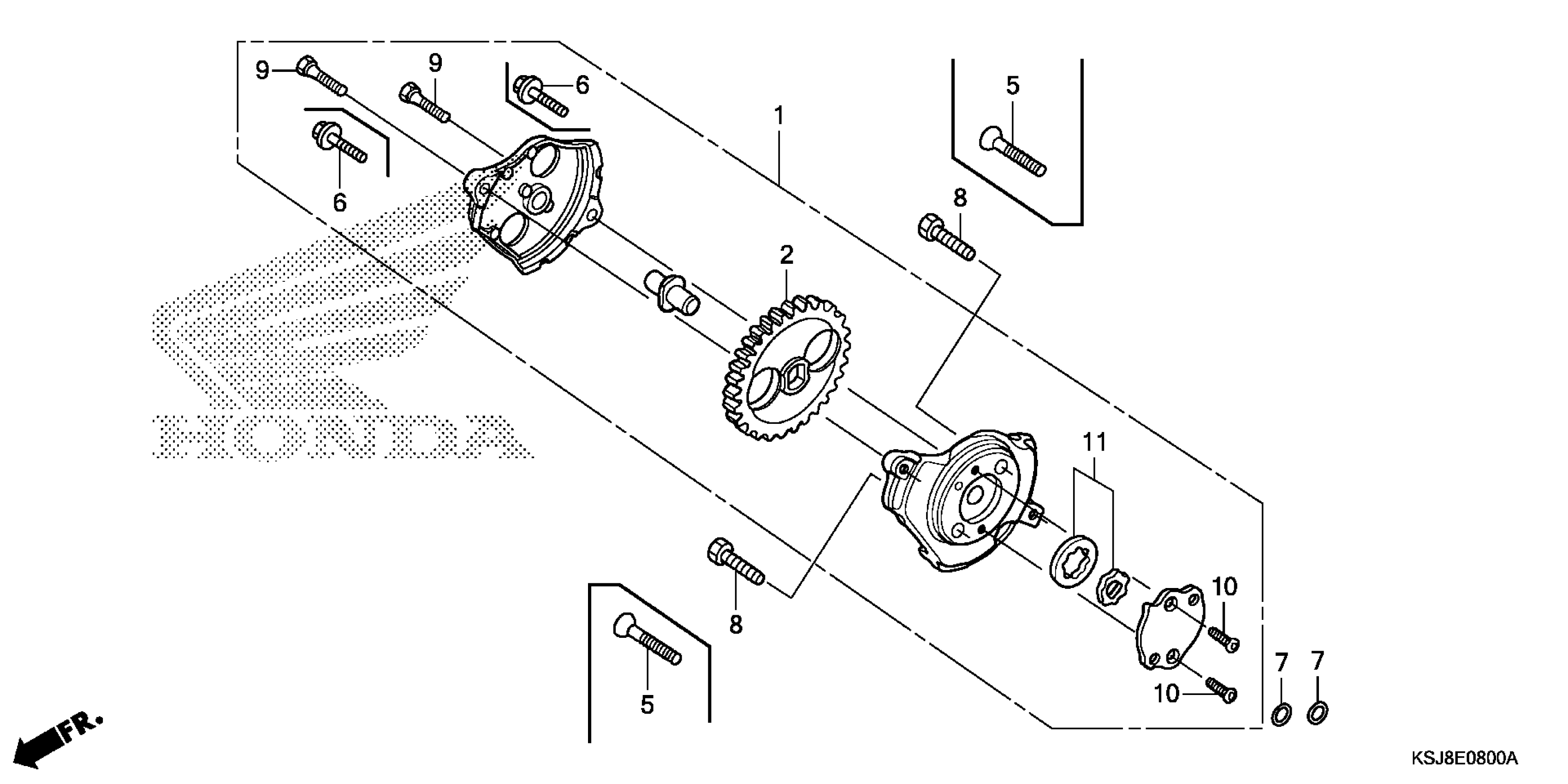

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-KRL-680

$115.96

2

GEAR, OIL PUMP DRIVE (35T)

15131-149-000

Unavailable

3

ROTOR, OIL PUMP (INNER)

15331-436-000

Unavailable

4

ROTOR, OIL PUMP (OUTER)

15332-436-000

Unavailable

5

SCREW, FLAT (6X30)

90101-440-000

$2.32

6

BOLT, FLANGE (5X18)

90112-MAW-620

$1.40

7

O-RING (9.4X2.4)

91304-KK3-830

$2.24

10

SCREW, FLAT (4X12)

93600-04012-0A

$0.84

11

ROTOR SET, OIL PUMP

15021-436-000

$31.50
