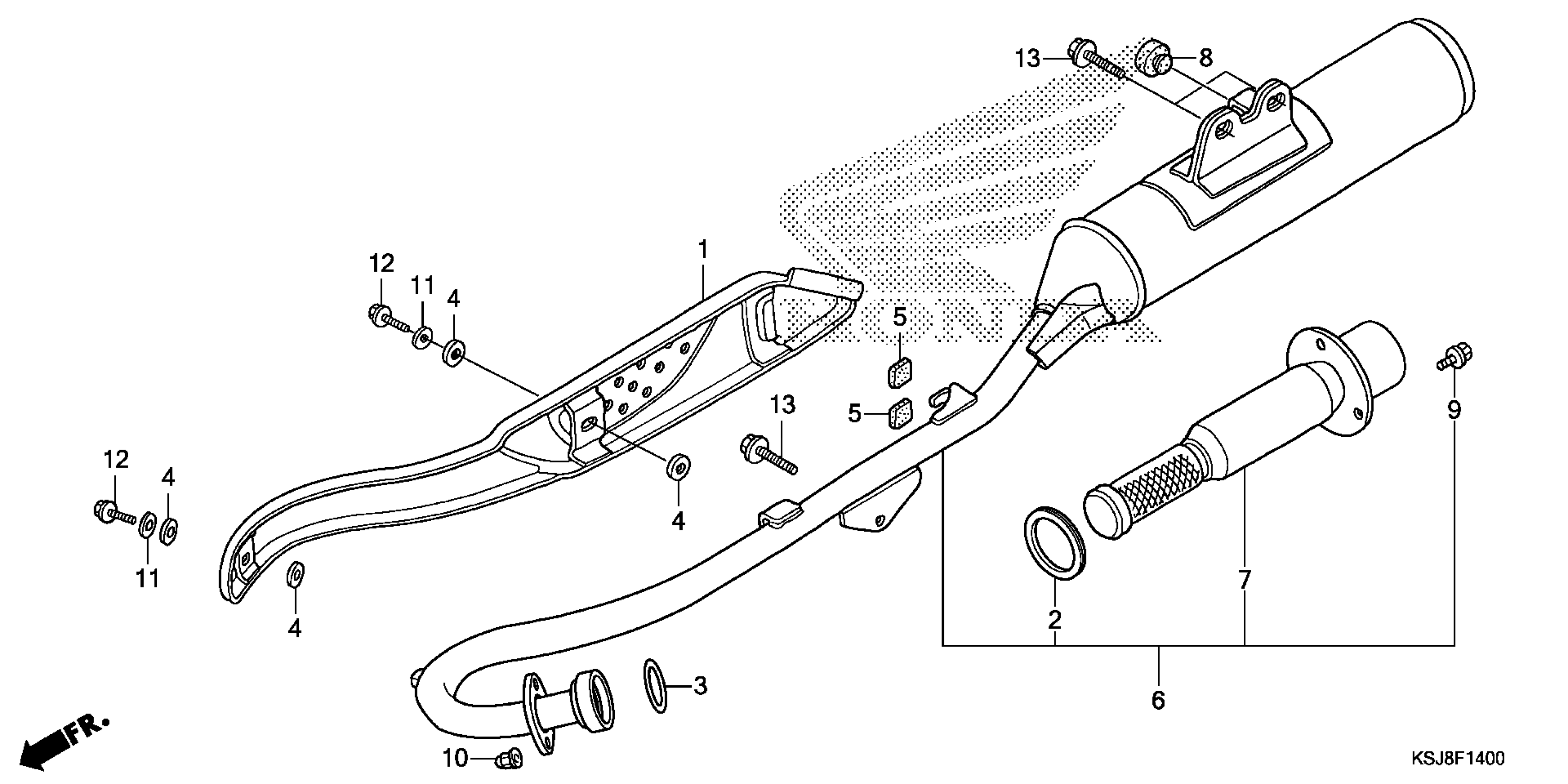

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 MUFFLER Diagram

#

Description

Price

1

PROTECTOR, EX. PIPE (COO) This part replaces 18240-KN4-A60.

18240-GFW-305

$72.93

1

PROTECTOR, EX. PIPE (COO)

18240-GFW-305

$72.93

2

GASKET A, EX. PIPE

18291-KR1-680

$7.80

3

GASKET, EX. PIPE

18291-KZ1-670

$5.07

4

GASKET, PROTECTOR

18292-KBR-000

$3.21

5

RUBBER, PROTECTOR GASKET

18293-MBC-000

$3.52

6

MUFFLER ASSY., EX. (COO)

18300-KSJ-305

$273.38

7

ARRESTER, SPARK (COO)

18318-KSJ-305

Unavailable

8

RUBBER, SIDE COVER

83512-KA4-700

$4.26

9

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

10

NUT, CAP (6MM)

90304-438-000

$6.64

11

WASHER, PLAIN (6MM)

94101-06700

$0.86

12

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

13

BOLT, FLANGE (8X14)

96300-08014-07

$1.72
