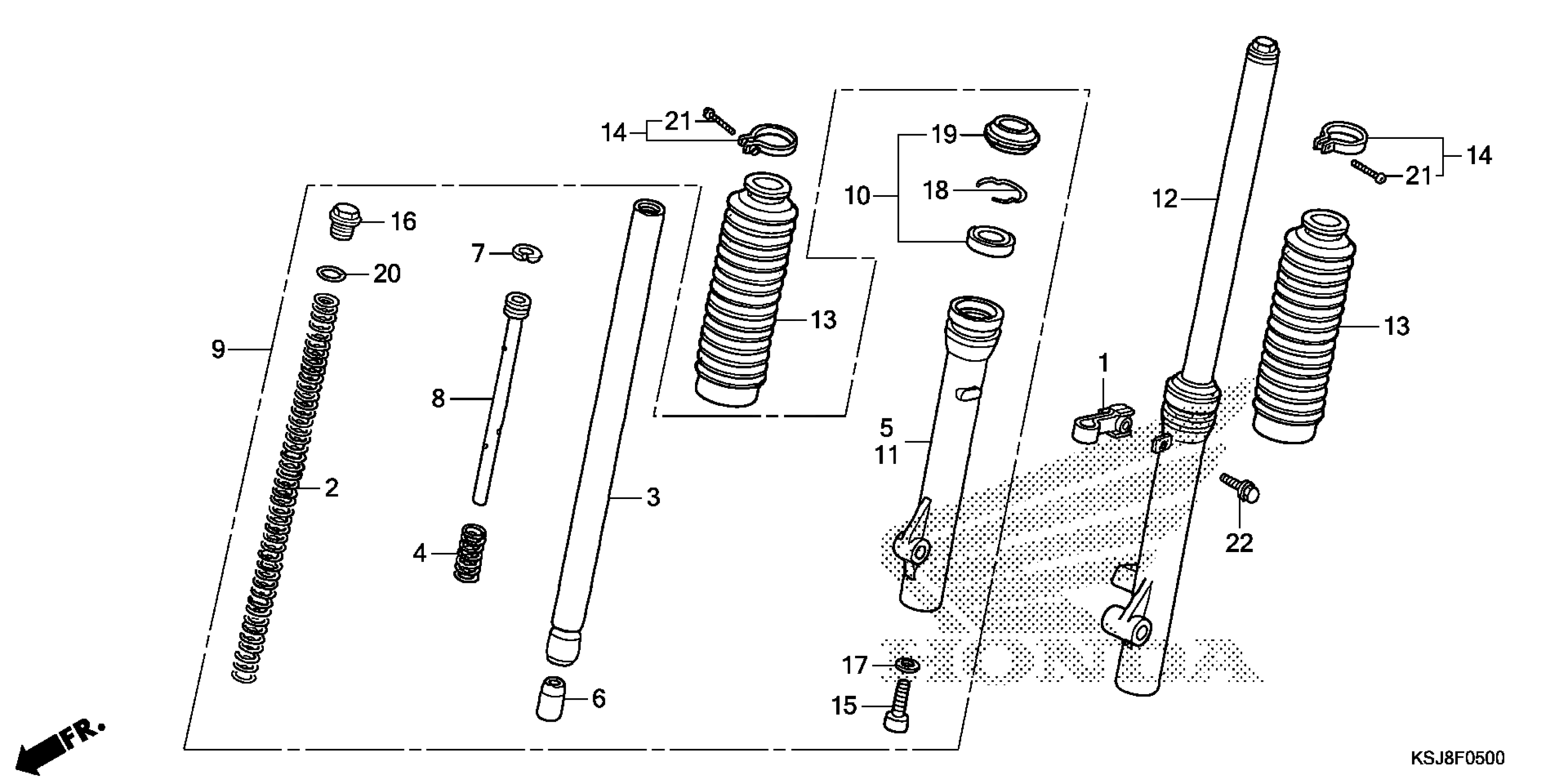

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, BRAKE CABLE

45461-KN4-A60

$6.54

2

SPRING, FR. FORK

51401-KSJ-003

$32.59

3

PIPE, FR. FORK (SHOWA)

51410-KN4-A61

$193.56

4

SPRING, REBOUND (SHOWA)

51412-GCF-671

$8.69

5

CASE, R. (LOWER) (COO) This part replaces 51420-KN4-A61.

51420-GFW-305

$211.70

5

CASE, R. (LOWER) (COO)

51420-GFW-305

$211.70

6

PIECE, OIL LOCK (SHOWA)

51432-GN1-003

$20.48

7

RING, PISTON

51437-GM0-003

$5.07

7

RING, PISTON This part replaces 51437-383-721.

51437-GM0-003

$5.07

8

PIPE, SEAT

51470-KSJ-003

$29.87

9

FORK SUB-ASSY., R. FR. (COO) (SHOWA)

51480-KSJ-305

Unavailable

10

SEAL SET, FR. FORK

51490-GN1-013

$29.00

11

CASE, L. (LOWER) (COO) This part replaces 51520-KN4-A61.

51520-GFW-305

Unavailable

11

CASE, L. (LOWER) (COO)

51520-GFW-305

Unavailable

12

FORK SUB-ASSY., L. FR. (COO) (SHOWA)

51580-KSJ-305

Unavailable

13

BOOT, FR. FORK *NH1L* (BLACK) | Extreme red R292R;

51611-GN1-762ZE

$44.15

14

BAND, FR. FORK BOOT

51612-KF9-900

$10.78

15

BOLT, SOCKET (8X27)

90116-383-721

$5.13

16

BOLT, FORK (SHOWA)

90123-KA8-771

$25.54

17

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

18

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

19

DUST SEAL (SHOWA)

91254-GN1-013

$13.86

20

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.30

21

SCREW, PAN (3X20)

93500-03020-0G

$1.49

22

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
