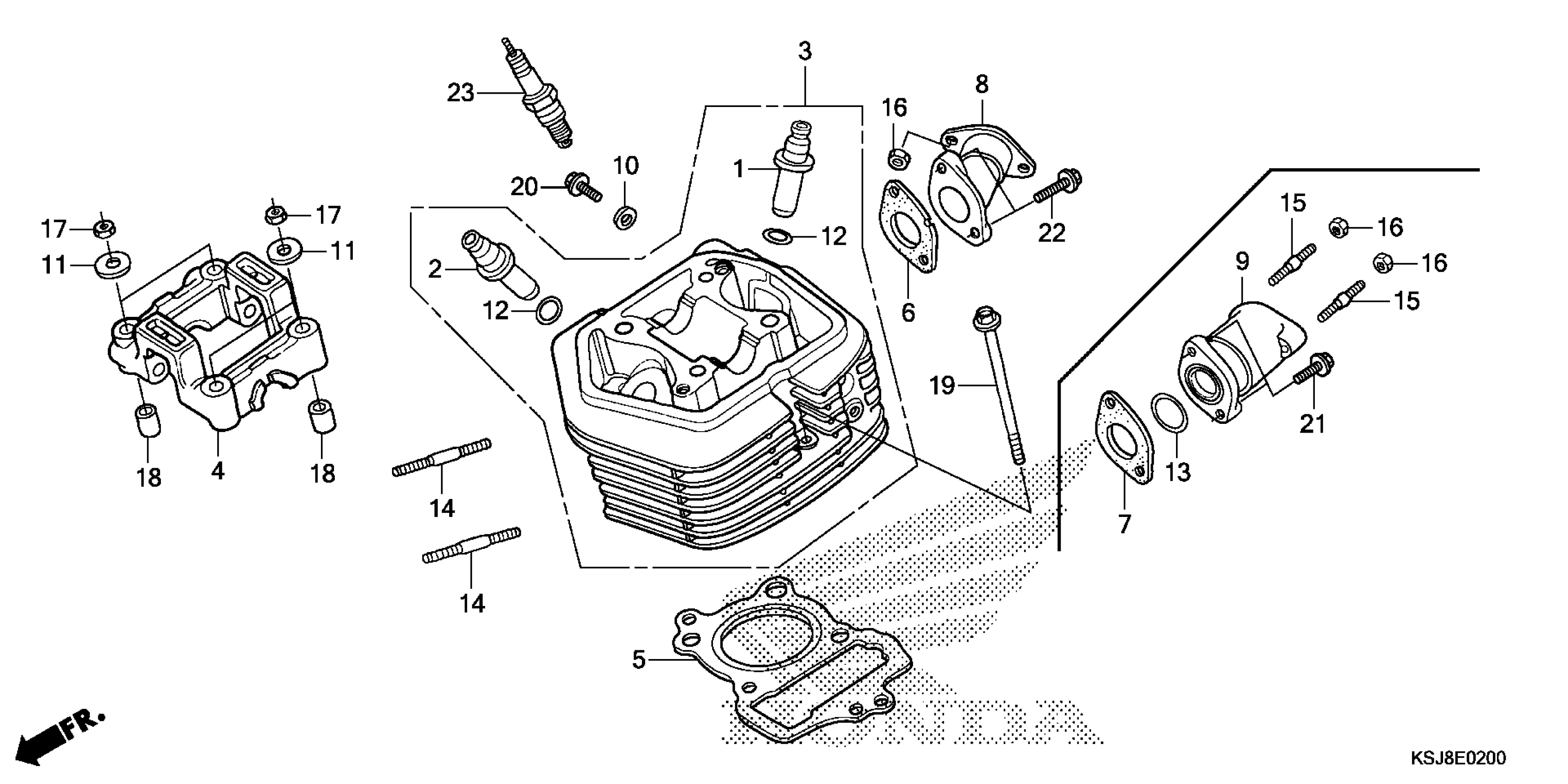

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-149-300.

12021-149-405

$10.89

1

GUIDE, VALVE

12021-149-405

$10.89

2

GUIDE, VALVE This part replaces 12023-116-300.

12023-465-405

$17.36

2

GUIDE, VALVE

12023-465-405

$17.36

3

CYLINDER HEAD

12200-KN4-A61

$252.36

4

HOLDER, CAMSHAFT

12210-149-020

$105.43

5

GASKET, CYLINDER HEAD

12251-KN4-751

$21.67

7

GASKET This part replaces 16229-KN4-751.

16229-KN4-752

$4.28

9

PIPE, INLET

17110-KA8-000

$62.57

10

WASHER A (6MM)

90478-700-000

Unavailable

11

WASHER (8MM)

90483-028-000

$1.40

12

O-RING (10X1.6)

91301-200-000

$2.87

13

O-RING (29.5X3)

91301-401-000

$3.36

13

O-RING (29.5X3) This part replaces 91302-436-003.

91301-401-000

$3.36

13

O-RING (29.5X3) This part replaces 91302-436-004.

91301-401-000

$3.36

14

BOLT, STUD (6X20)

92900-06020-0B

$1.59

15

BOLT, STUD (6X16) This part replaces 92912-06016-0B.

90033-KPT-900

$0.65

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

16

NUT, HEX. (6MM)

94001-06200-0S

$1.21

17

NUT, HEX. (8MM)

94002-08200-0S

$1.21

18

PIN, DOWEL (10X16)

94301-10160

$2.80

19

BOLT, FLANGE (6X110)

95701-06110-00

$4.01

20

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

21

BOLT, FLANGE (6X18)

96001-06018-00

$1.66

23

SPARK PLUG (CR6HSA) (NGK) | (Optional).

98056-56718

$2.00

23

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.28

23

SPARK PLUG (CR7HSA) (NGK)

98056-57718

$2.00

23

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.28

23

SPARK PLUG (CR8HSA) (NGK) | (Optional).

98056-58718

$2.35

23

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.28
