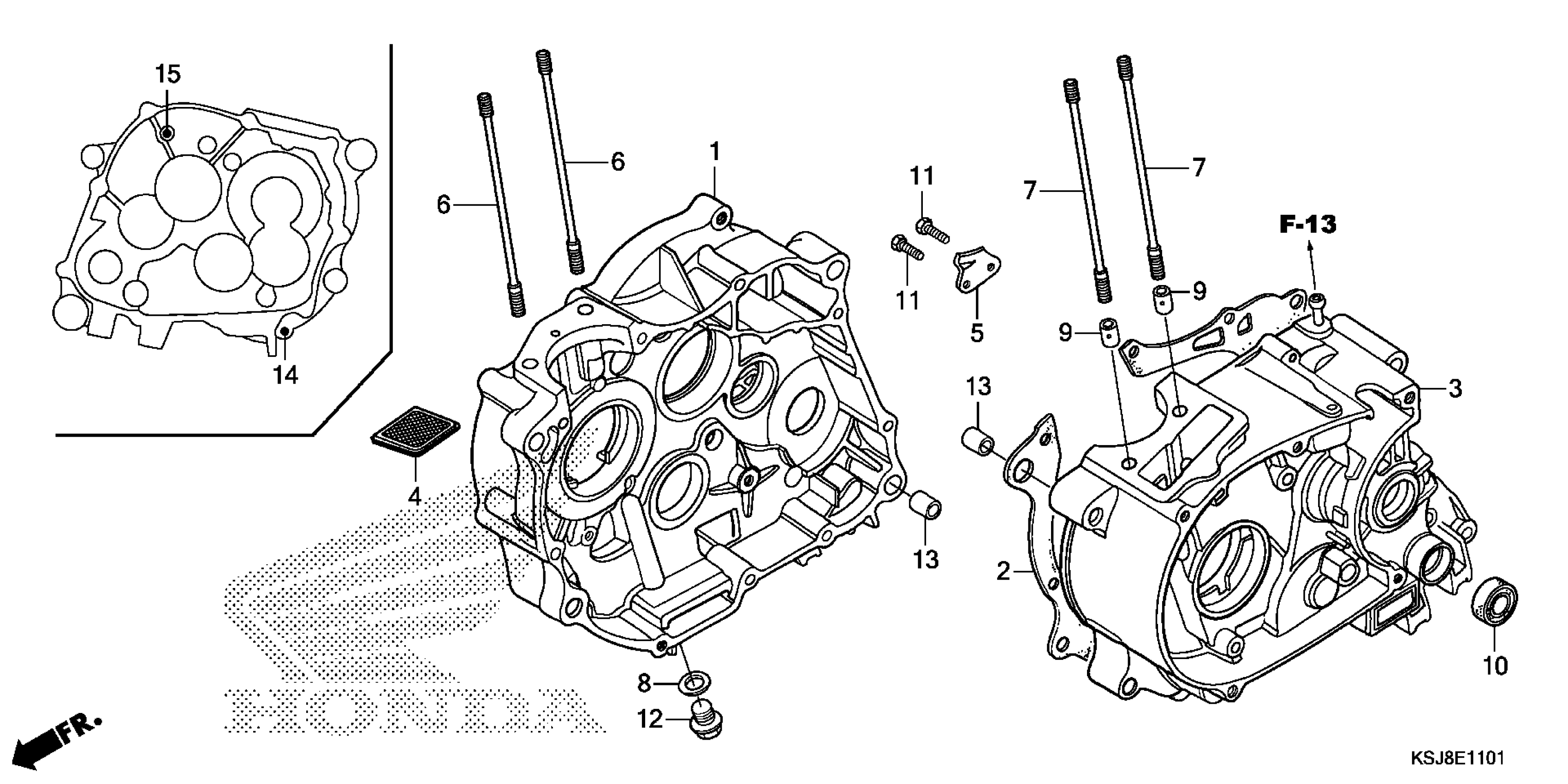

Honda CRF100FAC (13) CRF100F, JPN, VIN# JH2HE031-DK500001 CRANKCASE (CRF100F) Diagram

#

Description

Price

1

CRANKCASE, R.

11100-436-020

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-KN4-751.

11191-KN4-752

$20.77

3

CRANKCASE, L.

11200-KN4-761

Unavailable

4

SCREEN, OIL FILTER

15421-035-010

$3.80

5

PLATE, RATCHET GUIDE

28259-149-000

Unavailable

6

BOLT B, CYLINDER STUD

90032-152-000

$6.72

7

BOLT B, CYLINDER STUD

90032-436-000

$12.50

8

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

9

PIN, DOWEL (10X16)

90701-KA8-000

$3.85

10

OIL SEAL (12X24X5) (NOK)

91203-436-004

$6.16

11

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

12

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

13

PIN, DOWEL (12X20)

94301-12200

$2.29

14

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

15

BOLT, FLANGE (6X55)

96001-06055-00

$1.62
