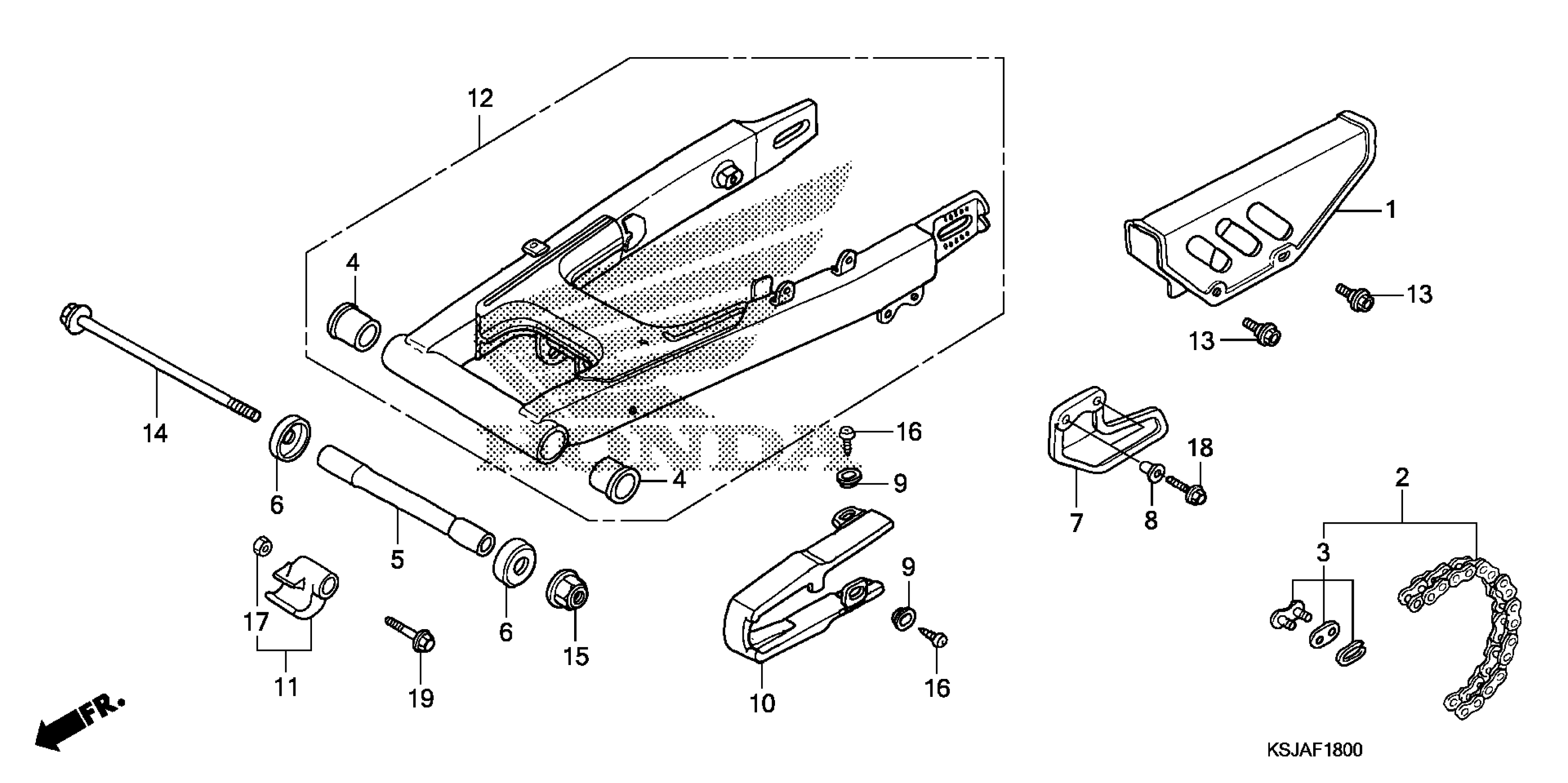

Honda CRF100FA (11) MOTORCYCLE, JPN, VIN# JH2HE030-BK900001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-GN1-760

$32.30

2

CHAIN, DRIVE (DID428HD-118RB) (DAIDO)

40530-KSJ-003

$62.14

2

CHAIN, DRIVE (DID428HD-118RB) (DAIDO) This part replaces 40530-KSJ-005.

40530-KSJ-003

$62.14

3

MASTER LINK (RK EXCEL)

40531-KFC-902

$5.30

3

MASTER LINK (DAIDO)

40531-355-013

$4.15

4

BUSH, PIVOT THRUST

52109-GJ1-003

$18.43

5

COLLAR, SWINGARM

52141-GN1-000

$46.31

6

CAP, DUST SEAL (NOK)

52144-360-005

$11.80

6

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-003.

52144-360-005

$11.80

7

GUARD, CHAIN

52156-GN1-000

$26.05

8

COLLAR, CHAIN GUARD

52157-GC5-000

$4.48

9

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

10

SLIDER, CHAIN

52175-GN1-000

$27.25

11

SLIDER, CHAIN (UPPER)

52180-GN1-000

$15.16

12

SWINGARM SUB-ASSY., RR. *NH146M* (ACCURATE SILVER METALLIC) | Extreme red R292R;

52200-KSJ-000ZA

Unavailable

13

BOLT, FLANGE (6MM)

90111-187-000

$5.59

14

BOLT, SWINGARM PIVOT

90121-GN1-000

$31.15

15

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

16

SCREW, TAPPING (5X8)

93901-25080

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

BOLT, FLANGE (6X18)

96300-06018-00

$1.49

19

BOLT, FLANGE (6X28)

96300-06028-00

$1.49
