Partiron

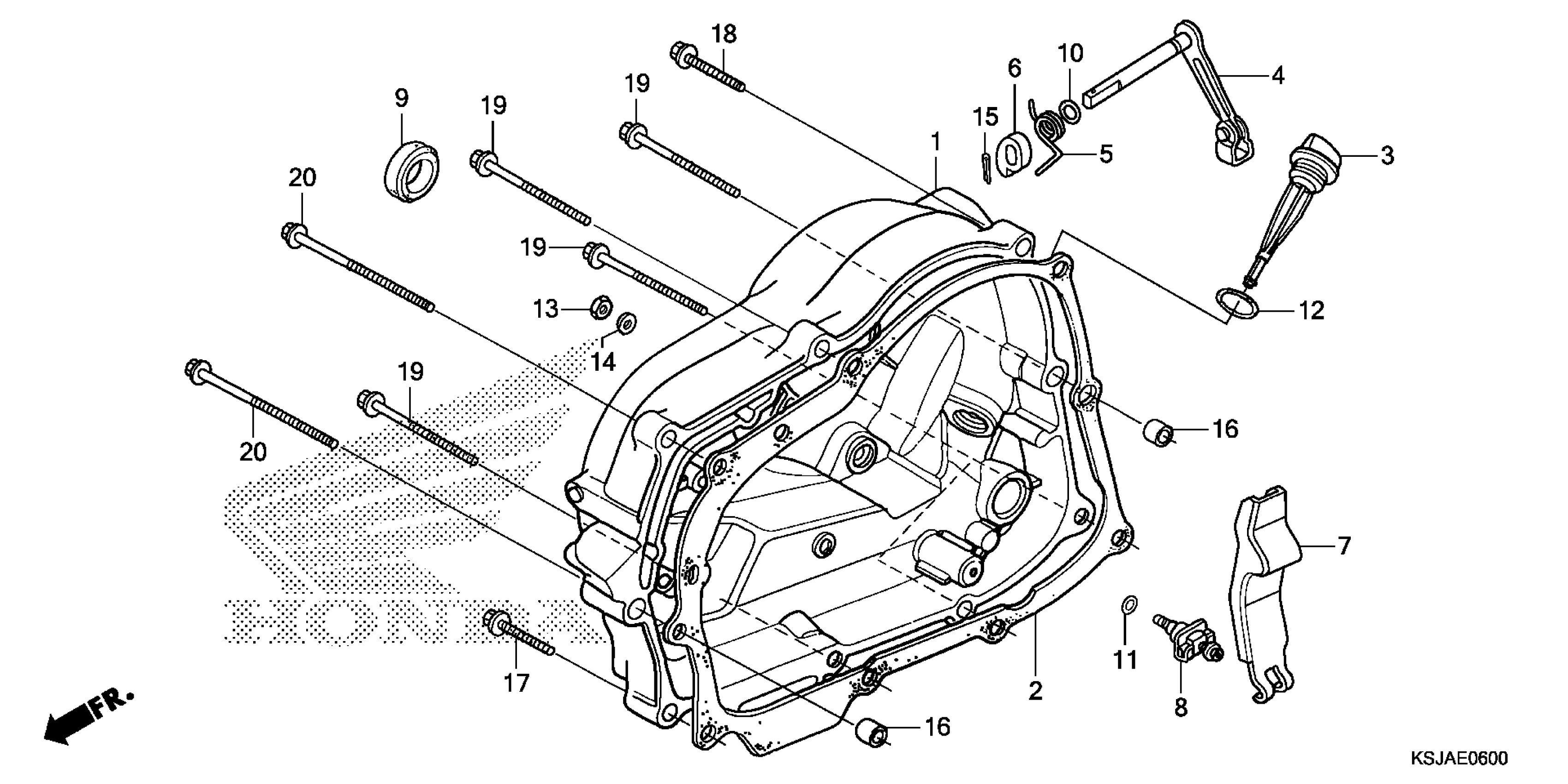

Honda CRF100FA (11) MOTORCYCLE, JPN, VIN# JH2HE030-BK900001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-GN1-A81

$137.84

2

GASKET, R. This part replaces 11393-KN4-751.

11393-KN4-752

$16.75

3

DIPSTICK, OIL

15650-KA9-680

$7.25

4

LEVER, CLUTCH

22810-GN1-760

$40.65

5

SPRING, CLUTCH LEVER

22815-149-000

$2.32

6

CAM, CLUTCH LIFTER

22821-116-000

$7.22

7

LEVER, CLUTCH ADJUSTING

22830-436-000

$20.54

8

SCREW, CLUTCH ADJUSTING

22831-436-000

$24.49

9

OIL SEAL (18X29X7)

91204-286-003

$4.02

10

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$2.80

10

O-RING (6.8X1.9)

91306-PJ4-000

$2.80

10

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$2.80

11

O-RING (6MM)

91301-704-000

$2.71

12

O-RING (18X3)

91307-035-000

$2.71

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

13

NUT, HEX. (6MM)

94001-06200-0S

$1.19

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

14

WASHER, PLAIN (6MM)

94101-06800

Unavailable

15

PIN, SPLIT (2.0X15)

94201-20150

$0.94

16

PIN, DOWEL (8X14)

94301-08140

$2.04

17

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

18

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

19

BOLT, FLANGE (6X80)

96001-06080-00

$2.01

20

BOLT, FLANGE (6X100)

96001-06100-00

$1.78
