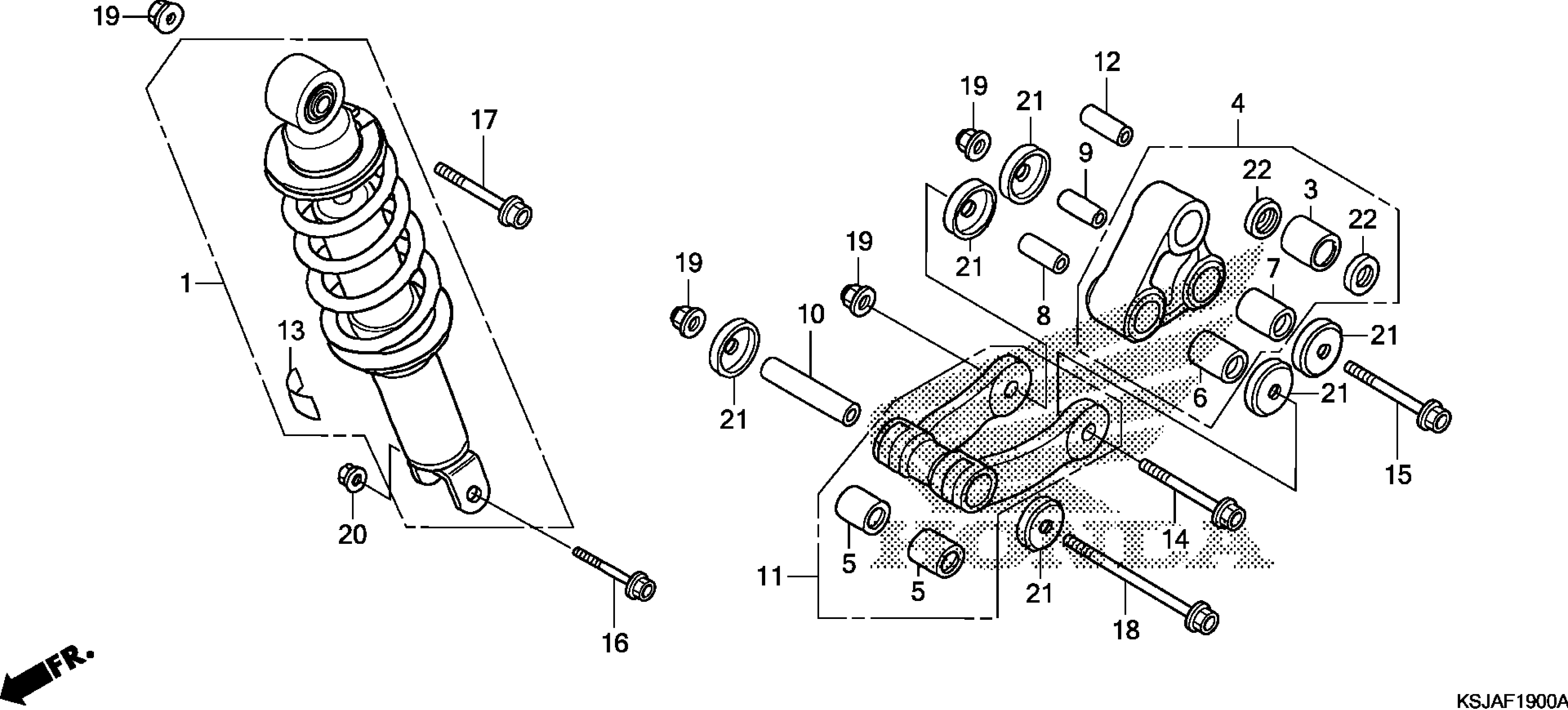

Honda CRF100FA (11) MOTORCYCLE, JPN, VIN# JH2HE030-BK900001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR. (COO) (SHOWA) This part replaces 52400-KSJ-A31.

52400-KSJ-305

$533.38

1

CUSHION ASSY., RR. (COO) (SHOWA)

52400-KSJ-305

$533.38

3

BUSH, DAMPER (LOWER)

52452-GN1-000

$12.22

4

ARM SUB-ASSY., CUSHION

52465-KSJ-000

$168.25

5

BUSH, CUSHION CONNECTING ROD

52472-GJ1-003

$24.47

6

BUSH, CUSHION ARM

52472-GN1-000

$24.49

7

BUSH, CUSHION ARM

52472-KN4-A60

$20.13

8

COLLAR, CONNECTING ROD PIVOT

52473-GE2-000

$18.43

9

COLLAR, CUSHION ARM

52464-GW6-000

$7.89

10

COLLAR, CONNECTING ROD

52473-GN1-000

$15.93

11

ROD SUB-ASSY., CUSHION CONNECTING

52475-KTK-000

$182.46

12

COLLAR, DAMPER (LOWER)

52486-GN1-000

$9.32

13

LABEL, RR. DAMPER (ENGLISH)

87516-KV6-610

$4.93

14

BOLT, FLANGE (10X61)

90128-GN1-000

$6.84

15

BOLT, FLANGE (10X70)

90128-GC5-000

$14.33

16

BOLT, FLANGE (8X47)

90150-GN1-000

$5.66

17

BOLT, FLANGE (10X55) This part replaces 90152-GN1-000.

95801-10055-00

$1.49

18

BOLT, FLANGE (10X98)

90130-KA3-730

$19.51

19

NUT, U FLANGE (10MM)

90304-KN4-A61

$2.85

20

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

20

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

21

CAP, DUST SEAL

91262-KN4-A61

$6.93

22

SEAL, DAMPER (LOWER)

91263-GN1-003

$4.75
