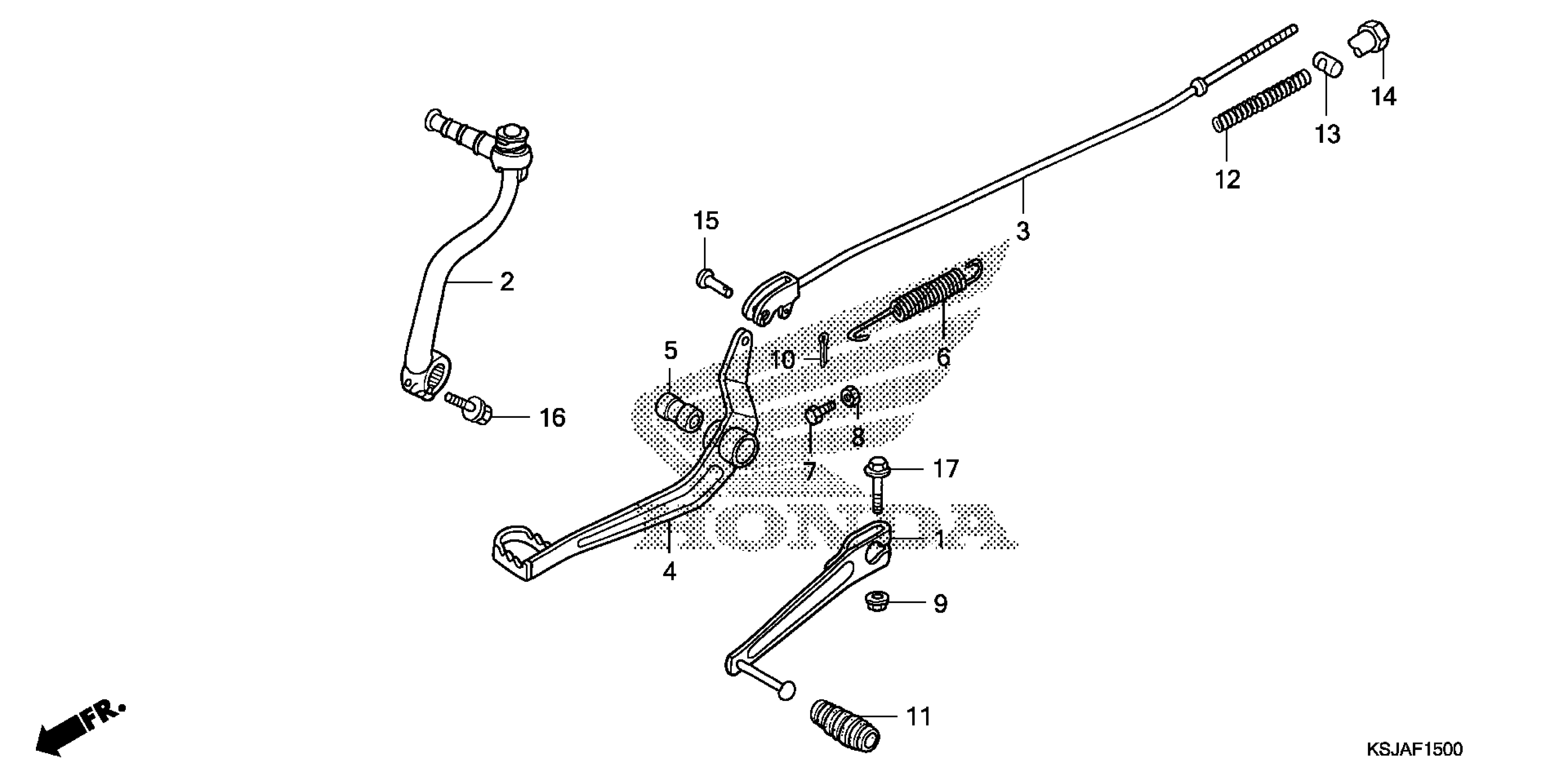

Honda CRF100FA (11) MOTORCYCLE, JPN, VIN# JH2HE030-BK900001 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-KN4-A60

$41.74

1

PEDAL, GEARSHIFT This part replaces 24701-KSJ-305.

24701-KN4-A60

$41.74

2

ARM ASSY., KICK STARTER (COO)

28300-KSJ-305

$65.49

2

ARM ASSY., KICK STARTER (COO) This part replaces 28300-KSJ-670.

28300-KSJ-305

$65.49

3

ROD, RR. BRAKE

43451-KSJ-000

$14.26

4

PEDAL, BRAKE This part replaces 46500-KSJ-305.

46500-KSJ-670

$51.93

4

PEDAL, BRAKE

46500-KSJ-670

$51.93

5

SLEEVE, RR. BRAKE PIVOT

46506-GN1-000

$7.88

6

SPRING, BRAKE PEDAL

46514-MB0-000

$9.38

7

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

8

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM)

94001-06200-0S

$1.49

9

NUT, FLANGE (6MM)

94050-06000

$1.49

10

PIN, SPLIT (2.0X12)

94201-20120

$1.49

11

RUBBER, CHANGE PEDAL

95011-40000

$1.49

12

SPRING A, BRAKE ROD

95014-73100

$1.49

13

JOINT B, BRAKE ARM

95015-32001

$1.49

14

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

15

PIN C, JOINT

95015-53000

$3.06

16

BOLT, FLANGE (6X25)

96300-06025-00

$1.49

17

BOLT, FLANGE (6X28)

96300-06028-00

$1.49
