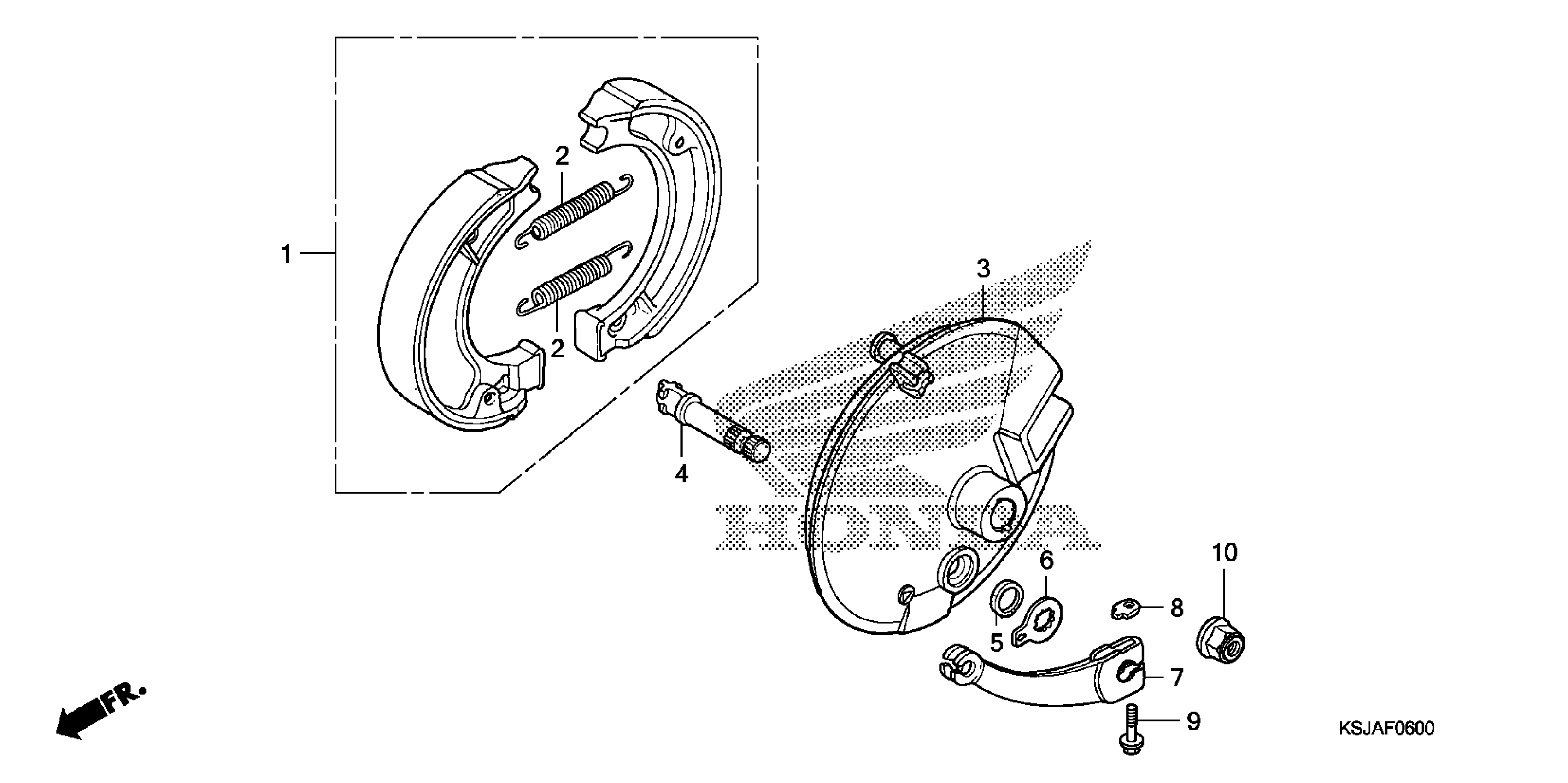

Honda CRF100FA (11) MOTORCYCLE, JPN, VIN# JH2HE030-BK900001 FRONT BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK)

06430-GN1-730

$30.45

SHOE SET, BRAKE (JB NH FE)

06450-GT8-B40

$32.72

SPRING, BRAKE SHOE

43151-GC4-000

$4.76

PANEL, FR. BRAKE

45100-KN4-A60

$76.05

CAM, FR. BRAKE

45131-GC4-701

$20.45

DUST SEAL, BRAKE CAM (NOK)

45134-GC4-701

$4.48

INDICATOR, FR. BRAKE

45145-GN1-760

$3.87

ARM, FR. BRAKE

45410-KN4-A60

$14.25

NUT, FR. BRAKE ARM

45436-GN4-680

$2.23

BOLT, FLANGE (6X30)

90112-KV8-920

$6.25

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85
