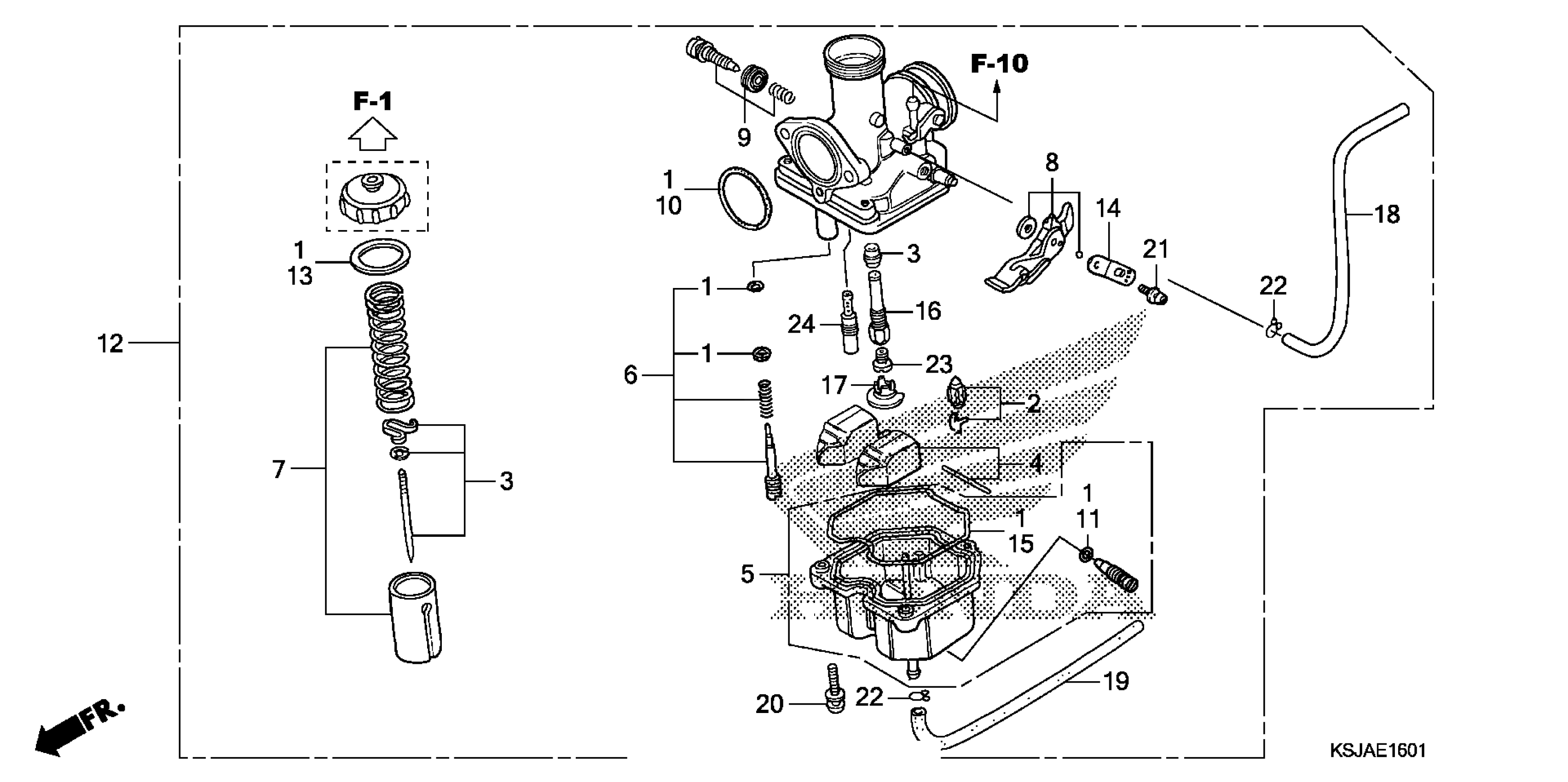

Honda CRF100FA (11) MOTORCYCLE, JPN, VIN# JH2HE030-BK900001 CARBURETOR (CRF100F) Diagram

GASKET SET

16010-KN4-A10

$13.23

VALVE SET, FLOAT

16011-KN4-A61

$45.56

NEEDLE SET, JET

16012-KSJ-A01

$29.38

FLOAT SET

16013-KN4-A10

$34.66

CHAMBER SET, FLOAT

16015-KN4-A10

$97.52

SCREW SET A

16016-KSJ-A01

$18.16

VALVE SET, THROTTLE

16022-KN4-A61

$33.92

LEVER SET,CHOKE This part replaces 16025-KCN-751.

16025-KCH-671

$38.30

SCREW SET B

16028-KEB-G01

$12.44

SCREW SET B This part replaces 16028-KEH-900.

16028-KEB-G01

$12.44

O-RING (2.4X29)

16075-GHB-B70

$7.81

O-RING (1.3X4.3)

16075-GHB-640

$2.92

CARBURETOR ASSY. (PDCBW A)

16100-KSJ-A31

$248.28

GASKET, TOP

16110-KN4-651

$7.69

PLATE, STAY

16119-440-004

$9.75

GASKET, FLOAT CHAMBER

16163-KCS-920

$11.91

HOLDER, NEEDLE JET

16165-KN4-A61

$30.17

HOLDER, JET

16168-382-014

$9.81

TUBE, AIR VENT

16199-KN4-A61

$6.10

TUBE, OVERFLOW

16199-435-771

$11.39

SCREW-WASHER (4X16)

93892-04016-08

$1.49

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

SCREW-WASHER (5X12)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

CLIP, TUBE (B6.5)

95002-02659

$1.49

JET, MAIN (#92) | (Optional).

99101-GHB-0920

$7.98

JET, MAIN (#98)

99101-GHB-0980

$6.40

JET, MAIN (#92) | (Optional). This part replaces 99101-393-0920.

99101-GHB-0920

$7.98

JET, SLOW (#35)

99104-KN4-0350

$11.04
