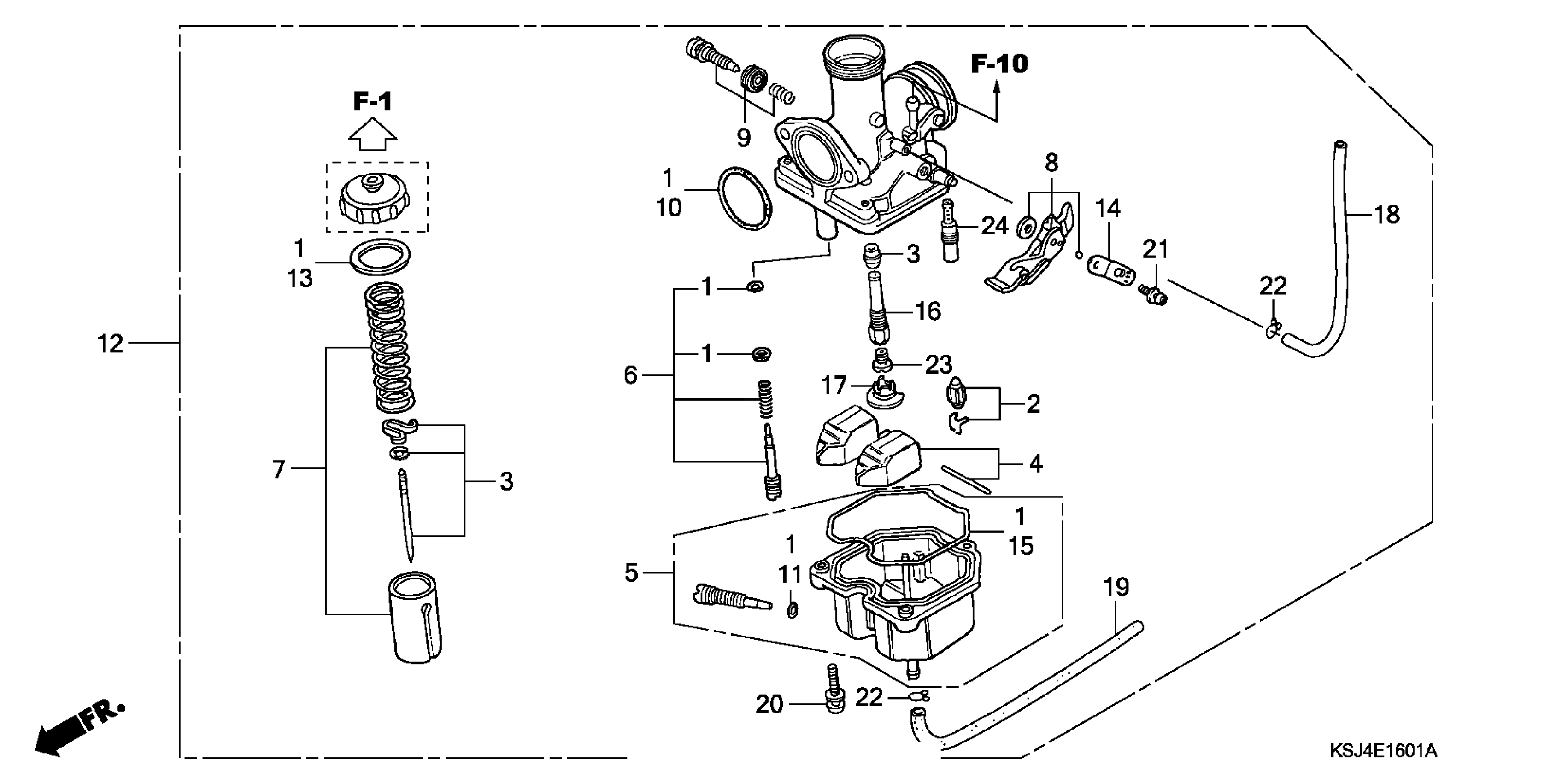

Honda CRF100FA (04) MOTORCYCLE, JPN, VIN# JH2HE030-4K300001 TO JH2HE030-4K399999 CARBURETOR (CRF100F) Diagram

#

Description
Price

1

GASKET SET

16010-KN4-A10

$13.23

2

VALVE SET, FLOAT

16011-KN4-A10

$36.03

3

NEEDLE SET, JET

16012-KN4-A61

$31.64

4

FLOAT SET

16013-KN4-A10

$34.66

5

CHAMBER SET, FLOAT

16015-KN4-A10

$97.52

6

SCREW SET A

16016-KN4-L10

$17.83

7

VALVE SET, THROTTLE

16022-KN4-A61

$33.92

8

VALVE SET, STARTER This part replaces 16025-KEH-900.

16046-KCH-890

$64.75

8

VALVE SET, STARTER

16046-KCH-890

$64.75

9

SCREW SET B

16028-KEB-G01

$12.44

9

SCREW SET B This part replaces 16028-KEH-900.

16028-KEB-G01

$12.44

10

O-RING (2.4X29)

16075-GHB-B70

$7.81

11

O-RING (1.3X4.3)

16075-GHB-640

$2.92

12

CARBURETOR ASSY. (PDC3L B) This part replaces 16100-KN4-A61.

16100-KN4-A62

$239.66

12

CARBURETOR ASSY. (PDC3L B)

16100-KN4-A62

$239.66

13

GASKET, TOP

16110-KN4-651

$7.69

14

PLATE, STAY

16119-440-004

$9.75

15

GASKET, FLOAT CHAMBER

16163-KCS-920

$11.91

16

HOLDER, NEEDLE JET

16165-KN4-A61

$30.17

17

HOLDER, JET

16168-382-014

$9.81

18

TUBE, AIR VENT

16199-KN4-A61

$6.10

19

TUBE, OVERFLOW

16199-435-771

$11.39

20

SCREW-WASHER (4X16)

93892-04016-08

$1.49

20

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

21

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

21

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

22

CLIP, TUBE (B6.5)

95002-02659

$1.49

23

JET, MAIN (#98) This part replaces 99101-393-0980.

99101-GHB-0980

$6.40

23

JET, MAIN (#92) | (Optional).

99101-GHB-0920

$7.98

23

JET, MAIN (#98)

99101-GHB-0980

$6.40

23

JET, MAIN (#92) | (Optional). This part replaces 99101-393-0920.

99101-GHB-0920

$7.98

24

JET, SLOW (#35)

99104-KN4-0350

$11.04
