Description

Price

1

CABLE A, THROTTLE

17910-MJP-G51

$28.53

2

CABLE B, THROTTLE

17920-MJP-G51

$28.53

3

GUIDE, THROTTLE CABLE

17925-MJP-G50

$11.19

4

HOLDER, CONNECTOR

32121-MJP-G50

$3.93

5

STAY, CLIP

32151-MJP-G50

$7.82

6

SWITCH ASSY. This part replaces 35130-MJP-G81.

35130-MJP-G83

$154.49

6

SWITCH ASSY. This part replaces 35130-MJP-G82.

35130-MJP-G83

$154.49

7

SWITCH ASSY. This part replaces 35200-MJP-G82.

35200-MJP-G83

$203.35

8

CLAMP, CABLE

53111-MJP-G50

$13.78

9

GRIP ASSY., THROTTLE

53140-MGE-000

$28.88

10

GRIP, L. HANDLE

53166-MGE-000

$16.28

11

CLIP, RETURN HOSE

53781-SE0-952

$7.00

12

COVER, LOCK NUT

88130-MFG-D00

$1.59

13

MIRROR, R. BACK (COO)

88210-MJP-305

$83.75

14

MIRROR, L. BACK

88220-MGS-D30

$75.61

15

BOLT, FLANGE (6MM)

90107-KSE-000

$2.21

16

BOLT, ADAPTER (10MM)

90130-MGS-D31

$7.82

17

NUT, HEX. (10MM) (LEFT HAND THREAD)

90310-MGS-D31

$2.71

18

SCREW-WASHER (5X25)

90508-MGE-D00

$1.19

19

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.01

20

CLAMP, HARNESS

90690-MEF-800

$1.21

21

CLIP, CONNECTOR (BEIGE)

91533-SDA-003

$2.34

22

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.66

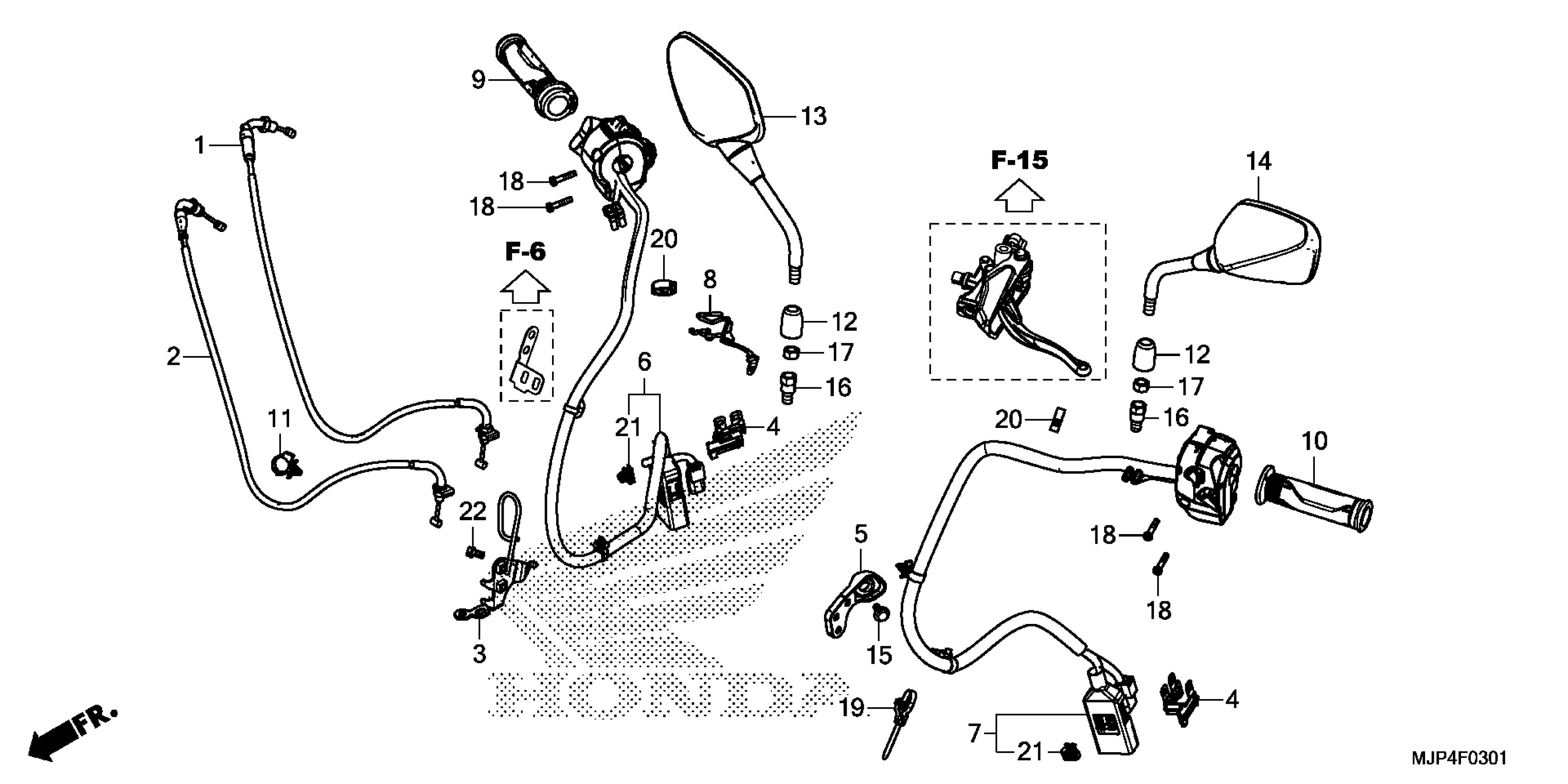

Honda CRF1000DAC (17) MOTORCYCLE, JPN, VIN# JH2SD041-HK100001 SWITCH@CABLE Diagram
