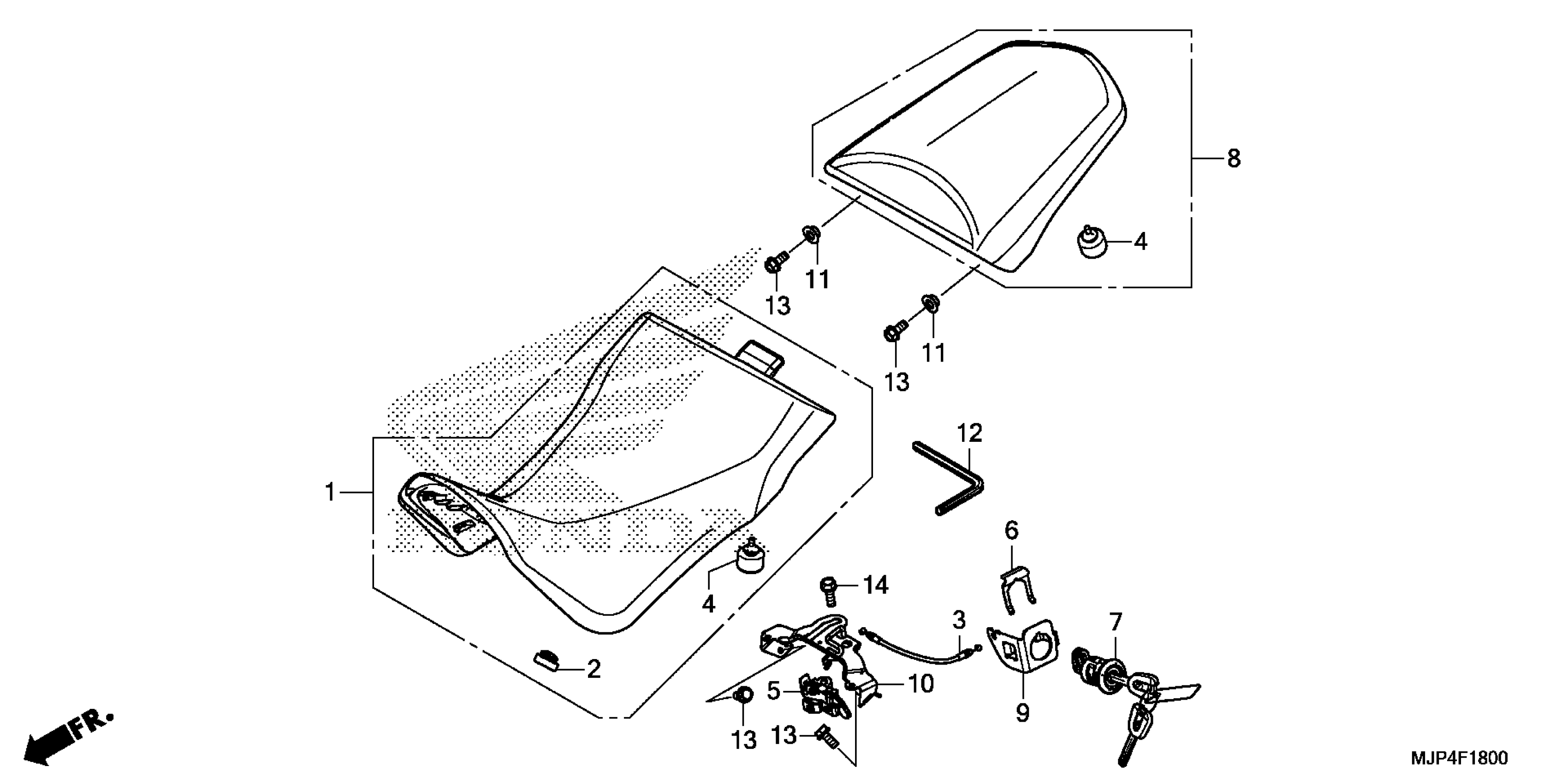

Honda CRF1000DAC (17) MOTORCYCLE, JPN, VIN# JH2SD041-HK100001 SEAT Diagram

SEAT, MAIN (TYPE1)

77100-MJP-G51ZB

$229.41

RUBBER, SEAT MOUNTING

77110-KA3-730

$5.05

CABLE, SEAT LOCK

77156-MJP-G51

$7.92

RUBBER, SEAT SETTING

77206-GF0-000

$5.46

HOOK, SEAT CATCH

77220-MJF-A01

$40.48

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.74

KEY, SEAT LOCK (WAVE)

77239-MJM-D61

$139.70

SEAT, PILLION (TYPE1)

77300-MJP-DA0ZC

$239.92

STAY, SEAT LOCK CABLE

77321-MJP-G50

$12.66

STAY, SEAT CATCH

77582-MJP-G50

$28.46

COLLAR, FENDER

80118-MFJ-D00

$4.15

WRENCH, HEX. (5MM)

89221-MGZ-J00

$2.21

BOLT, FLANGE (6X14)

95701-06014-04

$1.49

BOLT, FLANGE (6X20)

95701-06020-04

$1.49
