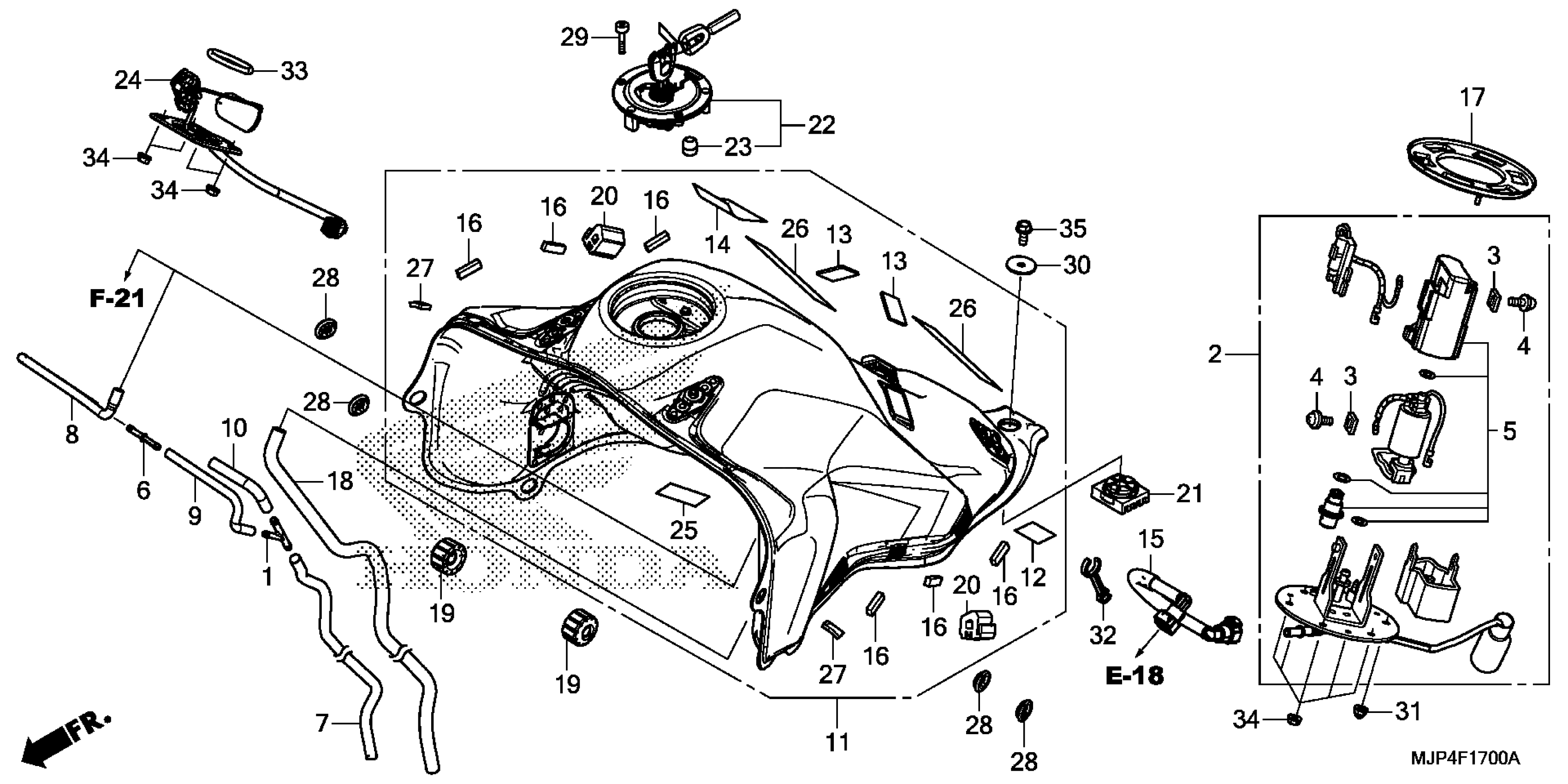

Honda CRF1000DAC (17) MOTORCYCLE, JPN, VIN# JH2SD041-HK100001 FUEL TANK@FUEL PUMP Diagram

#

Description
Price

2

PUMP UNIT, FUEL (MSDS) This part replaces 16700-MJP-G51.

16700-MJP-G52

$621.25

2

PUMP UNIT, FUEL (MSDS)

16700-MJP-G52

$621.25

3

STOPPER

16711-MGS-D31

$4.47

4

SCREW (4X6.6)

16712-MGS-D31

$1.74

5

FILTER ASSY., FUEL This part replaces 16730-MGS-D31.

16730-MKT-D01

$38.84

5

FILTER ASSY., FUEL This part replaces 16730-MKA-D82.

16730-MKT-D01

$38.84

5

FILTER ASSY., FUEL This part replaces 16730-MKA-D83.

16730-MKT-D01

$38.84

5

FILTER ASSY., FUEL

16730-MKT-D01

$38.84

11

TANK ASSY., FUEL (TYPE1)

17500-MJP-DA0ZA

$1,075.97

12

FILM, PROTECTOR

17503-MBT-D50

$2.08

13

RUBBER, TANK GUARD

17515-KFB-840

$1.42

14

TAPE, TANK PROTECTOR

17515-MEG-300

$2.93

15

HOSE, FUEL FEED

17526-MJP-G51

$68.74

16

FASTENER, DUAL LOCK (8X25)

17541-MJP-G50

$2.09

17

GASKET, BASE

17574-MGS-D30

$22.44

18

TUBE, FUEL TANK DRAIN

17590-MJP-G50

$21.29

19

CUSHION, FR. FUEL TANK

17611-KE8-000

$4.02

20

CUSHION, FUEL TANK

17611-MJP-G50

$14.15

21

CUSHION, RR. FUEL TANK

17613-KFB-010

$6.60

22

CAP COMP This part replaces 17620-MJE-D01.

17620-MJE-D04

$205.01

22

CAP COMP This part replaces 17620-MJE-D02.

17620-MJE-D04

$205.01

23

SEAL, BREATHER This part replaces 17621-MGP-D61.

17621-MGP-D62

$4.90

24

FUEL UNIT

37800-MJP-G51

$103.72

25

TAPE, COVER

64382-MM5-300

$2.44

26

TAPE, PROTECTION

77281-MFL-D20

$4.65

27

RUBBER, RR. FENDER

80102-MJS-A90

$1.99

28

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

29

BOLT, SOCKET (4X24) (SUS)

90110-MGP-D60

$3.11

30

WASHER, TANK SETTING

90136-428-870

$1.44

31

NUT, CAP (6MM)

90201-415-000

Unavailable

32

CLAMP

90650-MJP-G50

$4.35

33

O-RING (39.5X5)

91305-KEH-601

$7.44

34

NUT, FLANGE (6MM)

94050-06000

$0.60

35

BOLT, FLANGE (6X14)

95701-06014-08

$1.63
