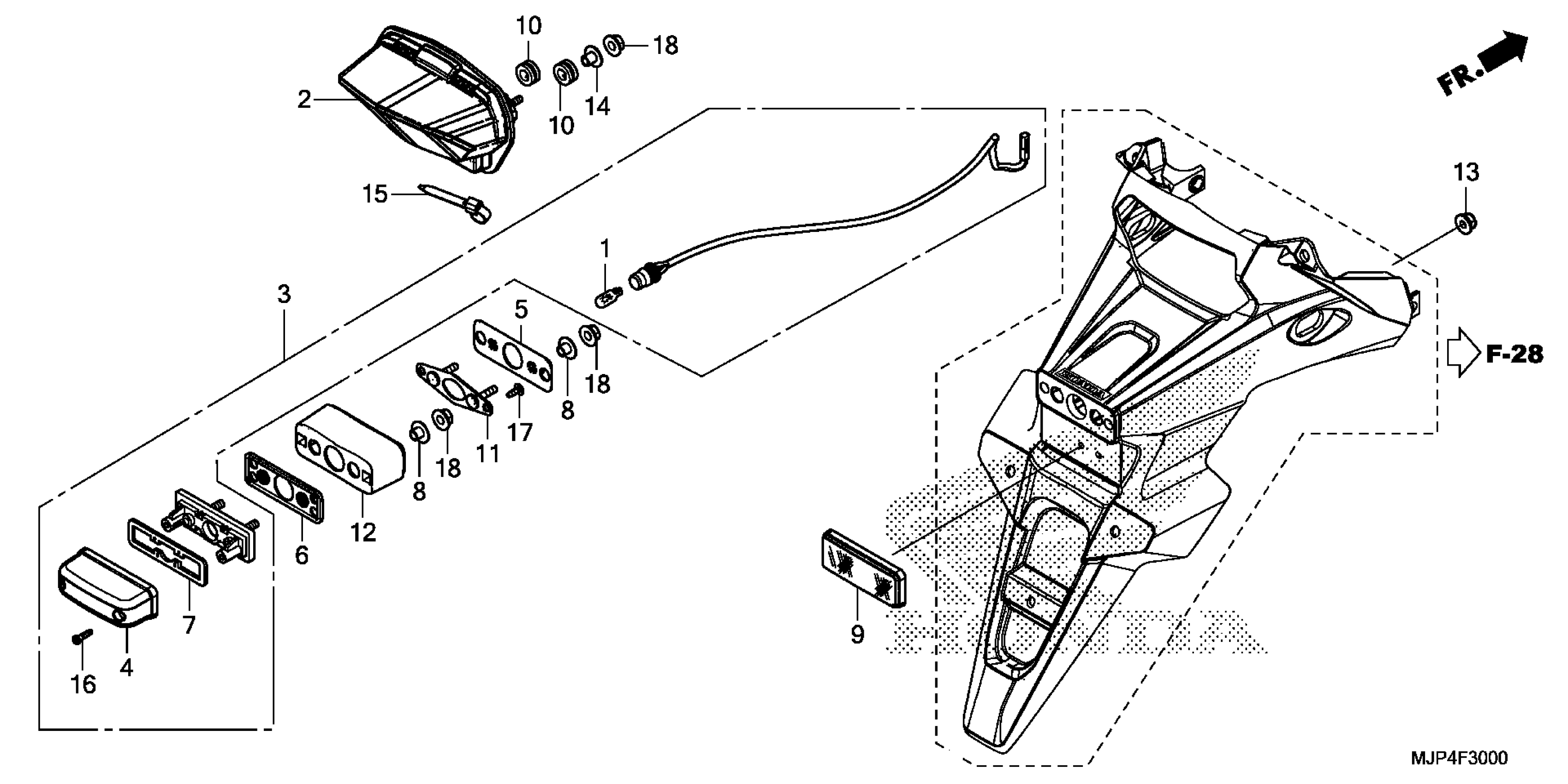

Honda CRF1000D3AC (17) MOTORCYCLE, JPN, VIN# JH2SD045-HK100001 TAILLIGHT@LICENSE LIGHT Diagram

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

TAILLIGHT UNIT (COO)

33701-MJP-305

$291.95

LIGHT ASSY., LICENSE (12V 5W) (COO)

33720-MJP-305

$86.31

COVER, LICENSE

33721-GET-671

$19.11

RUBBER, LICENSE LIGHT

33728-KPP-T00

$4.41

RUBBER, LICENSE LIGHT

33728-MJP-G50

$4.18

GASKET, LENS

33729-MCZ-003

$9.48

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.39

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.94

STAY, LICENSE LIGHT BRACKET

80118-MGE-670

$7.74

BRACKET, LICENSE LIGHT

80201-MGE-670

$8.20

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

COLLAR, HEADLIGHT BRACKET

90501-MJ6-000

$4.48

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

SCREW, TAPPING (4X16)

93901-24480

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49
