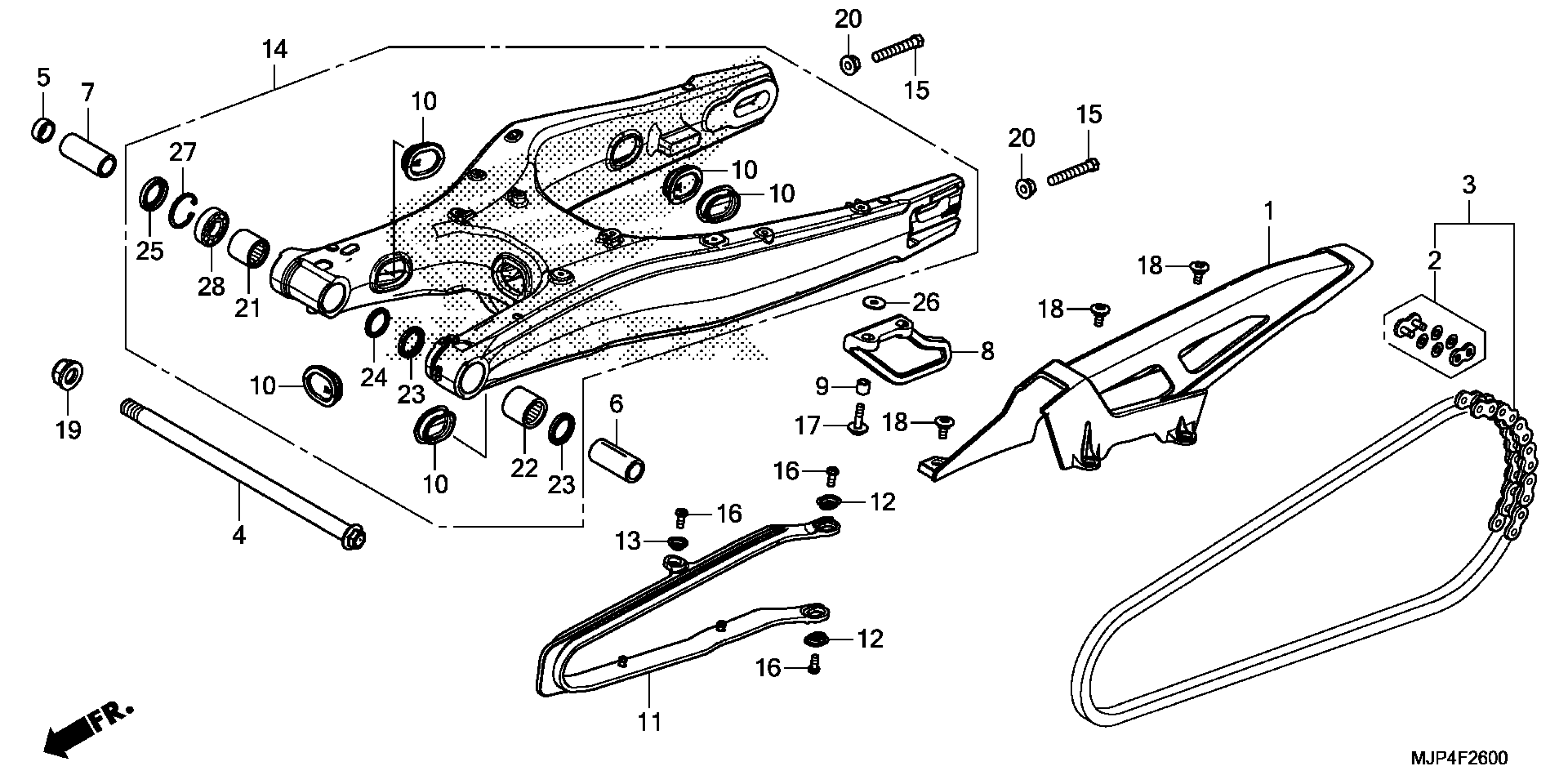

Honda CRF1000D3AC (17) MOTORCYCLE, JPN, VIN# JH2SD045-HK100001 SWINGARM Diagram

CASE, DRIVE CHAIN

40510-MJP-G50

$99.85

MASTER LINK SET (DAIDO)

40535-MJM-D01

$13.31

CHAIN, DRIVE (DID525HV3-130ZB) (DAIDO) (STANDARD LINK 124L)

40540-MJP-G51

$218.70

BOLT, SWINGARM PIVOT

52101-MJP-G50

$53.03

COLLAR A, PIVOT

52141-MJP-G50

$5.70

COLLAR, L. PIVOT DISTANCE

52142-MJP-G50

$16.85

COLLAR, R. PIVOT DISTANCE

52143-MJP-G50

$16.38

GUARD, CHAIN

52156-MJP-G50

$20.11

COLLAR, CHAIN GUARD

52157-MJP-G50

$3.41

CAP, RR. SWINGARM

52161-KZZ-900

$2.74

SLIDER, CHAIN

52170-MJP-G50

$56.98

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

WASHER, CHAIN SLIDER

52171-MAN-620

$3.21

SWINGARM SUB-ASSY., RR.

52200-MJP-G50

$1,334.26

BOLT, HEX. (8X50)

90106-MCF-D00

$2.43

SCREW, PAN (5X12)

90107-MJP-G50

$1.89

BOLT-WASHER (6X25)

90108-KSV-J00

$2.08

BOLT, SPECIAL (6X15)

90114-MGE-D00

$2.05

NUT, SPECIAL U (16MM) This part replaces 90305-MBZ-C50.

90305-MCB-610

$8.43

NUT, SPECIAL U (16MM)

90305-MCB-610

$8.43

NUT, HEX. (10MM)

90309-357-000

$3.40

BEARING, NEEDLE (24X31X28) (NOT AVAILABLE)

91063-MZ1-003

$23.78

BEARING, NEEDLE (NTN)

91071-MT7-003

$24.23

DUST SEAL (25X33X4)

91202-MAL-601

$6.96

OIL SEAL (24X31X3.5) (NOT AVAILABLE)

91203-GC8-003

$9.49

DUST SEAL (23X35X5)

91214-MAL-601

$8.21

WASHER, PLAIN (6MM)

94103-06800

$1.49

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

BEARING, RADIAL BALL (6003)

96100-60030-10

$14.15
