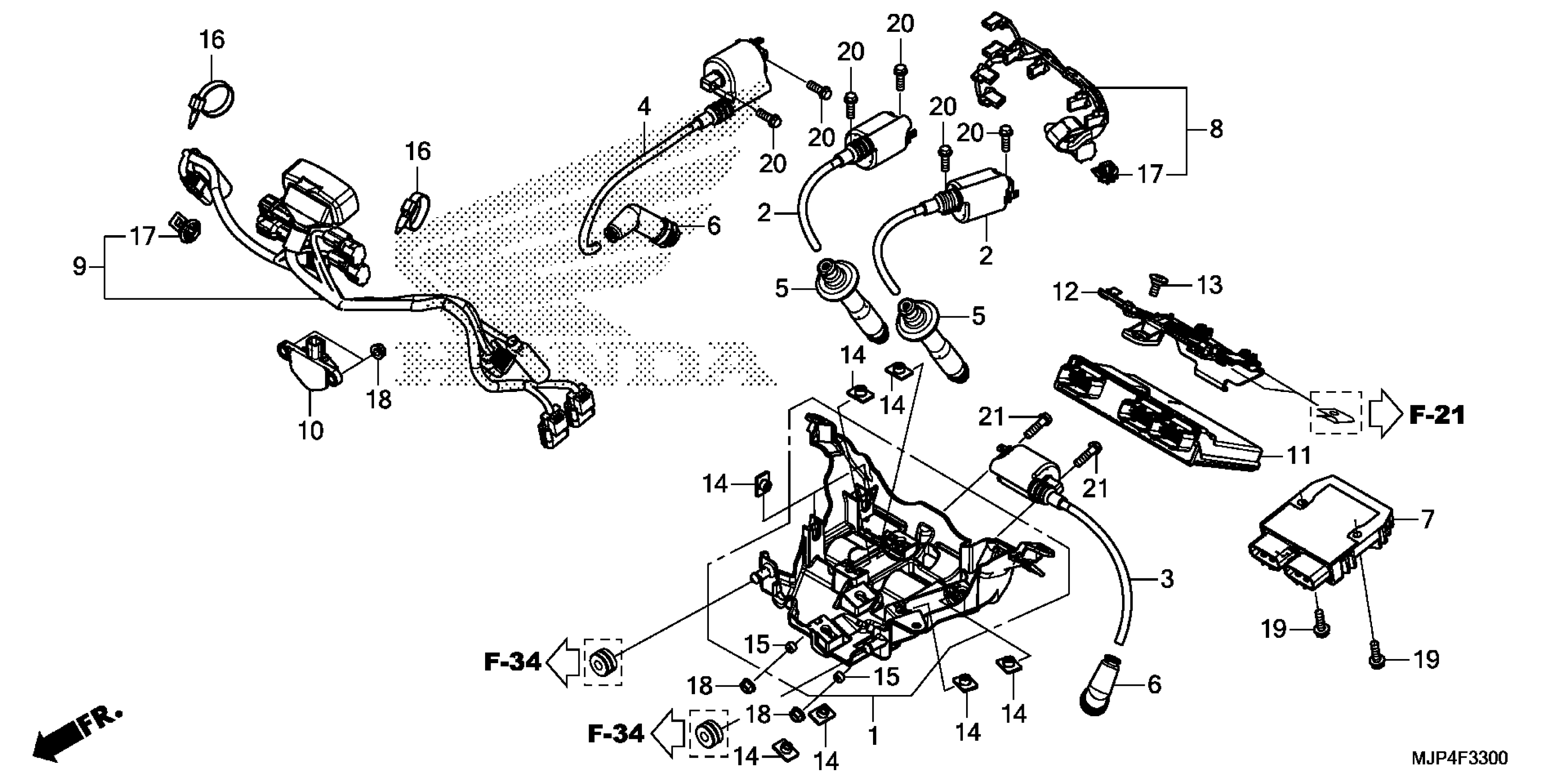

Honda CRF1000D3AC (17) MOTORCYCLE, JPN, VIN# JH2SD045-HK100001 SUB HARNESS@IGNITION COIL Diagram

TRAY, IGNITION COIL

19125-MJP-G50

$63.65

COIL, IGNITION (TOP)

30510-MJP-G51

$74.75

COIL, IGNITION (L)

30530-MJP-G51

$74.75

COIL, IGNITION (R)

30540-MJP-G51

$67.96

CAP ASSY., NOISE SUPPRESSOR

30700-HL4-A01

$46.63

CAP ASSY.

30700-MLG-E01

$45.21

CAP ASSY., NOISE SUPPRESSOR

30701-MJP-G51

Unavailable

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$172.04

SUB-HARNESS, IGNITION

32102-MJP-G50

$25.81

SUB-WIRE HARNESS, FR.

32103-MJP-G80

$102.15

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$138.63

PGM-FI UNIT

38770-MJP-AB1

$1,926.25

STAY, ECU

80127-MJP-G50

$7.50

BOLT, SPECIAL (6X15)

90114-MGE-D00

$1.90

NUT, SPECIAL (6X7)

90303-HA0-680

$3.67

COLLAR, BODY COVER

90312-GF0-000

$2.95

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

NUT, FLANGE (6MM)

94050-06080

$0.60

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.63

BOLT, FLANGE (6X18)

96001-06018-00

$1.66

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
