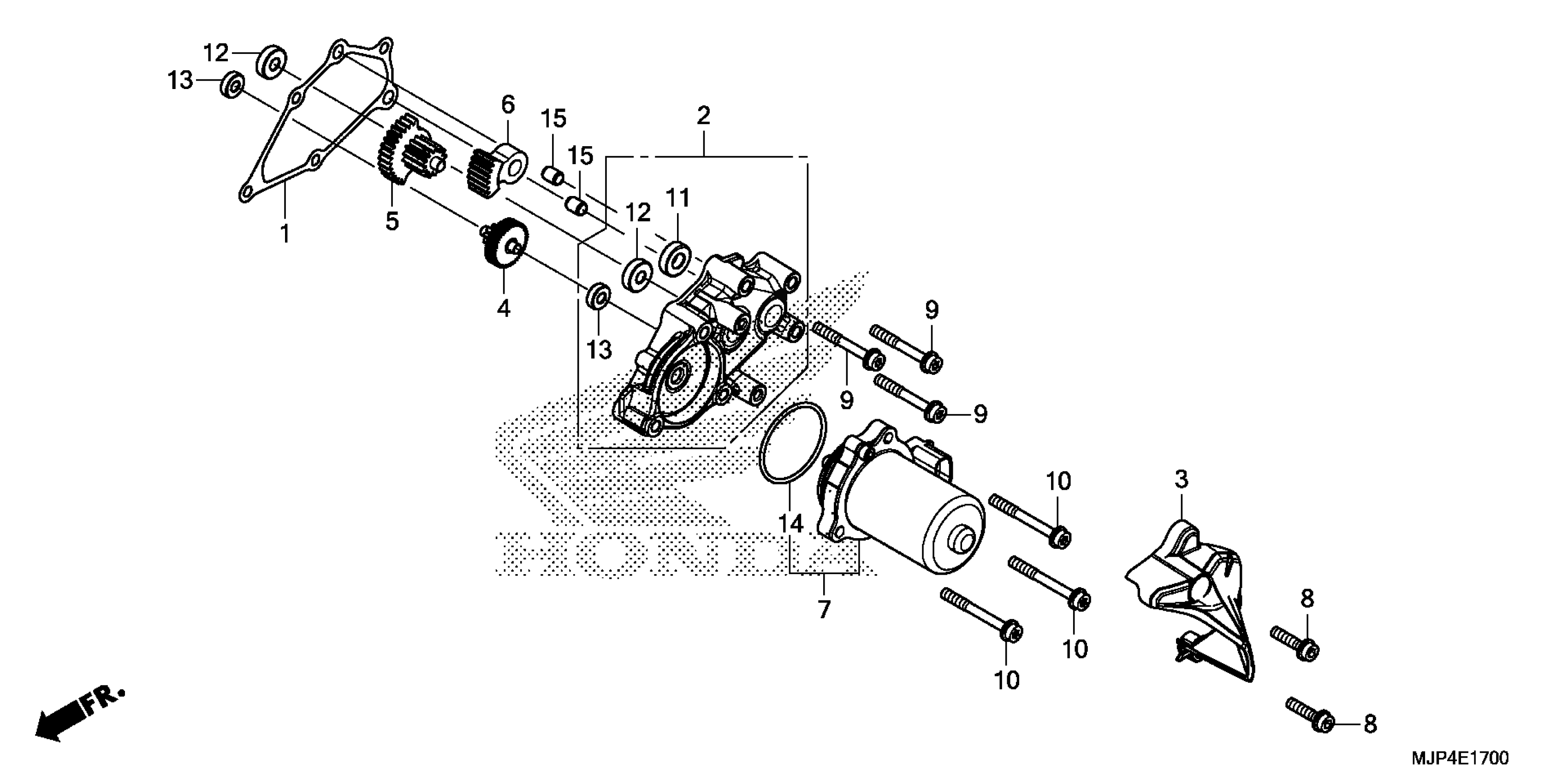

Honda CRF1000D3AC (17) MOTORCYCLE, JPN, VIN# JH2SD045-HK100001 REDUCTION GEAR Diagram

#

Description

Price

1

GASKET, REDUCTION COVER

11397-MJP-G81

$10.00

2

COVER, REDUCTION GEAR

11520-MJP-G80

$82.35

3

COVER, RATIO CONTROL MOTOR

11530-MJP-G80

$28.53

4

GEAR, SHIFT REDUCTION (45T/7T)

24615-MGE-D01

$62.28

5

GEAR, SHIFT REDUCTION (32T/13T)

24616-MGS-D21

$61.41

6

GEAR, SHIFT REDUCTION (42T)

24617-MGE-D01

$50.53

7

MOTOR, RATIO CONTROL This part replaces 31300-MJP-G81.

31300-MJP-G82

$276.75

8

BOLT, FLANGE SOCKET (6X25)

90003-MJP-G50

$2.41

9

BOLT, FLANGE TORX (6X45)

90010-MJP-G80

$4.21

10

BOLT, FLANGE TORX (6X53)

90011-MJP-G80

$4.41

11

BEARING, RADIAL BALL (699ZZ)

91025-MGS-D21

$10.15

12

BEARING, RADIAL BALL (607ZZ)

91026-MGS-D21

$9.03

13

BEARING, RADIAL BALL (696ZZ)

91027-MGS-D21

$8.03

14

O-RING, CONTROL MOTOR

91301-MJP-G81

$2.68

15

PIN A, DOWEL (8X10)

94301-08100

$2.62
