Description

Price

1

RADIATOR, R. (TOYO)

19010-MJP-A61

$550.72

1

RADIATOR, R. (TOYO) This part replaces 19010-MJP-305.

19010-MJP-A61

$550.72

2

NUT, SETTING (6MM)

19014-KEA-003

$2.95

3

SHROUD, R. FAN This part replaces 19015-MJP-G51.

19015-MJP-G52

$34.90

4

SCREW, PAN (4X8.5)

19016-KEA-003

$1.50

5

FAN, COOLING (TOYO)

19020-MGS-D31

$36.42

6

RADIATOR, L. (TOYO)

19020-MJP-G51

$509.91

6

RADIATOR, L. (TOYO) This part replaces 19020-MJP-305.

19020-MJP-G51

$509.91

7

SHROUD, L. FAN This part replaces 19025-MJP-G51.

19025-MJP-G52

$34.76

8

SHROUD, R. RADIATOR

19035-MJP-G50

$29.24

9

SHROUD, L. RADIATOR

19036-MJP-G50

$29.24

10

CAP, RADIATOR

19037-GEE-710

$27.80

11

GRILLE ASSY., R. RADIATOR

19040-MJP-G50

$42.82

12

GRILLE ASSY., L. RADIATOR

19045-MJP-G50

$34.21

13

LABEL, RADIATOR CAP

19046-PAA-A00

$3.25

14

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

15

COLLAR, RADIATOR MOUNTING

19052-MFF-D00

$3.01

16

MOTOR ASSY., FAN

19080-MJP-G51

$180.40

17

CLIP, PULSER WIRE

32925-958-000

$2.76

18

SEAL A, MIDDLE COWL

64212-MJP-G50

$1.63

19

WASHER, SEAT MOUNTING

77302-124-000

$3.08

20

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

21

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.01

22

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

23

BOLT-WASHER (6X16)

90120-KCR-003

$4.19

24

NUT, SPRING (5MM)

90320-GC3-000

$2.13

25

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

26

NUT, FLANGE (3MM)

90315-MFL-003

$2.15

27

BOLT, FLANGE (6X25)

95701-06025-07

$1.66

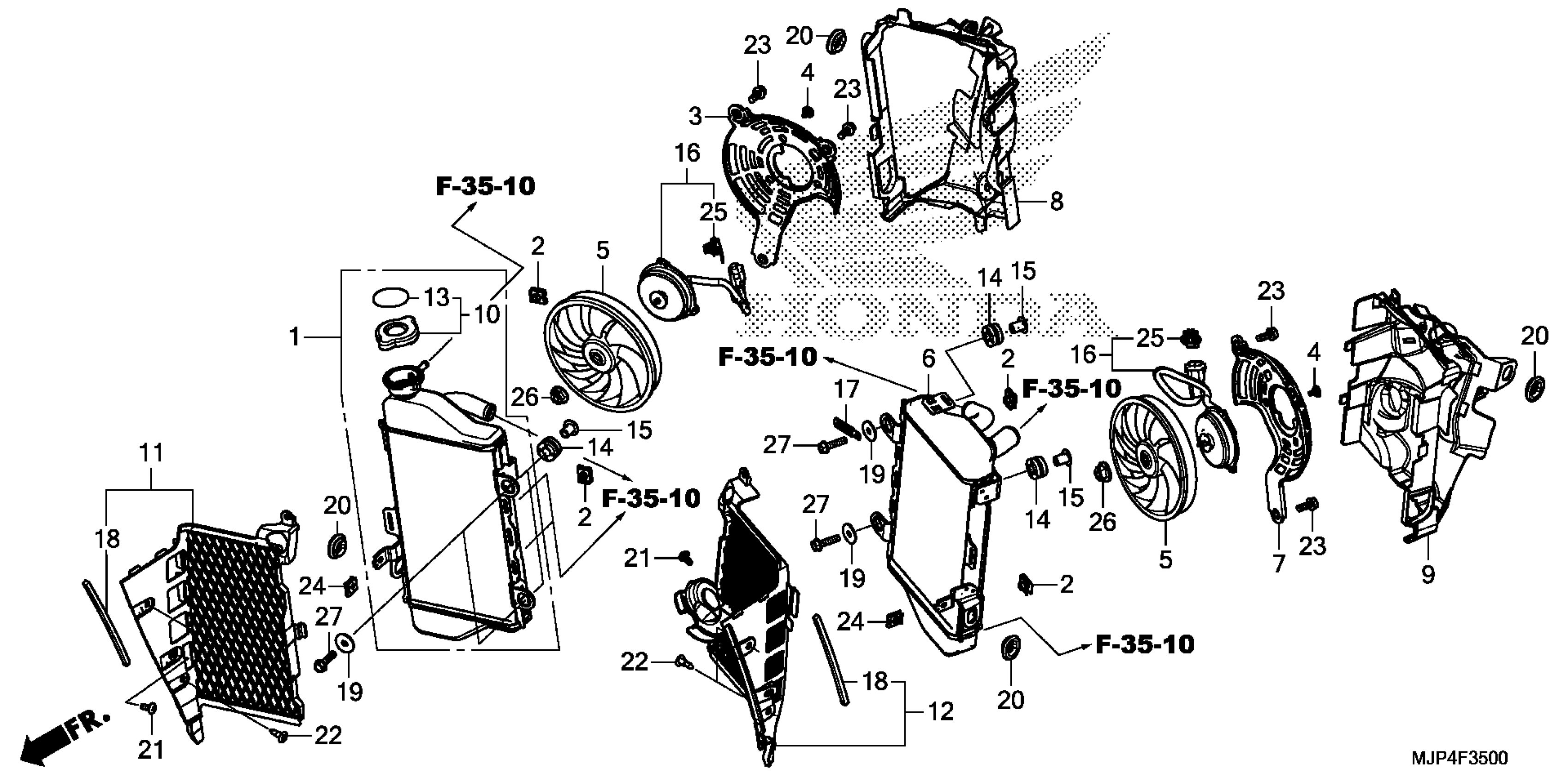

Honda CRF1000D3AC (17) MOTORCYCLE, JPN, VIN# JH2SD045-HK100001 RADIATOR Diagram
