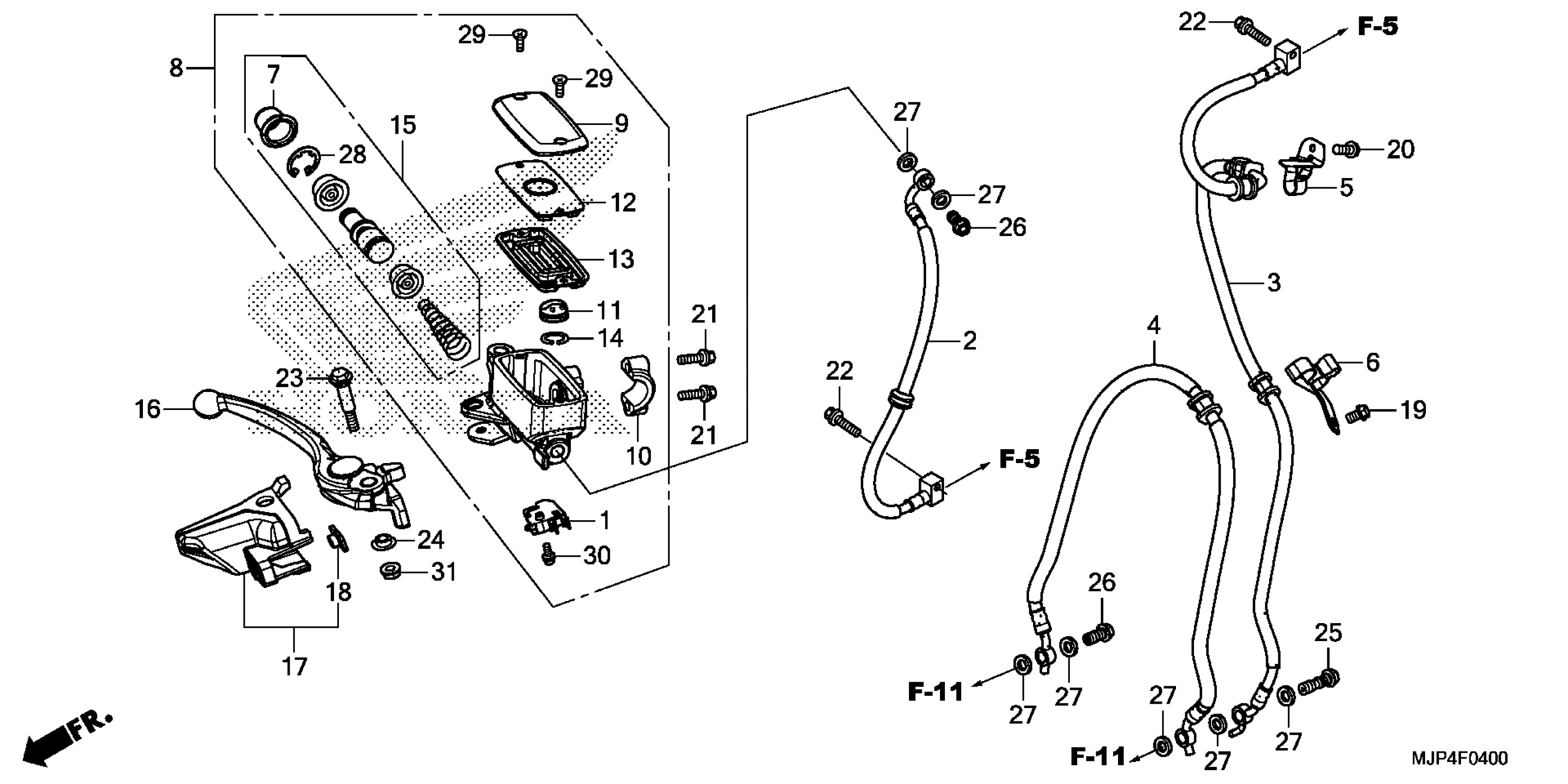

Honda CRF1000D3AC (17) MOTORCYCLE, JPN, VIN# JH2SD045-HK100001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

HOSE A, FR. BRAKE

45125-MJP-G61

$54.67

HOSE D, FR. BRAKE

45128-MJP-G61

$67.80

HOSE E, FR. BRAKE

45129-MJP-G61

$60.87

CLAMP, FR. BRAKE HOSE

45156-MJP-G50

$10.13

CLAMP, FR. BRAKE HOSE (LOWER)

45157-MJP-G50

$10.13

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-MJP-305

$260.11

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

SEPARATOR

45518-MEN-J01

$7.18

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

RING

45523-KA3-731

$2.92

MASTER CYLINDER SET

45530-MA4-671

$47.76

LEVER ASSY., R. HANDLE

53170-MEJ-016

$45.19

HOLDER, R. KNUCKLE

53191-MJP-G60

$16.81

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

BOLT, FLANGE (6X10)

90013-GHB-600

$4.48

BOLT, FLANGE (6X14)

90013-GHB-620

$2.33

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, FLANGE (6X25)

90013-GHB-670

$2.33

BOLT, HANDLE LEVER

90114-MGH-641

$6.90

COLLAR (6X4)

90127-KF0-770

$3.42

BOLT, OIL (10X34)

90145-MR8-014

$7.28

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
