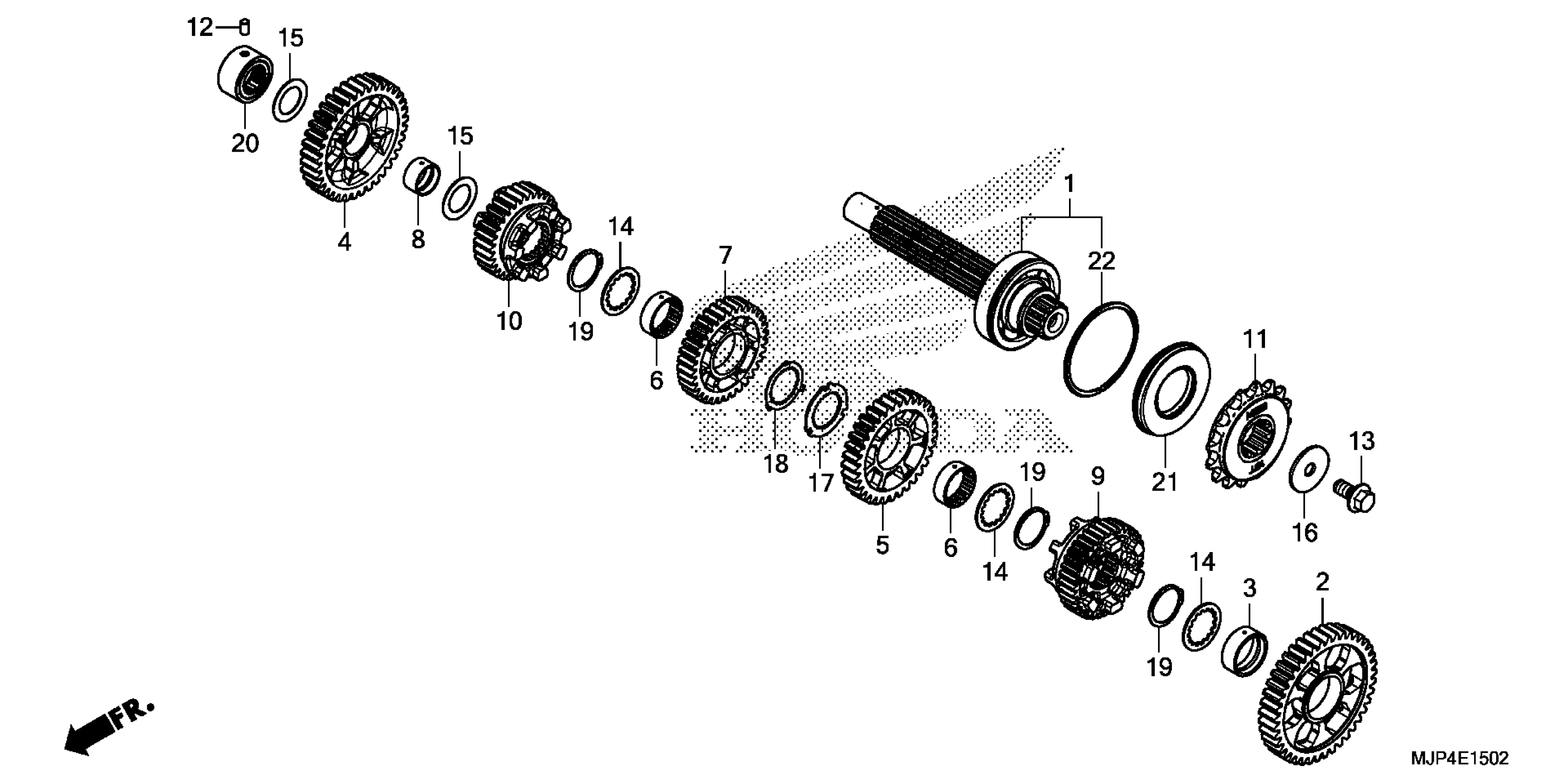

Honda CRF1000D3AC (16) MOTORCYCLE, JPN, VIN# JH2SD045-GK000001 TO JH2SD045-GK099999 TRANSMISSION (COUNTERSHAFT) (2) Diagram

COUNTERSHAFT

23220-MJP-G80

$165.10

GEAR, COUNTERSHAFT FIRST (41T)

23421-MJP-G80

$111.70

COLLAR (30X35X13)

23422-HL4-000

$16.14

GEAR, COUNTERSHAFT SECOND (37T)

23441-MJP-G80

$106.75

GEAR, COUNTERSHAFT THIRD (33T)

23461-MJP-G80

$102.68

COLLAR, SPLINE (30X11)

23462-MAT-000

$20.94

GEAR, COUNTERSHAFT FOURTH (34T)

23481-MJP-G80

$102.68

COLLAR (22X13)

23495-KY1-000

$19.03

GEAR, COUNTERSHAFT FIFTH (36T)

23501-MJP-G80

$119.16

GEAR, COUNTERSHAFT SIXTH (30T)

23521-MJP-G80

$115.03

SPROCKET, DRIVE (16T)

23801-MEE-D00

$51.84

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$3.92

BOLT, SPECIAL (10MM)

90037-422-003

$6.82

WASHER, SPLINE (30X38X1.5)

90452-HL4-000

$2.77

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.53

WASHER (10.2MM)

90459-438-000

$5.43

WASHER, SPLINE (30MM)

90463-MAT-000

$4.16

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

CIRCLIP (30MM)

90604-MM5-000

$4.16

BEARING, NEEDLE (22MM)

91023-MM5-641

$26.12

OIL SEAL (39X72X8) This part replaces 91207-MBB-003.

91207-MBB-013

$11.50

RING, SNAP (72MM)

94560-72200

$3.41
