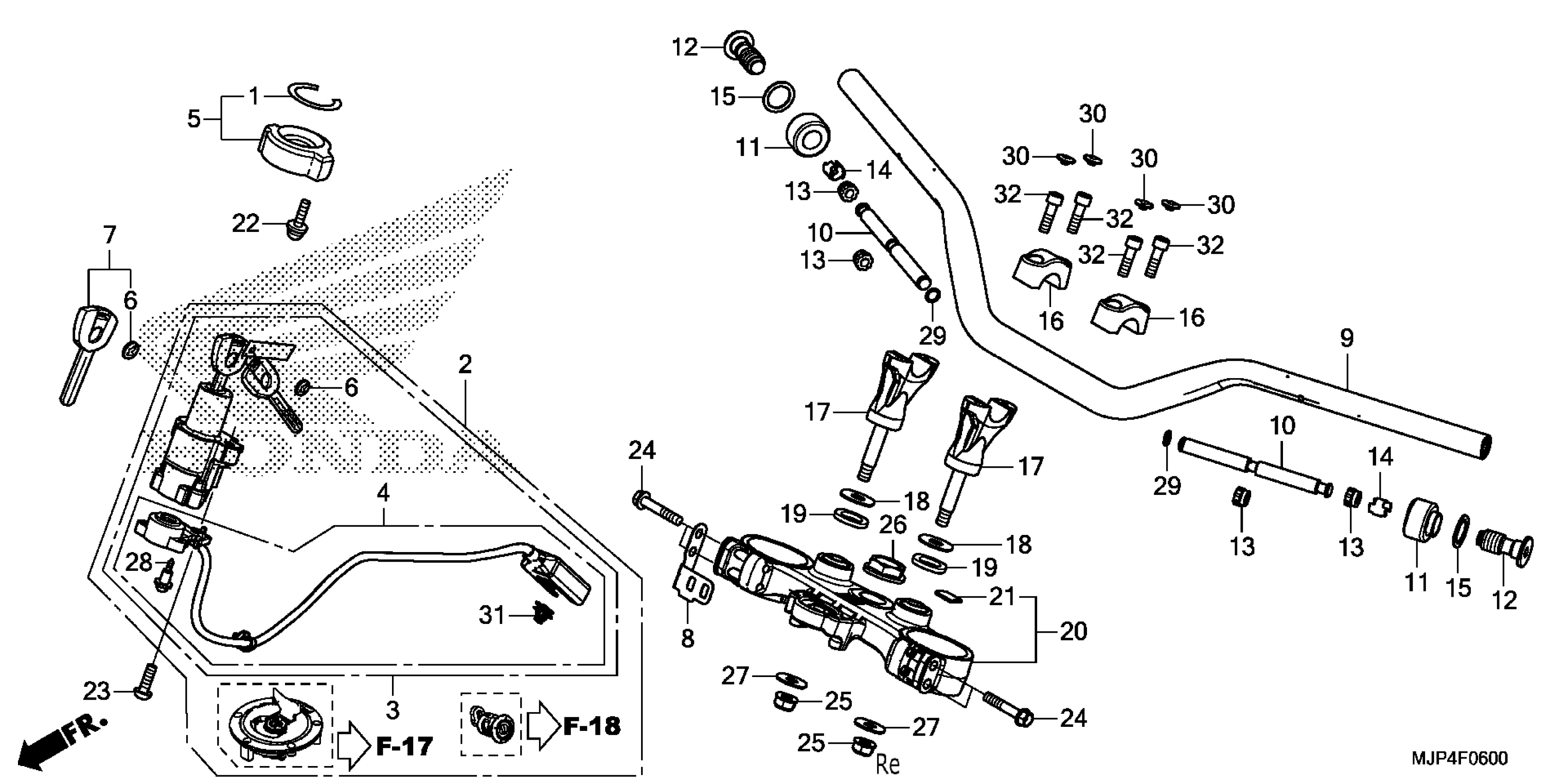

Honda CRF1000D3AC (16) MOTORCYCLE, JPN, VIN# JH2SD045-GK000001 TO JH2SD045-GK099999 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

2

LOCK SET This part replaces 35010-MJP-A60.

35010-MJP-A63

$461.51

2

LOCK SET This part replaces 35010-MJP-A61.

35010-MJP-A63

$461.51

2

LOCK SET This part replaces 35010-MJP-A62.

35010-MJP-A63

$461.51

2

LOCK SET

35010-MJP-A63

$461.51

3

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MJP-A61.

35100-MJP-A62

$177.05

3

SWITCH ASSY., COMBINATION & LOCK

35100-MJP-A62

$177.05

4

BASE, CONTACT

35101-MJP-G51

$78.41

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

6

EMBLEM, KEY | (Optional).

35113-MJK-N20

$3.46

7

KEY, BLANK | (Optional).

35121-MJP-A61

$25.68

7

KEY, CUT INCL. OVERNIGHT SHIP (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MJP-A61RUSH

Unavailable

7

KEY, CUT INCL. STD SHIPPING (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MJP-A61STD

Unavailable

8

STAY, R. HARNESS CLIP

35139-MJP-G50

$7.21

9

HANDLEBAR

53100-MJP-G80

$319.38

9

HANDLEBAR This part replaces 53100-MJP-305.

53100-MJP-G80

$319.38

10

WEIGHT B, HANDLEBAR

53104-MJP-G50

$17.54

11

WEIGHT A, HANDLEBAR

53105-MJP-G50

$18.82

12

BOLT, HANDLE WEIGHT

53106-MJP-G50

$13.45

13

RUBBER, HANDLE WEIGHT

53107-MJP-G50

$3.31

14

RING, HANDLE WEIGHT SNAP

53108-MJP-G50

$3.39

15

RUBBER, KNUCKLE GUARD

53109-MJP-G50

$2.23

16

HOLDER, HANDLE (UPPER)

53131-MJP-G80

$58.03

17

HOLDER, HANDLE (LOWER)

53132-MJP-G80

$73.62

18

WASHER, HANDLE HOLDER

53135-MJP-G50

$1.85

19

RUBBER, HANDLE HOLDER

53136-MJP-G50

$2.23

20

BRIDGE, FORK TOP

53300-MJP-G50

$208.90

21

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

21

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$4.02

22

SCREW-WASHER (5X22)

90020-MBW-610

$2.56

23

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

24

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

25

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

26

NUT, STEERING STEM

90304-MJ4-670

$15.40

27

WASHER, PLAIN (10MM)

90501-MJP-G50

$2.61

28

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

29

O-RING (9X1.8)

91305-GE1-920

$1.80

30

CAP, SOCKET BOLT (8MM)

91456-MW3-600

$2.84

31

CLIP, CONNECTOR (BLACK)

91533-S82-003

$5.10

32

BOLT, SOCKET (8X28)

96600-08028-10

$1.49
