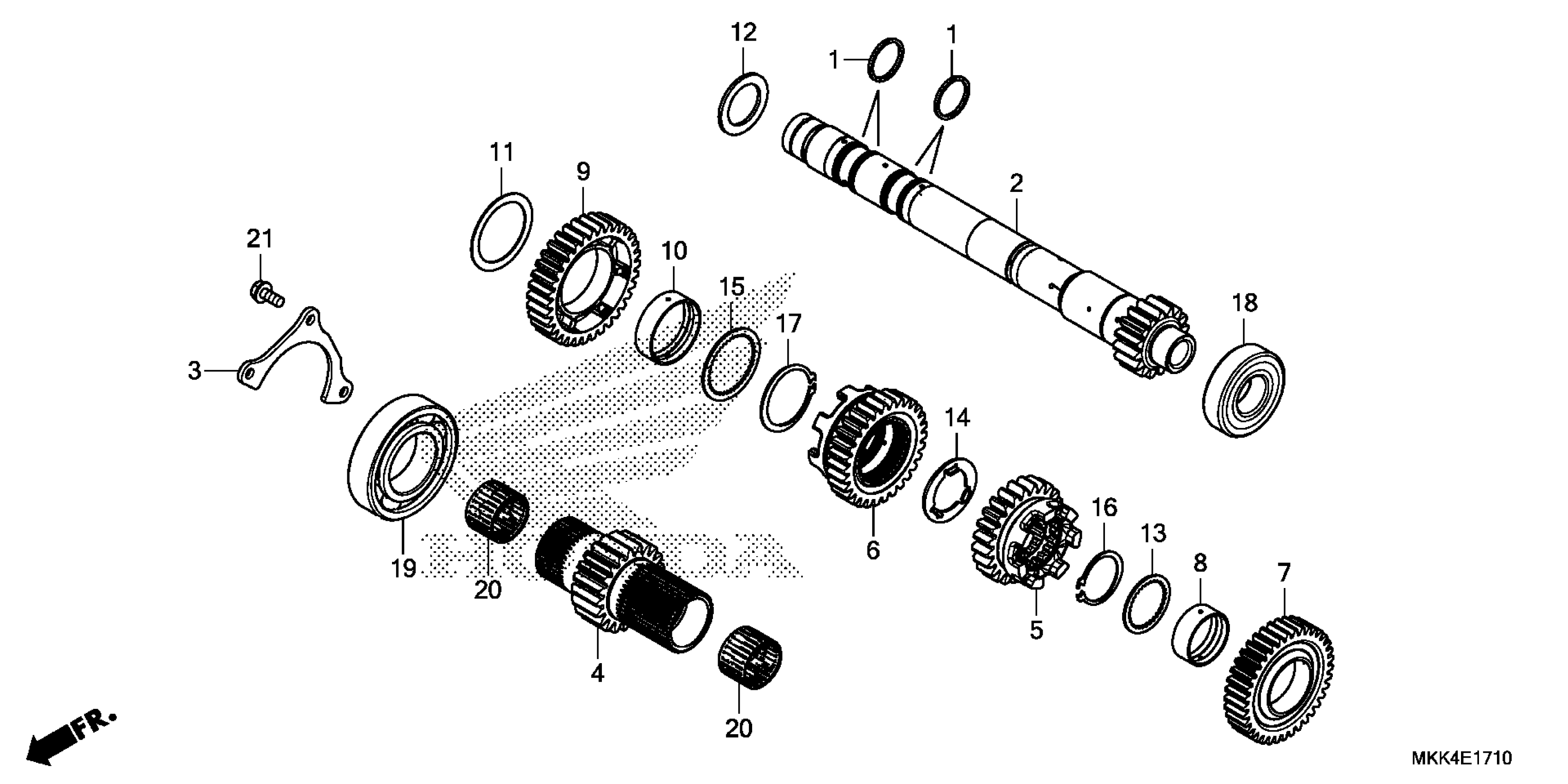

Honda CRF1000D2AC (19) MOTORCYCLE, JPN, VIN# JH2SD041-KK300001 TRANSMISSION (MAINSHAFT) Diagram

RING, SEAL (28MM)

22815-MGE-D01

$3.52

MAINSHAFT (INNER)

23210-MJP-G80

$263.54

PLATE, BEARING SETTING

23213-HL4-000

$5.12

MAINSHAFT (OUTER)

23231-MJP-G80

$203.93

GEAR, MAINSHAFT THIRD (24T)

23451-MJP-G80

$100.93

GEAR, MAINSHAFT FOURTH (30T)

23471-MJP-G80

$110.86

GEAR, MAINSHAFT FIFTH (37T)

23491-MJP-G80

$106.75

COLLAR (32X35X13.5)

23492-HL4-000

$15.04

GEAR, MAINSHAFT SIXTH (34T)

23511-MJP-G80

$102.68

COLLAR (40X43X12.5)

23512-MGE-D00

$13.46

WASHER

90403-MK2-300

$5.32

WASHER (32MM)

90445-KE5-000

$8.90

WASHER, SPLINE (32X17X1.667)

90452-MCA-000

$2.51

WASHER, SPECIAL (28X42X2)

90463-HL4-000

$5.16

WASHER, SPLINE (40MM)

90493-MGE-D00

$7.35

CIRCLIP (32MM)

90604-MCA-780

$3.14

CIRCLIP (40MM)

90605-MGE-D00

$6.32

BEARING, RADIAL BALL (25X56X15)

91003-MJP-G81

$43.36

BEARING, RADIAL BALL (40X76X18)

91023-HL4-003

$46.49

BEARING, NEEDLE (28X32X21)

91024-HL4-003

$11.79

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91
