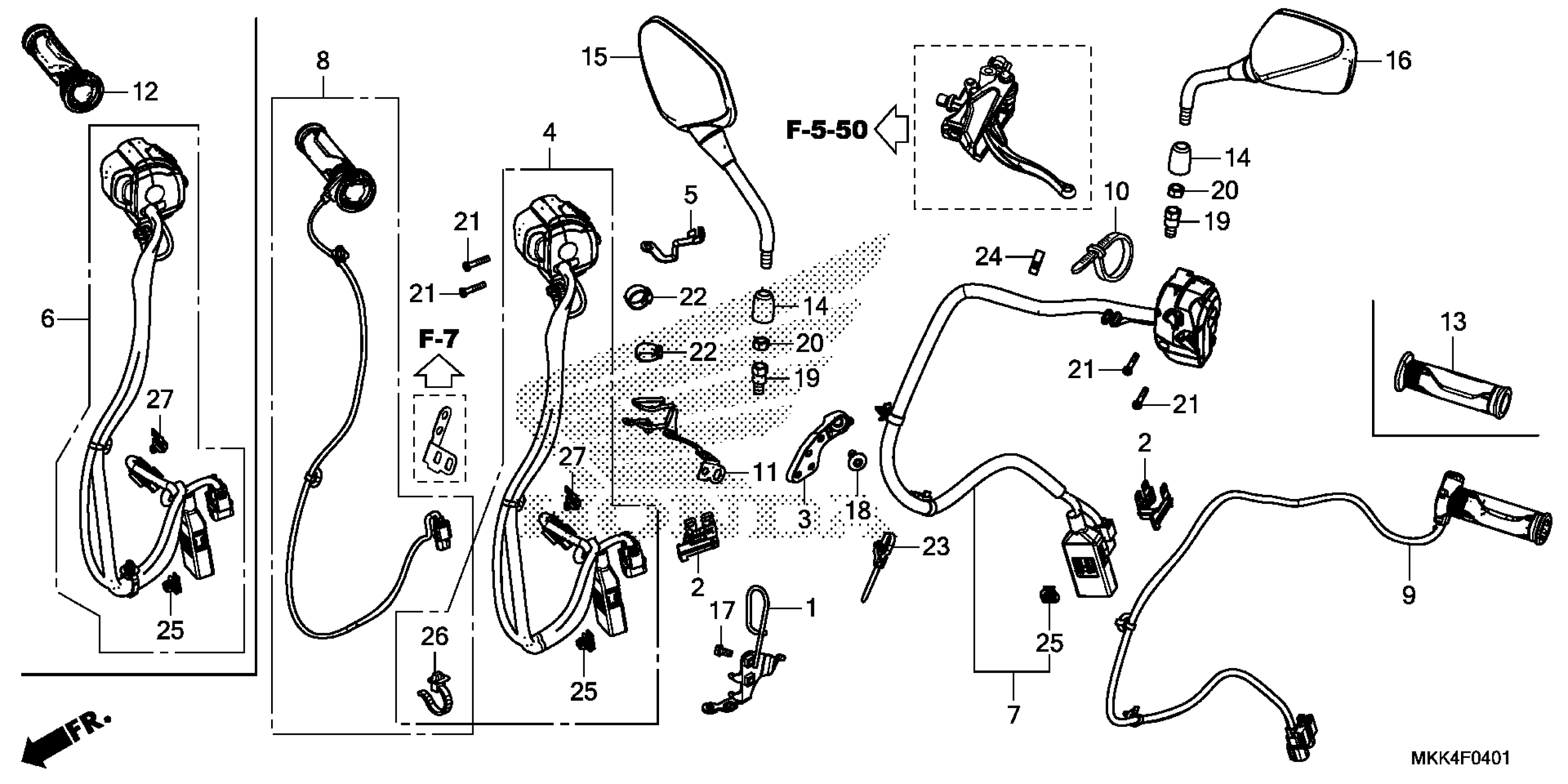

Honda CRF1000D2AC (19) MOTORCYCLE, JPN, VIN# JH2SD041-KK300001 SWITCH@CABLE Diagram

#

Description
Price

1

GUIDE, THROTTLE CABLE

17925-MJP-G50

$11.03

2

HOLDER, CONNECTOR

32121-MKK-D00

$4.35

3

STAY, CLIP

32151-MKK-D00

$7.78

6

SW UNIT This part replaces 35135-MKK-A51.

35135-MKK-A54

$231.03

6

SW UNIT This part replaces 35135-MKK-A52.

35135-MKK-A54

$231.03

6

SW UNIT This part replaces 35135-MKK-A53.

35135-MKK-A54

$231.03

7

SWITCH ASSY This part replaces 35200-MKK-A51.

35200-MKK-A52

$212.52

7

SWITCH ASSY

35200-MKK-A52

$212.52

11

CLAMP, CABLE

53111-MKK-D00

$13.29

12

GRIP ASSY., THROTTLE

53140-MKK-D01

$32.25

13

GRIP, L. HANDLE

53166-MGE-000

$15.92

14

COVER, LOCK NUT

88130-MFG-D00

$1.57

15

MIRROR, R. BACK

88210-MJP-G80

$91.74

16

MIRROR, L. BACK

88220-MGS-D30

$73.95

17

BOLT, FLANGE (6X12)

90021-GHB-620

$2.03

18

BOLT, SPECIAL (6X15)

90114-MGE-D00

$1.87

19

BOLT, ADAPTER (10MM)

90130-MGS-D31

$7.63

20

NUT, HEX. (10MM) (LEFT HAND THREAD)

90310-MGS-D31

$2.67

21

SCREW-WASHER (5X25)

90508-MGE-D00

$1.17

22

CLIP, WIRE HARNESS

90683-KJ2-003

$3.32

23

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$1.99

24

CLAMP, HARNESS

90690-MEF-800

$1.19

25

CLIP, CONNECTOR (BEIGE)

91533-SDA-003

$2.30

27

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.42
