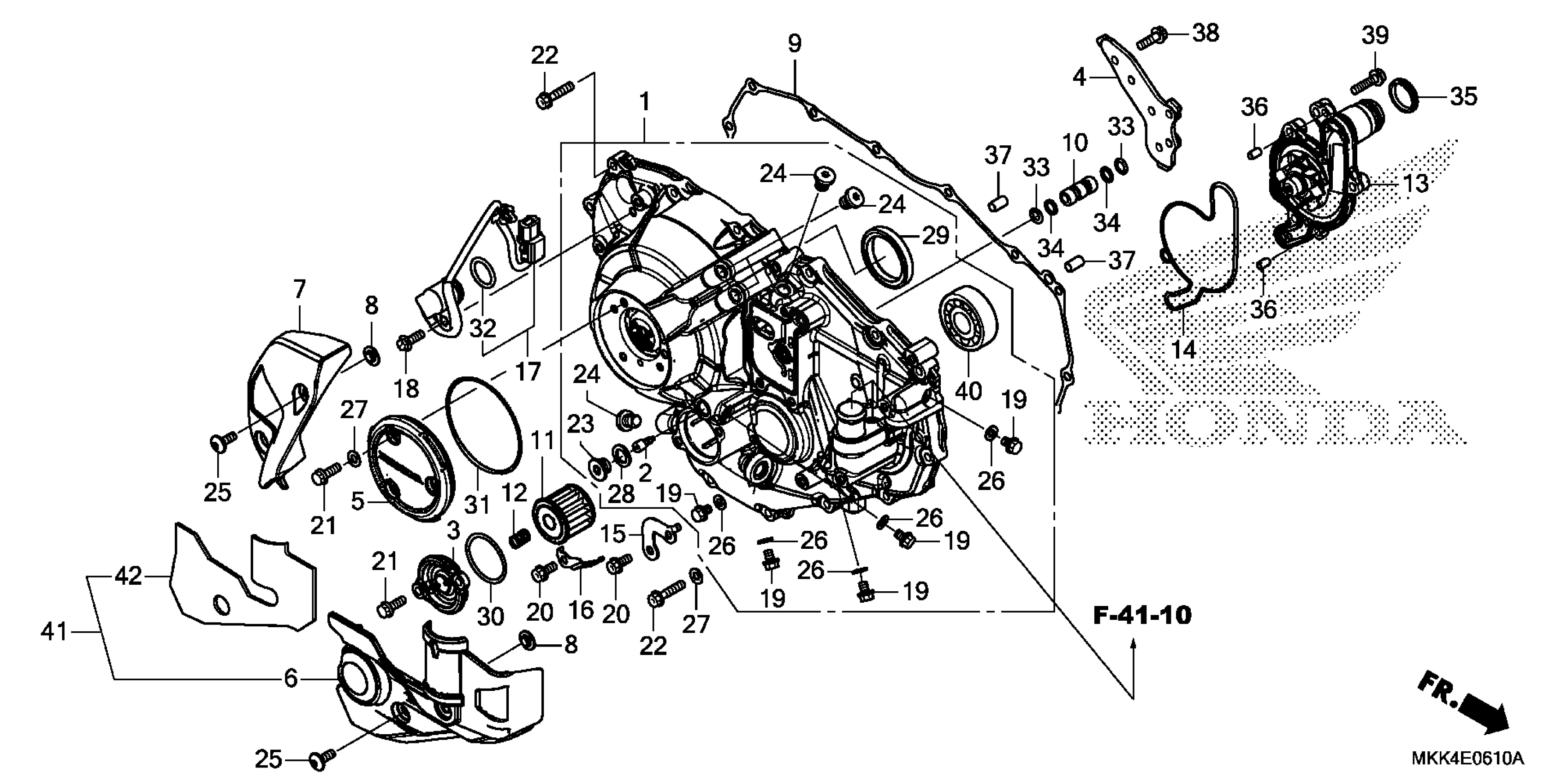

Honda CRF1000D2AC (19) MOTORCYCLE, JPN, VIN# JH2SD041-KK300001 RIGHT CRANKCASE COVER (2) Diagram

COVER, R. CRANKCASE

11330-MKK-D50

$485.54

ORIFICE

11335-MJP-G80

$17.95

COVER, OIL FILTER

11337-MJP-G80

$28.84

COVER (INNER)

11361-MJP-G80

$45.52

CAP, R. COVER

11375-MJP-G80

$83.72

COVER, R. RR. ENGINE

11381-MJP-G80

$10.66

COLLAR

11385-MJF-A00

$2.92

GASKET, R. CRANKCASE COVER

11394-MJP-G51

$49.79

PIPE, OIL PASSAGE

15104-MGS-D20

$9.77

ELEMENT, OIL FILTER

15412-MGS-D21

$8.72

SPRING, OIL FILTER

15414-MEB-670

$2.62

WATER PUMP

19200-MJP-G50

$196.59

GASKET, WATER PUMP BODY

19226-MJP-G50

$10.67

STAY, HARNESS CLIP

32157-MJP-G80

$4.74

STAY, HARNESS CLIP

32158-MJP-G80

$3.90

SENSOR ASSY., ANGLE (40DEGREE)

38810-MJP-G81

$187.49

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.89

BOLT, FLANGE (6X8)

90026-GHB-600

$2.23

BOLT, FLANGE (6X14)

90026-GHB-630

$2.23

BOLT, FLANGE (6X18)

90026-GHB-650

$2.23

BOLT, FLANGE (6X28)

90026-GHB-690

$2.18

BOLT, SEALING (12X8)

90031-MJP-G80

$3.31

BOLT, SPECIAL (10MM)

90042-MJP-G80

$4.25

BOLT, SPECIAL (6X17)

90085-MGC-920

$2.57

WASHER, SEALING (6MM)

90404-HW1-670

$1.87

WASHER, SEALING (6MM)

90488-425-000

$2.28

WASHER (12MM)

90545-KF0-000

$3.26

BEARING, RADIAL BALL (40X52X7)

91004-MJP-G81

$30.34

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$4.21

O-RING (81X2.2)

91307-MGE-D01

$3.92

O-RING (16.5X2.5)

91310-MGE-D01

$4.80

O-RING (7.7X1.9)

91311-RFH-003

$2.61

RING, BACK-UP (8X11)

91315-MGS-D20

$3.34

SEAL, WATER PIPE

91315-MJP-G51

$2.41

PIN A, DOWEL (6X10) (YAMADA)

94301-06100

$2.25

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

COVER, OIL PRESSURE SENSOR

11370-MKK-D50

$34.20

MAT, R. FR. COVER

11379-MKK-D50

$6.49
