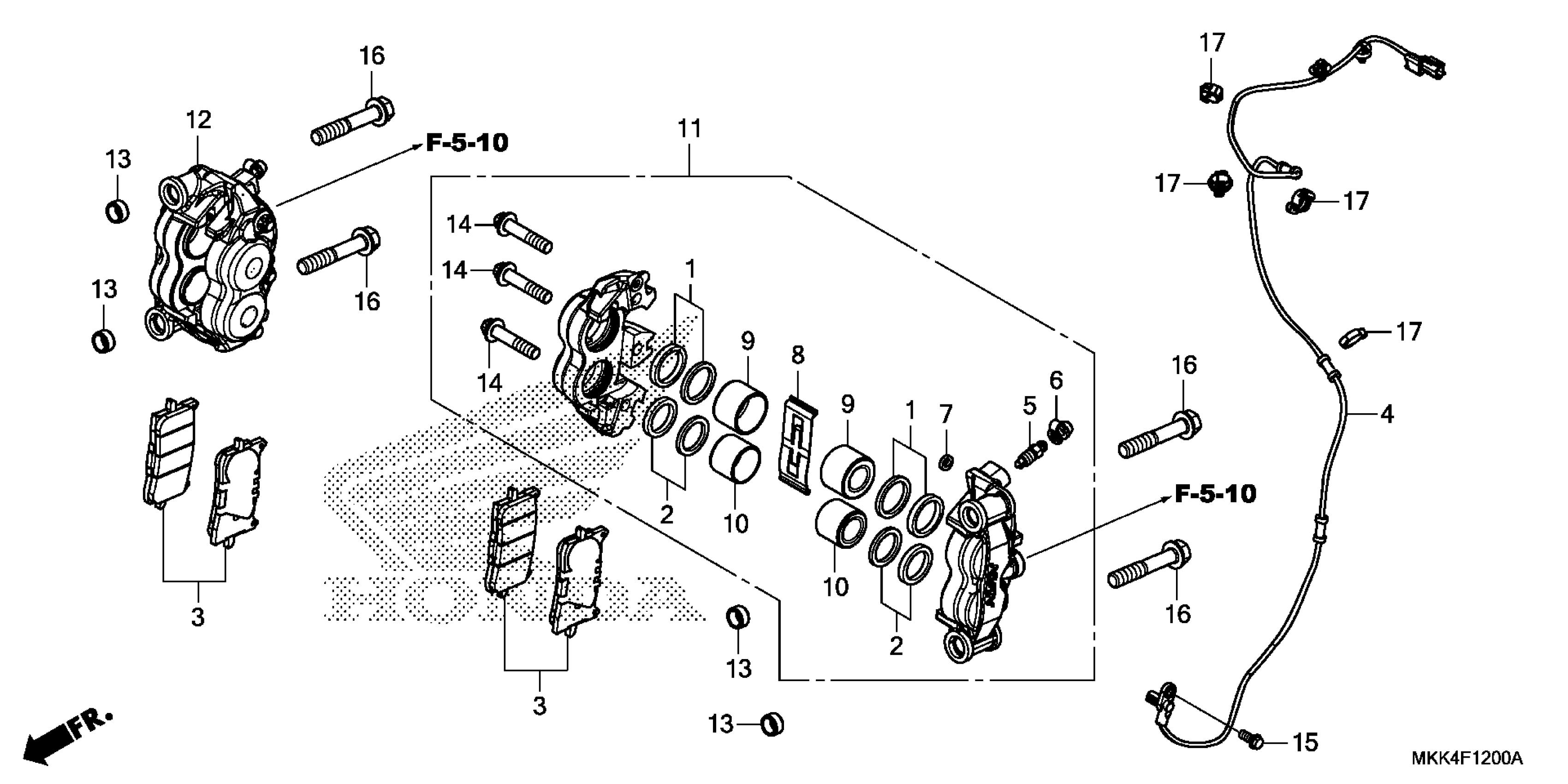

Honda CRF1000D2AC (19) MOTORCYCLE, JPN, VIN# JH2SD041-KK300001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-MCZ-006

$5.56

SEAL SET, PISTON

06452-MCZ-006

$5.56

PAD SET, FR.

06455-MKK-D01

$49.53

SENSOR, FR. WHEEL SPEED

38520-MKK-D01

$164.26

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.56

SPRING, PAD

45106-MJP-G51

$8.07

PISTON A This part replaces 45107-MJP-G51.

45107-MJP-G52

$44.53

PISTON B This part replaces 45117-MJP-G51.

45117-MJP-G52

$41.81

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MJP-G51

$361.87

CALIPER SUB-ASSY., R. FR. (NISSIN) This part replaces 45250-MJP-G51.

45250-MJP-G52

$414.43

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MJP-G52

$414.43

SPACER, FR. FORK

51497-MEL-000

$4.89

BOLT, TORX (8X38)

90104-MJP-G51

$4.69

BOLT, FLANGE (6X14)

90117-MJP-G60

$2.04

BOLT, FLANGE (10X57)

90123-MJP-G50

$4.65

CLIP, CABLE (12MM)

90690-MGS-D81

$2.06
