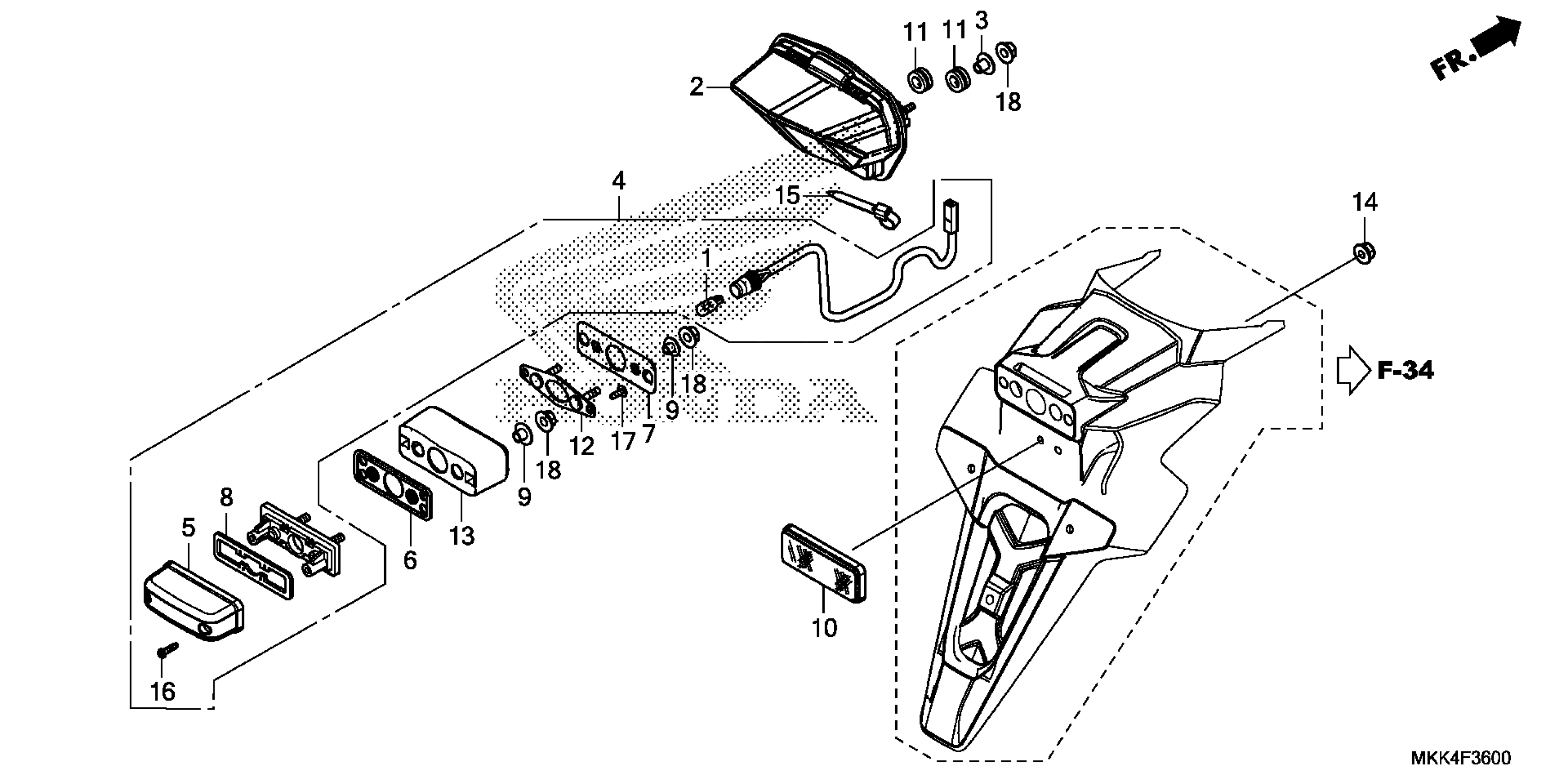

Honda CRF1000A2AC (19) MOTORCYCLE, JPN, VIN# JH2SD040-KK300001 TAILLIGHT@LICENSE LIGHT Diagram

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

TAILLIGHT UNIT

33701-MJP-A61

$265.88

COLLAR, TAILLIGHT

33705-MKK-D00

$2.97

LIGHT ASSY., LICENSE (12V 5W)

33720-MFA-D01

$67.55

COVER, LICENSE

33721-GET-671

$17.41

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.70

RUBBER, LICENSE LIGHT

33728-MJP-G50

$3.81

GASKET, LENS

33729-MCZ-003

$8.62

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.17

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.60

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.86

STAY, LICENSE LIGHT BRACKET

80118-MGE-670

$7.04

BRACKET, LICENSE LIGHT

80201-MGE-670

$7.46

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.25

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

SCREW, TAPPING (4X16)

93901-24480

$0.75

SCREW, TAPPING (4X12)

93903-24380

Unavailable

NUT, FLANGE (5MM)

94050-05000

$1.19
