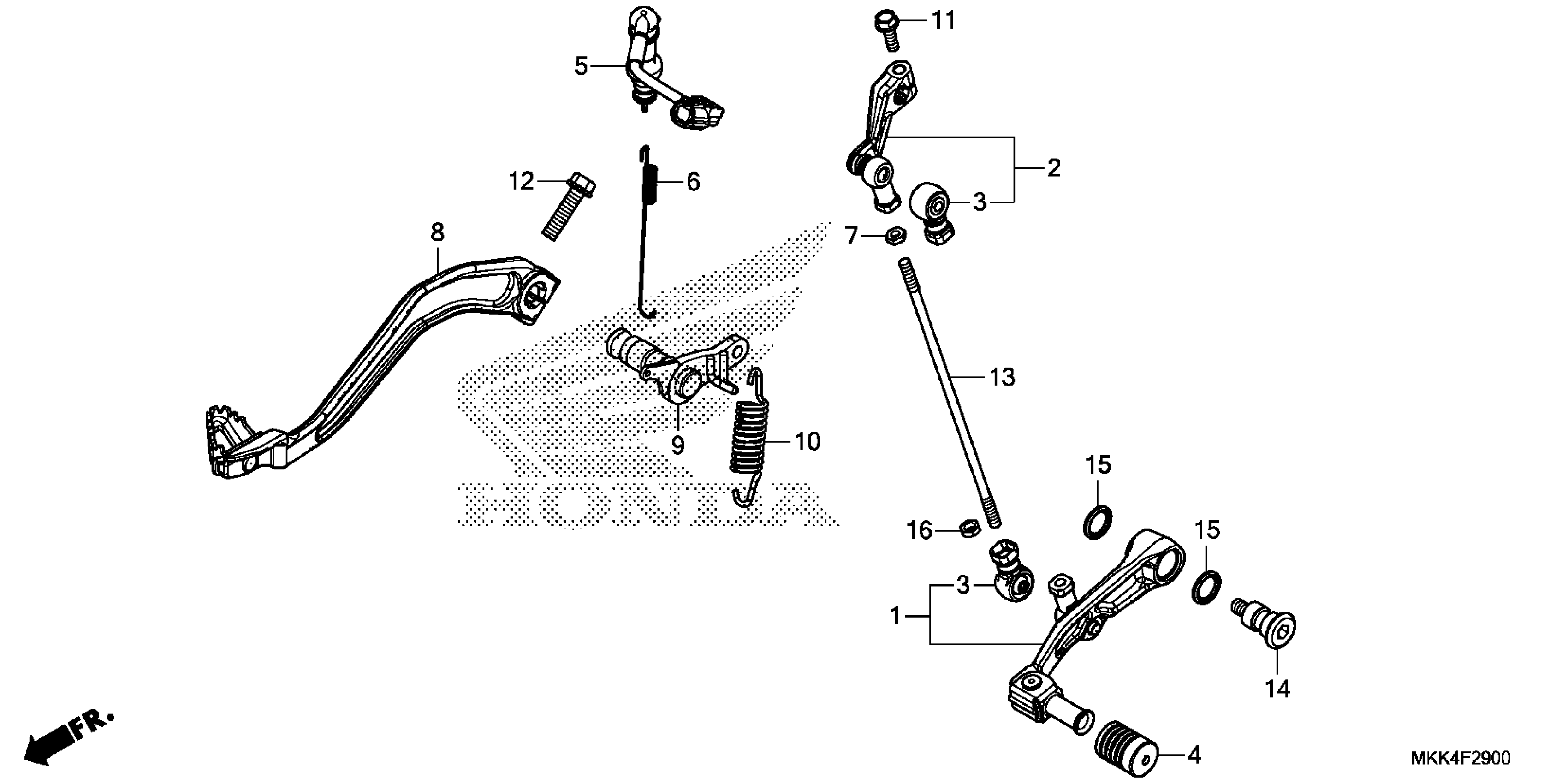

Honda CRF1000A2AC (19) MOTORCYCLE, JPN, VIN# JH2SD040-KK300001 PEDAL Diagram

PEDAL, GEARSHIFT

24705-MJP-G50

$149.39

ARM, GEARSHIFT

24710-MJP-G50

$81.59

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, CHANGE PEDAL

24781-KE1-000

$3.97

SWITCH ASSY., RR. STOP (TOYO)

35350-MJP-G51

$32.49

SPRING, STOP SWITCH

35357-HN8-000

$3.85

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.55

PEDAL, RR. BRAKE

46500-MJP-G50

$118.93

ARM, MIDDLE

46502-MJP-G50

$49.54

SPRING, BRAKE RETURN

46513-MJP-G50

$5.52

BOLT, FLANGE (6X20)

90031-GHB-660

$2.18

BOLT, FLANGE (8X32)

90035-GHB-710

$2.44

BOLT, TIE ROD

90065-MFG-D00

$3.74

BOLT, CHANGE PIVOT

90115-MJP-G50

$11.20

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

NUT, HEX. (6MM)

94002-06000-0S

$1.49
