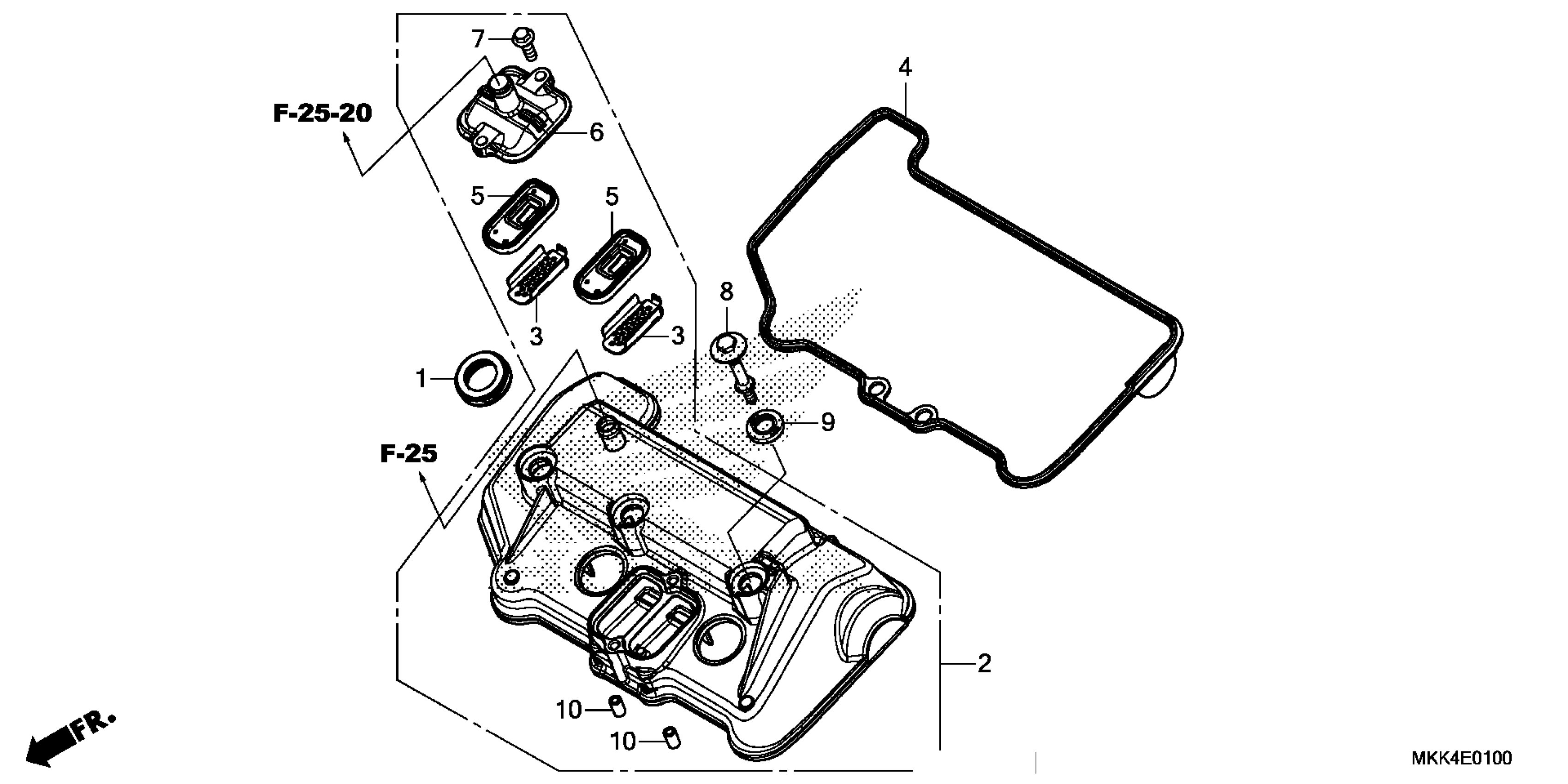

Honda CRF1000A2AC (19) MOTORCYCLE, JPN, VIN# JH2SD040-KK300001 CYLINDER HEAD COVER Diagram

SEAL, PLUG TUBE

12229-HL4-000

$7.45

COVER ASSY., CYLINDER HEAD

12300-MKK-D00

$287.46

PLATE, PORT (AI)

12341-MAT-750

$12.74

GASKET, HEAD COVER

12391-HL4-000

$23.51

VALVE, REED (ARAI)

18601-KEA-741

$17.20

COVER, REED VALVE

18612-MKK-D00

$35.45

BOLT, FLANGE (6X18) (NSHF)

90004-GHB-640

$2.67

BOLT, HEAD COVER

90017-MAL-600

$12.50

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.60

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.24
