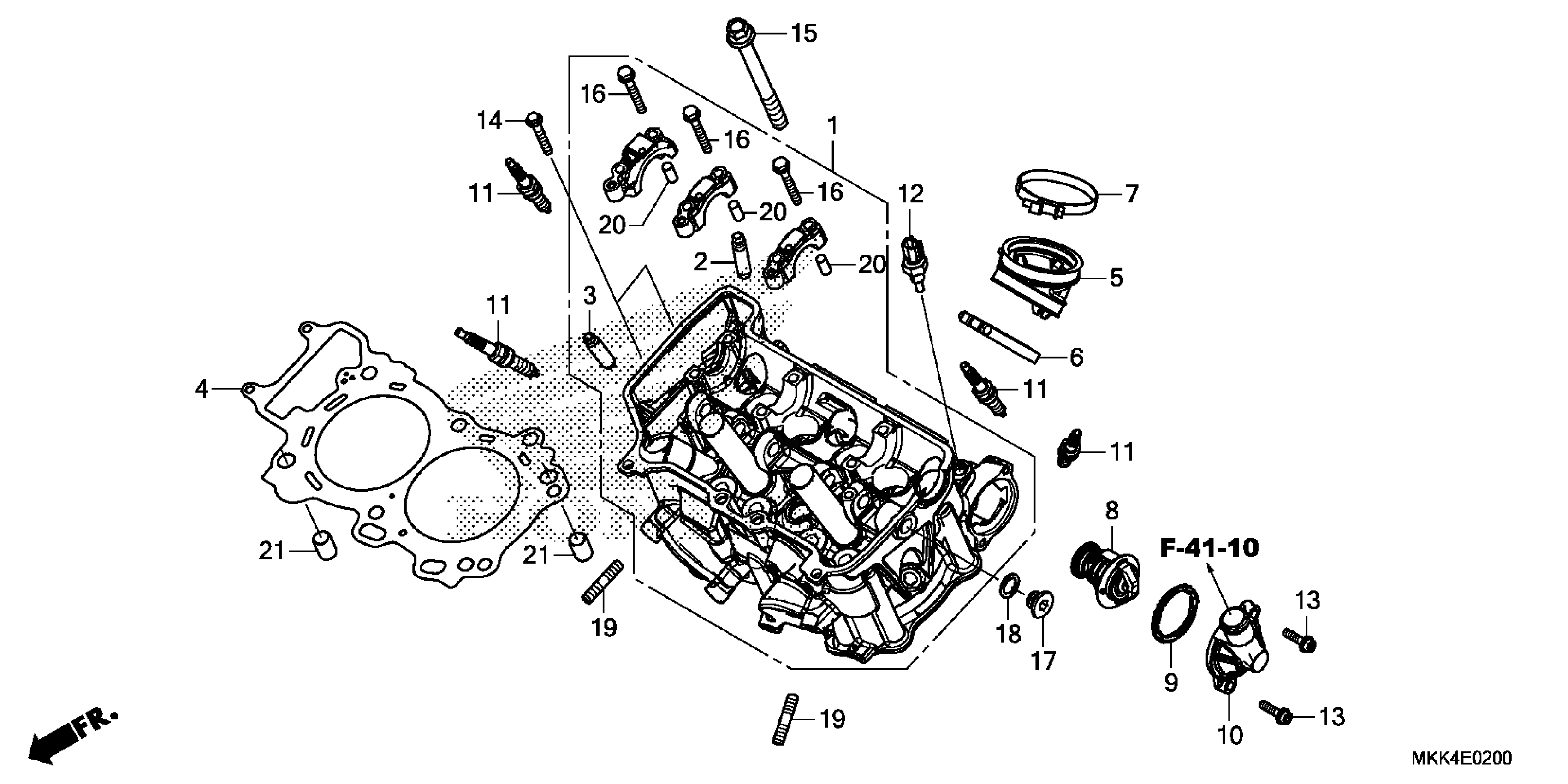

Honda CRF1000A2AC (19) MOTORCYCLE, JPN, VIN# JH2SD040-KK300001 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MJP-G50

$1,714.77

GUIDE, VALVE (OVER SIZE)

12204-HL4-305

$16.90

GUIDE, EX. VALVE (OVER SIZE)

12205-HL4-305

$15.94

GASKET, CYLINDER HEAD

12251-MJP-G51

$46.70

INSULATOR, THROTTLE BODY

16211-MKK-D00

$21.13

BAND, INSULATOR

16217-MKK-D00

$10.39

BAND, INSULATOR

16218-MKK-D00

$10.56

THERMOSTAT ASSY.

19300-MCJ-003

$51.92

RUBBER, THERMOSTAT

19305-KV3-010

$6.07

COVER, THERMOSTAT

19321-MJP-G50

$29.25

SPARK PLUG (SILMAR8A9S) (NGK)

31909-MJP-G51

$30.11

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$49.80

BOLT, FLANGE SOCKET (6X22)

90001-MGZ-J00

$1.49

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.92

BOLT-WASHER (12X118)

90007-HL4-003

$8.83

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

BOLT, SEALING (14MM)

90032-MJP-G50

$6.75

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

BOLT, STUD (8X25)

92900-08025-0B

$2.20

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

PIN A, DOWEL (14X20)

94301-14200

$2.28
