Description

Price

1

FORK, GEARSHIFT

24211-MJP-G50

$59.74

2

FORK, CENTER GEARSHIFT

24212-MJP-G50

$68.61

3

DRUM, GEARSHIFT

24310-MJP-G50

$145.64

4

CENTER, SHIFT DRUM

24315-MJP-G50

$37.18

5

SHAFT, GEARSHIFT FORK

24325-HL4-000

$18.95

6

STOPPER, GEARSHIFT DRUM

24430-MJP-G50

$15.18

7

SPRING, GEARSHIFT DRUM STOPPER

24435-MJP-G50

$3.77

8

SPINDLE, GEARSHIFT

24610-MJP-G50

$101.98

9

PLATE, SPINDLE SETTING

24613-MJP-G50

$2.85

10

SPRING, GEARSHIFT RETURN

24651-KR3-000

$5.43

11

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

12

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

13

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-MR5-670

$2.33

14

WASHER, DRUM STOPPER

90417-360-000

$1.74

15

WASHER (14MM)

90451-155-000

$3.78

16

BEARING, RADIAL BALL (25X47X8)

91007-MGS-D21

$17.30

16

BEARING, RADIAL BALL (25X47X8) This part replaces 91007-MGS-D31.

91007-MGS-D21

$17.30

17

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

18

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

19

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

20

ROLLER (4X8)

96220-40080

$1.49

21

BOLT, SOCKET (8X20)

96600-08020-10

$2.13

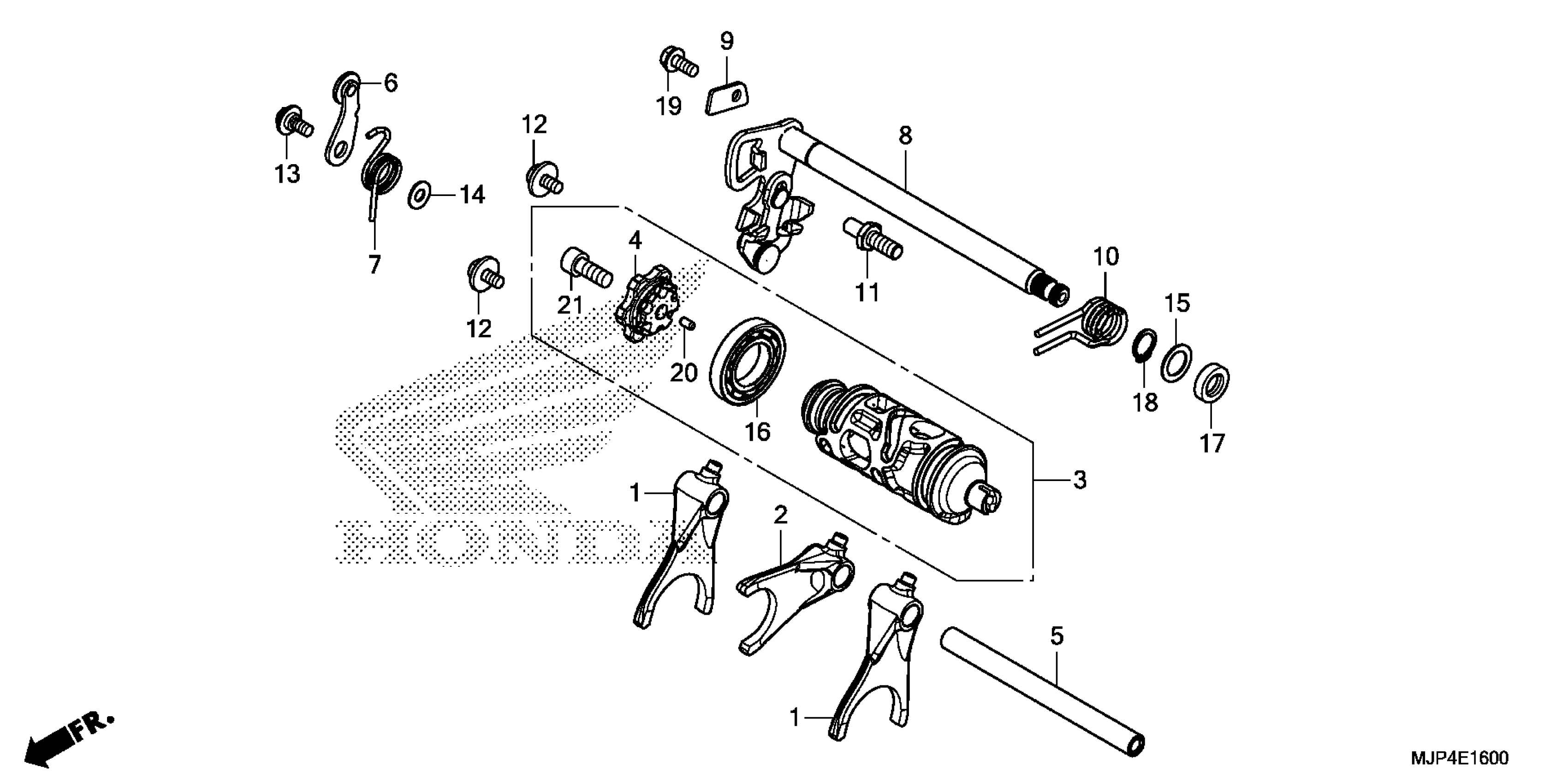

Honda CRF1000A2AC (17) MOTORCYCLE, JPN, VIN# JH2SD04G-HK000001 GEARSHIFT DRUM (1) Diagram

FORK, GEARSHIFT

FORK, CENTER GEARSHIFT

DRUM, GEARSHIFT

CENTER, SHIFT DRUM

SHAFT, GEARSHIFT FORK

STOPPER, GEARSHIFT DRUM

SPRING, GEARSHIFT DRUM STOPPER

SPINDLE, GEARSHIFT

PLATE, SPINDLE SETTING

SPRING, GEARSHIFT RETURN

PIN, GEARSHIFT RETURN SPRING

BOLT-WASHER (6X12) (Honda Code 2551760)

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

WASHER, DRUM STOPPER

WASHER (14MM)

BEARING, RADIAL BALL (25X47X8)

BEARING, RADIAL BALL (25X47X8) This part replaces 91007-MGS-D31.

OIL SEAL (14X22X5)

CIRCLIP (OUTER) (14MM)

BOLT, FLANGE (6X14) (Honda Code 2410884)

ROLLER (4X8)

BOLT, SOCKET (8X20)
