Description

Price

1

CLUTCH OUTER

22100-MJP-G50

$414.41

2

GUIDE, CLUTCH (OUTER)

22116-MJP-G50

$19.21

3

CENTER, CLUTCH

22121-MJP-G51

$118.30

4

SEAT, JUDDER SPRING

22125-HP6-A00

$4.76

5

DISK SET, CLUTCH

22210-MJP-305

$162.53

6

SPRING, JUDDER

22325-MJP-G51

$43.11

7

PLATE, CLUTCH PRESSURE

22350-MJP-G51

$66.72

8

PLATE, SETTING

22361-MJP-G51

$24.15

9

SPRING, CLUTCH

22401-MJP-G51

$5.57

10

SEAT, CLUTCH SPRING

22425-MJP-G51

$11.73

11

PIN, CLUTCH LIFTER

22847-MJP-G50

$32.98

12

GEAR, PRIMARY DRIVE (45T)

23103-MJP-G50

$108.98

13

SUB-GEAR, PRIMARY (45T)

23104-MJP-G50

$59.62

14

SPRING, PRIMARY DAMPER

23115-MW4-000

$2.31

15

BOLT, SPECIAL (10X25)

90013-MJP-G50

$4.26

16

BOLT, FLANGE (6X35)

90050-MJP-G51

$2.05

17

NUT, LOCK (25MM)

90231-MS2-610

$18.78

18

WASHER (35X50X3.2)

90401-MEA-670

$5.38

19

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

20

WASHER (10.5X36X4)

90414-MGE-D00

$3.51

21

WASHER, SPRING (25MM) (CHUO HATSUJO)

90432-MM8-003

$7.70

22

WASHER, THRUST (25X40X2)

90451-VM0-000

$5.72

23

BEARING, NEEDLE (35X42X23)

91026-MV9-671

$89.90

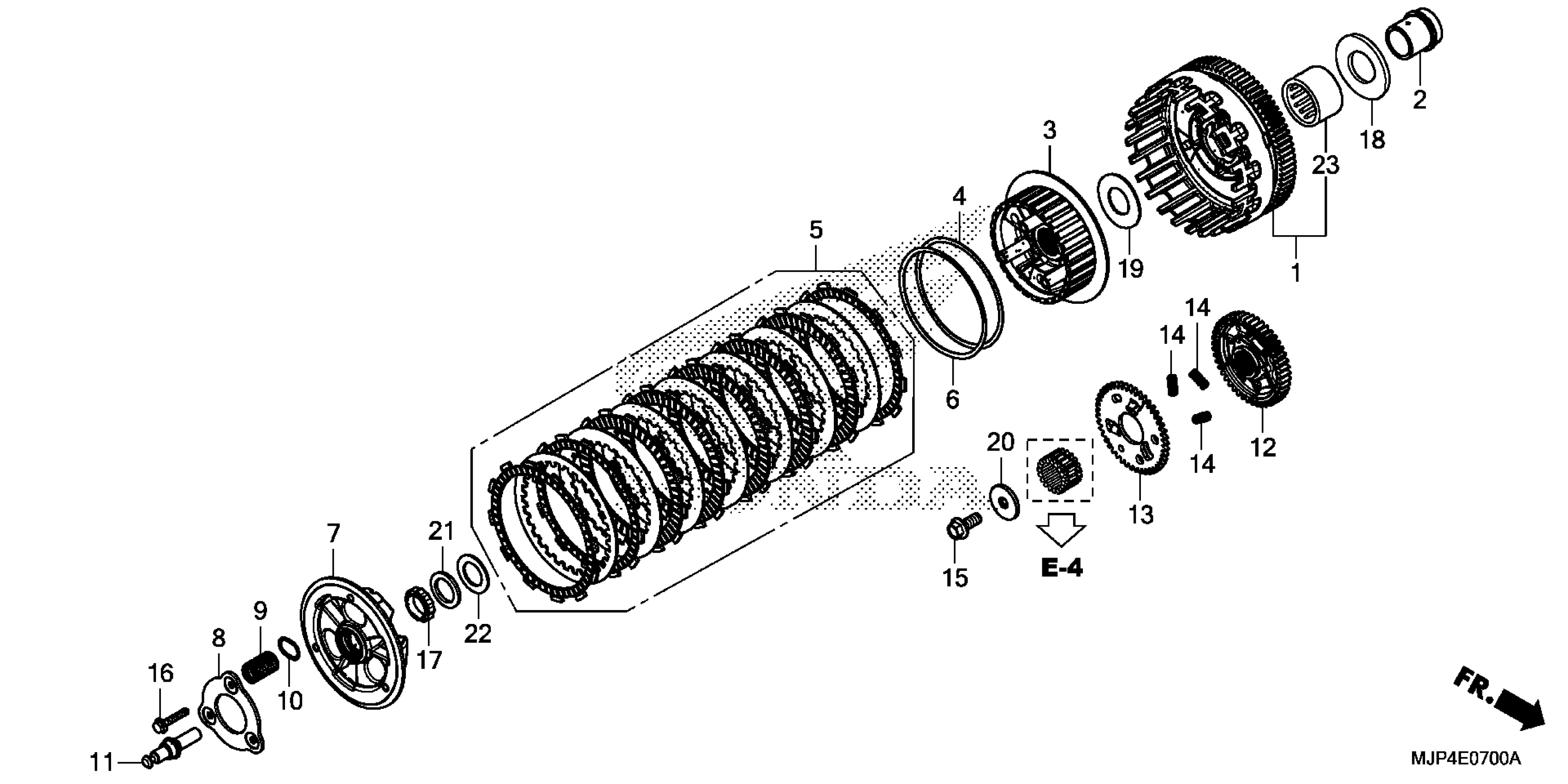

Honda CRF1000A2AC (17) MOTORCYCLE, JPN, VIN# JH2SD04G-HK000001 CLUTCH (1) Diagram
