Description

Price

1

MAINSHAFT (15T)

23211-MJP-G50

$168.79

2

PLATE, BEARING SETTING

23213-HL4-000

$5.62

3

COUNTERSHAFT

23220-MJP-G50

$181.31

4

GEAR, COUNTERSHAFT FIRST (43T)

23421-MJP-G50

$122.67

5

GEAR, MAINSHAFT SECOND (18T)

23431-MJP-G50

$56.90

6

GEAR, COUNTERSHAFT SECOND (34T)

23441-MJP-G50

$112.75

7

COLLAR (30X11.2)

23442-MS2-610

$23.74

8

GEAR, MAINSHAFT THIRD & FOURTH (25T/26T)

23451-MJP-G50

$140.85

9

GEAR, COUNTERSHAFT THIRD (37T)

23461-MJP-G50

$117.23

10

COLLAR, SPLINE (30X11)

23462-MAT-000

$23.00

11

COLLAR (30X36X9.4)

23463-MJP-G50

$5.80

12

GEAR, COUNTERSHAFT FOURTH (32T)

23481-MJP-G50

$112.75

13

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$30.92

14

GEAR, MAINSHAFT FIFTH (30T)

23491-MJP-G50

$114.49

15

COLLAR (22X13)

23495-KY1-000

$20.90

16

COLLAR (28X13)

23495-MM5-000

$23.00

17

GEAR, COUNTERSHAFT FIFTH (33T)

23501-MJP-G50

$126.33

18

GEAR, MAINSHAFT SIXTH (32T)

23511-MJP-G50

$114.49

19

GEAR, COUNTERSHAFT SIXTH (31T)

23521-MJP-G50

$126.33

20

SPROCKET, DRIVE (16T)

23801-MEE-D00

$57.74

21

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

22

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

23

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

24

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

25

WASHER (22X32X1.5)

90453-KSR-A00

$2.54

26

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

27

WASHER, THRUST (28MM)

90458-729-920

$5.34

28

WASHER (10.2MM)

90459-438-000

$5.83

29

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

30

WASHER, SPLINE (28MM)

90463-MCJ-000

$5.56

31

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

32

WASHER, LOCK (28MM)

90464-MCJ-000

$5.56

33

CIRCLIP (28MM)

90603-MN4-000

$4.11

34

CIRCLIP (30MM)

90604-MM5-000

$4.48

35

BEARING, SPECIAL BALL (28X76X18)

91001-MJP-G51

$60.34

36

BEARING, RADIAL BALL (63/22U) (KOYO)

91002-MCH-003

$27.52

37

BEARING, NEEDLE (22MM)

91023-MM5-641

$27.05

38

OIL SEAL (39X72X8) This part replaces 91207-MBB-003.

91207-MBB-013

$12.82

39

RING, SNAP (72MM)

94560-72200

$3.74

40

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

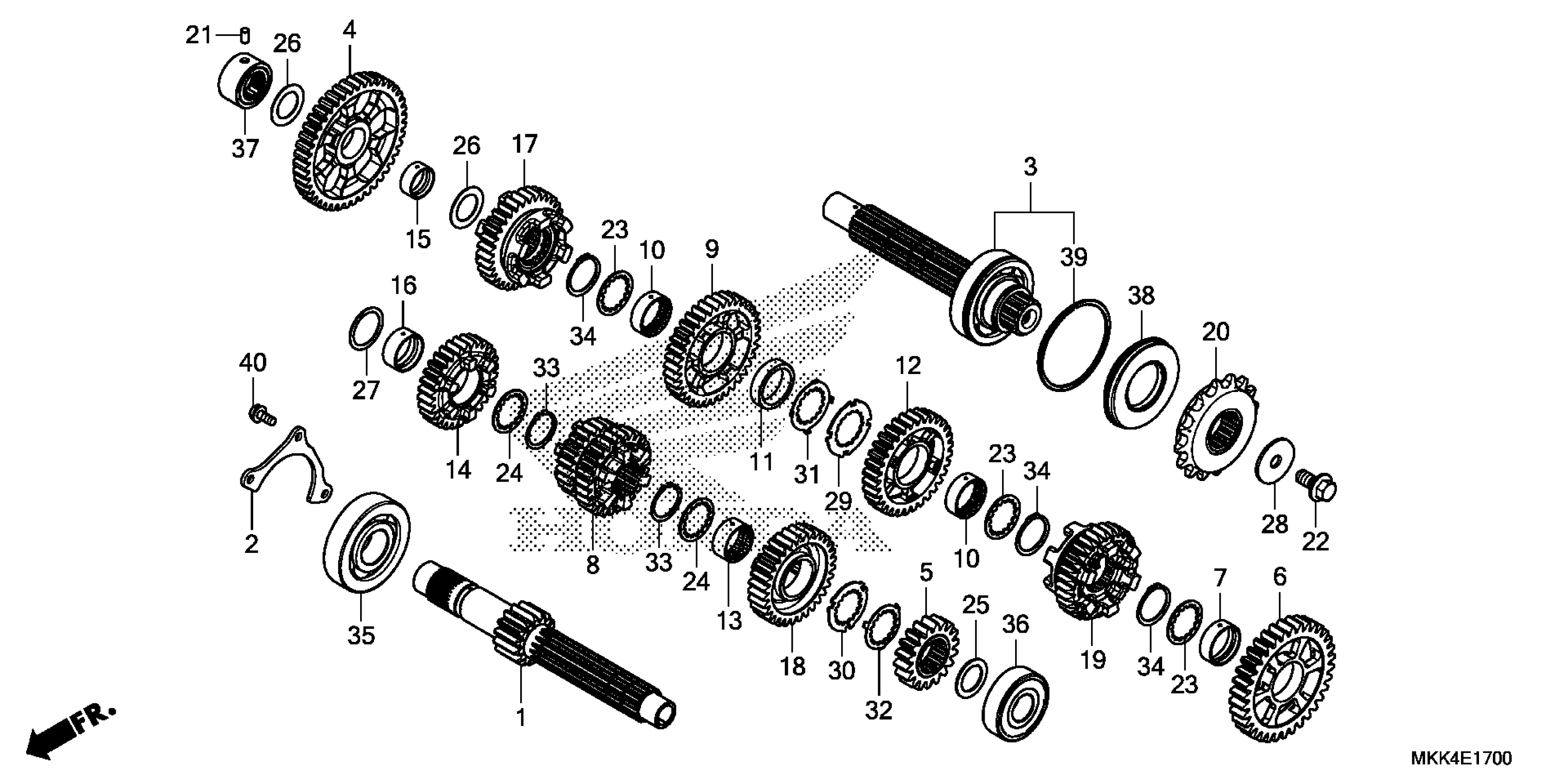

Honda CRF1000A24AC (19) MOTORCYCLE, JPN, VIN# JH2SD044-KK300001 TRANSMISSION Diagram
