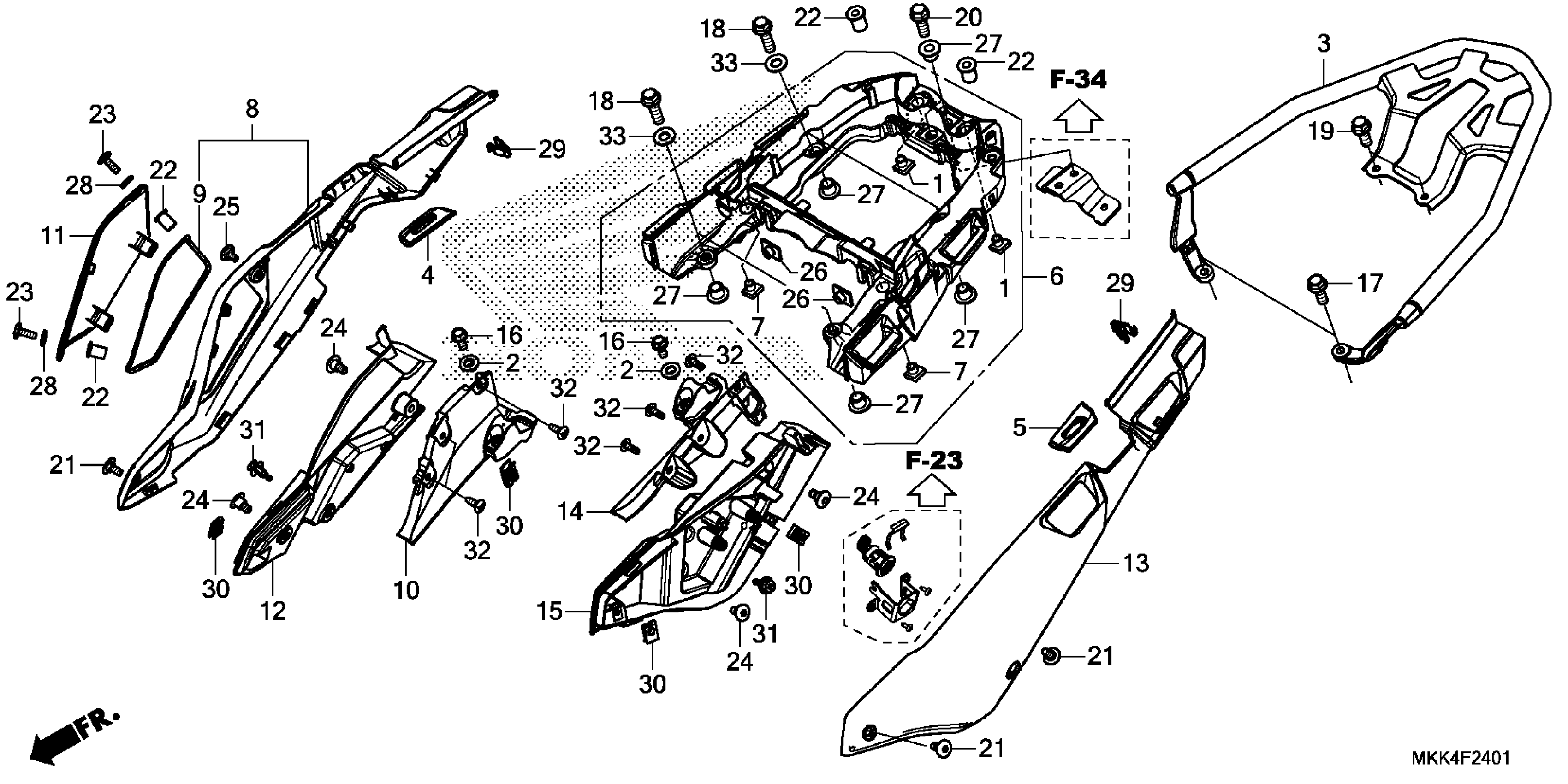

Honda CRF1000A24AC (19) MOTORCYCLE, JPN, VIN# JH2SD044-KK300001 SIDE COVER@REAR CARRIER (2) Diagram

#

Description
Price

1

NUT, RR. CARRIER (8MM)

61304-MGH-640

$6.46

2

COLLAR, FENDER

80118-MFJ-D00

$4.15

3

CARRIER, RR.

81210-MKK-D20

$736.30

4

RUB, R. RR. CARRIER

81302-MKK-D20

$9.87

5

RUB, L. RR. CARRIER

81307-MKK-D20

$9.87

6

BRACKET, RR. CARRIER

81350-MKK-D20

$353.48

7

NUT, RR. (8MM)

81351-MKK-D20

$7.38

8

COWL SET, R. RR. SIDE (TYPE2) (WL)

83600-MKK-DW0ZA

$190.52

9

SEAL, LID

83615-MKK-D20

$5.20

10

BODY A, R. RR. SIDE

83620-MKK-D20

$9.44

11

LID SET, R. RR. SIDE (TYPE2) (WL)

83630-MKK-DW0ZA

$77.54

12

BODY B, R. RR. SIDE

83640-MKK-D20

$18.05

13

COWL SET, L. RR. SIDE (TYPE2) (WL)

83710-MKK-DW0ZA

$286.26

14

BODY A, L. RR. SIDE

83720-MKK-D20

$9.44

15

BODY B, L. RR. SIDE

83740-MKK-D20

$18.05

16

BOLT, FLANGE (6X14)

90030-GHB-630

$2.23

17

BOLT, FLANGE (8X20)

90035-GHB-660

$2.23

18

BOLT, FLANGE (8X28)

90035-GHB-690

$2.33

19

BOLT, FLANGE (8X16)

90036-GHB-640

$2.26

20

BOLT, FLANGE (8X22)

90036-GHB-670

$2.23

21

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.67

22

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

23

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

24

SCREW, SPECIAL (6X14)

90114-KWL-000

$2.48

25

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.48

26

NUT, SPECIAL (6X7)

90303-HA0-680

$3.85

27

COLLAR (8MM)

90450-KG8-000

$4.76

28

WASHER, THRUST (5MM)

90504-964-000

$1.90

29

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$1.49

30

NUT, CLIP (5MM)

90677-KAN-961

$4.07

31

CLIP, BODY

90683-MBW-003

$2.16

32

SCREW, TAPPING (4X12)

93903-34380

$2.18

33

WASHER, PLAIN (8MM)

94101-08800

$1.93
