Description

Price

1

PAN, OIL

11210-MKK-D00

$289.16

2

GASKET, OIL PAN

11395-MJP-G51

$49.97

3

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

3

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30

4

PUMP ASSY., OIL

15100-MJP-G51

$231.33

7

GEAR, OIL PUMP DRIVEN (21T) | Use up to Engine SN 5203214.

15130-MJP-G50

$79.00

7

GEAR, OIL PUMP DRIVEN (21T) | Use from Engine SN 5203215.

15130-MJP-G51

$79.00

8

PLATE, OIL PUMP DRIVEN GEAR SHAFT

15136-MJP-G50

$2.92

9

STRAINER, OIL

15150-MJP-G50

$37.57

10

GASKET, OIL STRAINER

15154-MAT-000

$6.16

11

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

11

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

12

SCREEN, OIL FILTER

15421-MJP-G50

$10.05

13

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

14

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

15

BOLT, SPECIAL (6X32)

90022-MJP-G50

$2.11

16

BOLT, SPECIAL (6MM)

90103-MEN-710

$1.90

17

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

17

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

18

WASHER (12X21X1.0)

90406-MJP-G50

$2.95

19

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

22

O-RING (21.5X2.9)

91352-MGE-003

$1.93

23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

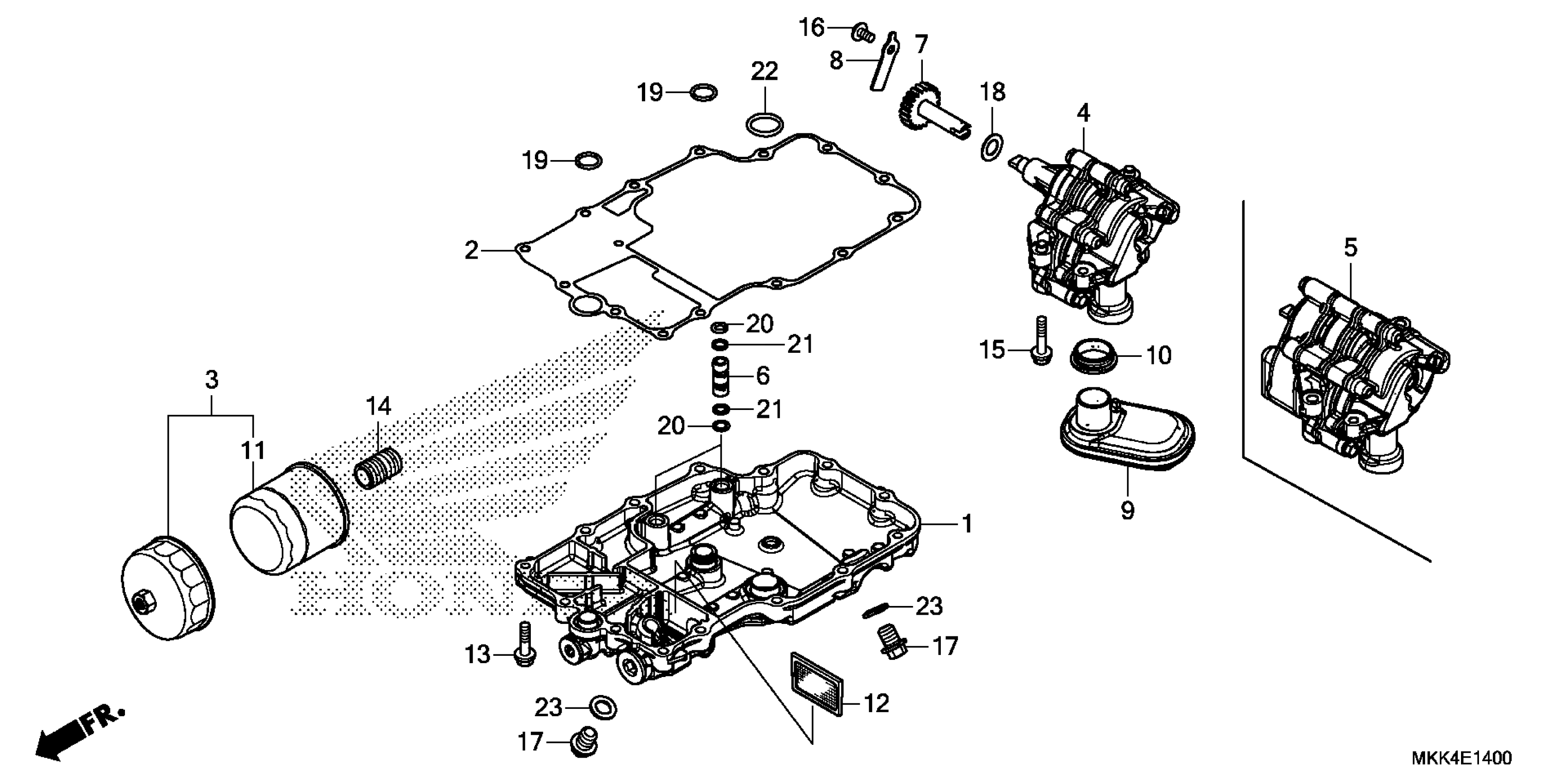

Honda CRF1000A24AC (19) MOTORCYCLE, JPN, VIN# JH2SD044-KK300001 OIL PAN@OIL PUMP Diagram
